OEM#: MSF-64New OEM Original Outright

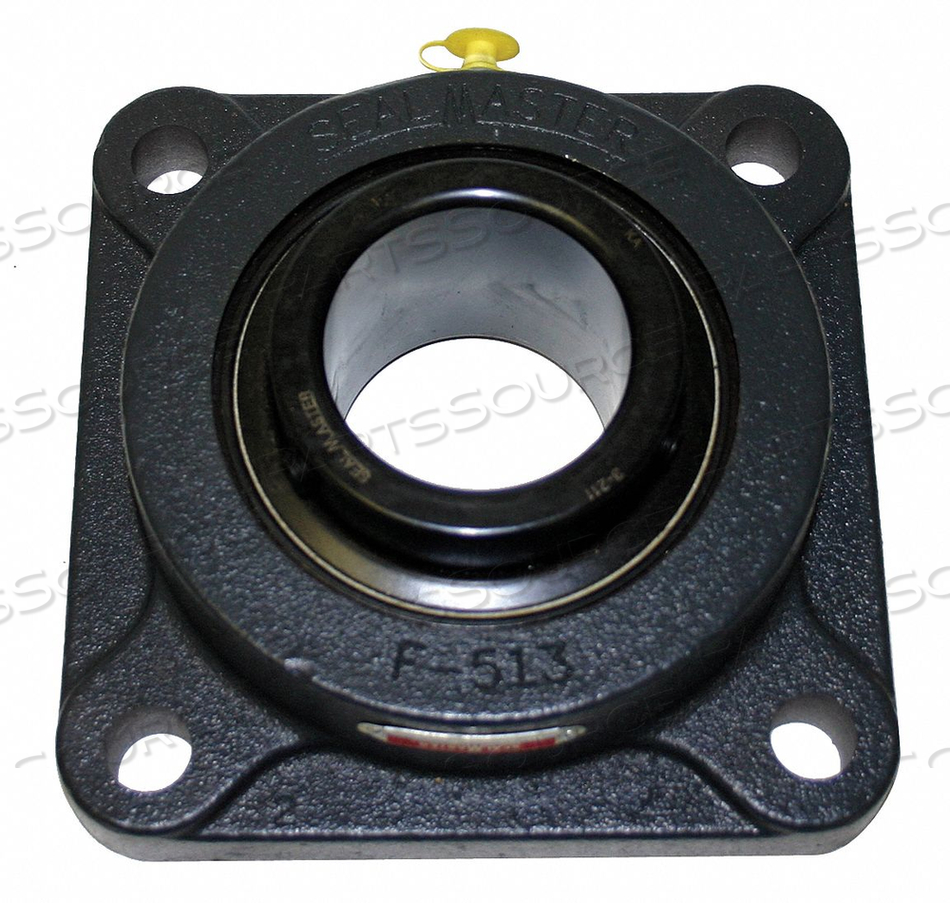

FLANGE BEARING 4-BOLT BALL 4 BORE by Sealmaster

Your price:
$4,763.05 eachEstimated to ship by 04/18 if ordered before 1:30 PM EST
HomeSealmastermsf64
FLANGE BEARING 4-BOLT BALL 4 BORE by Sealmaster
FLANGE BEARING 4-BOLT BALL 4 BORE by Sealmaster

OEM#: MSF-64
FLANGE BEARING 4-BOLT BALL 4 BORE by Sealmaster

New OEM Original Outright
Your price:
$4,763.05 each
Estimated to ship by 04/18 if ordered before 1:30 PM EST
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: MSF-64 Key Specs
Item
FLANGE BEARING 4-BOLT BALL 4 BORE
OEM
Sealmaster
OEM #
MSF-64
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Housing Material Type
Cast Iron
Bearing Insert Material
52100 Chrome Steel
Bearing Insert Type
Ball
Bearing Lubrication
Sealmaster GoldPlex-HP or NLGI #2 Equivalent
Bolt Hole Center-to-Center
8 5/16 in
Bolt Size
1 in
Bore Dia.
4 in
Dimension A
10 9/16 in
Dimension B
8 5/16 in
Dimension C
1 1/4 in
Dimension D
3 13/16 in
Dimension E
5 in
Dimension F
1 1/32 in
Dimension G
1 3/16 in
Dimension H
6 in
Dimension J
9 1/4 in
Dimension L
6 11/32 in
Dimension M
2 11/16 in
Dimension N
2 7/8 in
Dynamic Load Capacity
29,905 lb
Finish
Black Oxide
Mounted Bearing Item
4-Bolt Flange Bearing
Overall Height
10 9/16 in
Overall Length
10 9/16 in
Overall Width
5 in
Series
MSF
Shaft Locking Type
Set Screw
Static Load Capacity
23,553 lb
Temp. Range
-20 Degrees to 220 Degrees F
Technical Specs
P/N: MSF-64 Key Specs
Item
FLANGE BEARING 4-BOLT BALL 4 BORE
OEM
Sealmaster
OEM #
MSF-64
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Housing Material Type
Cast Iron
Bearing Insert Material
52100 Chrome Steel
Bearing Insert Type
Ball
Bearing Lubrication
Sealmaster GoldPlex-HP or NLGI #2 Equivalent
Bolt Hole Center-to-Center
8 5/16 in
Bolt Size
1 in
Bore Dia.
4 in
Dimension A
10 9/16 in
Dimension B
8 5/16 in
Dimension C
1 1/4 in
Dimension D
3 13/16 in
Dimension E
5 in
Dimension F
1 1/32 in
Dimension G
1 3/16 in
Dimension H
6 in
Dimension J
9 1/4 in
Dimension L
6 11/32 in
Dimension M
2 11/16 in
Dimension N
2 7/8 in
Dynamic Load Capacity
29,905 lb
Finish
Black Oxide
Mounted Bearing Item
4-Bolt Flange Bearing
Overall Height
10 9/16 in
Overall Length
10 9/16 in
Overall Width
5 in
Series
MSF
Shaft Locking Type
Set Screw
Static Load Capacity
23,553 lb
Temp. Range
-20 Degrees to 220 Degrees F
Technical Specs
P/N: MSF-64 Key Specs
Item
FLANGE BEARING 4-BOLT BALL 4 BORE
OEM
Sealmaster
OEM #
MSF-64
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Housing Material Type
Cast Iron
Bearing Insert Material
52100 Chrome Steel
Bearing Insert Type
Ball
Bearing Lubrication
Sealmaster GoldPlex-HP or NLGI #2 Equivalent
Bolt Hole Center-to-Center
8 5/16 in
Bolt Size
1 in
Bore Dia.
4 in
Dimension A
10 9/16 in
Dimension B
8 5/16 in
Dimension C
1 1/4 in
Dimension D
3 13/16 in
Dimension E
5 in
Dimension F
1 1/32 in
Dimension G
1 3/16 in
Dimension H
6 in
Dimension J
9 1/4 in
Dimension L
6 11/32 in
Dimension M
2 11/16 in
Dimension N
2 7/8 in
Dynamic Load Capacity
29,905 lb
Finish
Black Oxide
Mounted Bearing Item
4-Bolt Flange Bearing
Overall Height
10 9/16 in
Overall Length
10 9/16 in
Overall Width
5 in
Series
MSF
Shaft Locking Type
Set Screw
Static Load Capacity
23,553 lb
Temp. Range
-20 Degrees to 220 Degrees F
