OEM#: SF-38New OEM Original Outright

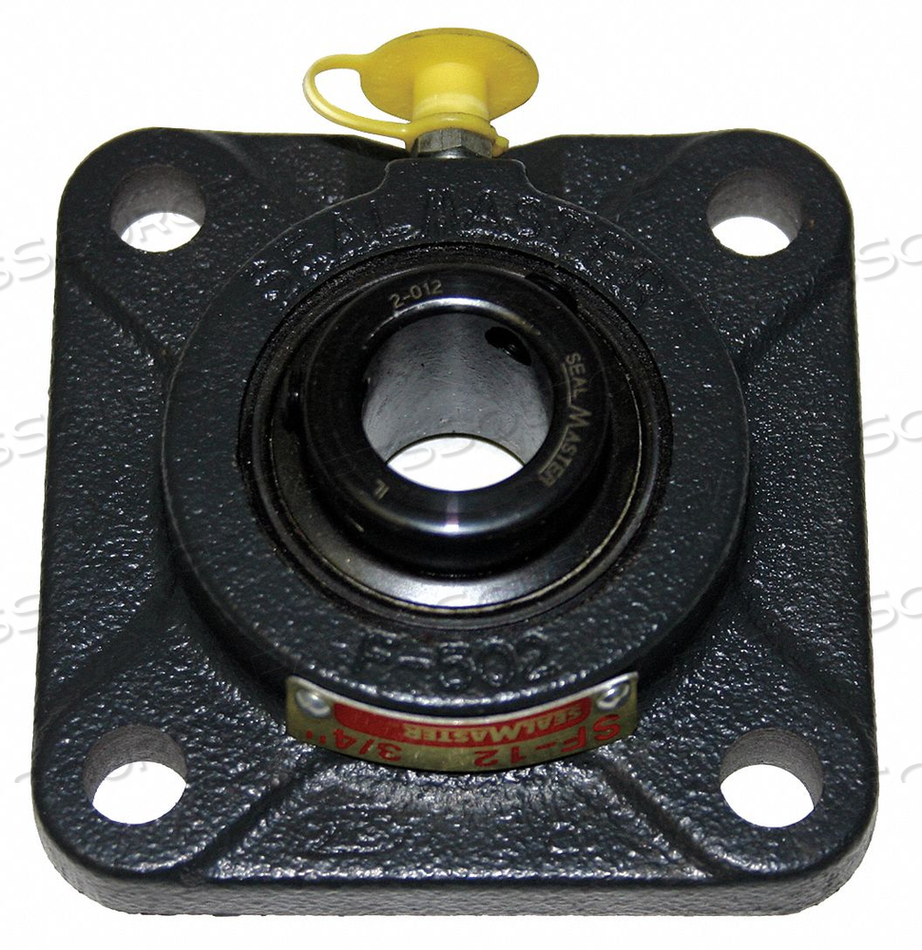

FLANGE BEARING 4-BOLT BALL 2-3/8 BORE by Sealmaster

Your price:
$1,148.13 eachEstimated to ship by 04/10 if ordered before 1:30 PM EST
HomeSealmastersf38
FLANGE BEARING 4-BOLT BALL 2-3/8 BORE by Sealmaster
FLANGE BEARING 4-BOLT BALL 2-3/8 BORE by Sealmaster

OEM#: SF-38
FLANGE BEARING 4-BOLT BALL 2-3/8 BORE by Sealmaster

New OEM Original Outright
Your price:
$1,148.13 each
Estimated to ship by 04/10 if ordered before 1:30 PM EST
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: SF-38 Key Specs
Item
FLANGE BEARING 4-BOLT BALL 2-3/8 BORE
OEM
Sealmaster
OEM #
SF-38
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Housing Material Type
Cast Iron
Bearing Insert Material
52100 Chrome Steel
Bearing Insert Type
Ball
Bearing Lubrication
Sealmaster GoldPlex-HP or NLGI #2 Equivalent
Bolt Hole Center-to-Center
5 5/8 in
Bolt Size
5/8 in
Bore Dia.
2 3/8 in
Dimension A
6 7/8 in
Dimension B
5 5/8 in
Dimension C
13/16 in
Dimension D
1 15/16 in
Dimension E
2 11/16 in
Dimension F
21/32 in
Dimension G
3/4 in
Dimension H
3 in
Dimension J
5 7/16 in
Dimension L
3 7/16 in
Dimension M
1 9/16 in
Dimension N
1 in
Dynamic Load Capacity
11,789 lb
Finish
Black Oxide
Mounted Bearing Item
4-Bolt Flange Bearing
Overall Height
6 7/8 in
Overall Length
6 7/8 in
Overall Width
2 11/16 in
Series
SF
Shaft Locking Type
Set Screw
Static Load Capacity
8,150 lb
Temp. Range
-20 Degrees to 220 Degrees F
Technical Specs
P/N: SF-38 Key Specs
Item
FLANGE BEARING 4-BOLT BALL 2-3/8 BORE
OEM
Sealmaster
OEM #
SF-38
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Housing Material Type
Cast Iron
Bearing Insert Material
52100 Chrome Steel
Bearing Insert Type
Ball
Bearing Lubrication
Sealmaster GoldPlex-HP or NLGI #2 Equivalent
Bolt Hole Center-to-Center
5 5/8 in
Bolt Size
5/8 in
Bore Dia.
2 3/8 in
Dimension A
6 7/8 in
Dimension B
5 5/8 in
Dimension C
13/16 in
Dimension D
1 15/16 in
Dimension E
2 11/16 in
Dimension F
21/32 in
Dimension G
3/4 in
Dimension H
3 in
Dimension J
5 7/16 in
Dimension L
3 7/16 in
Dimension M
1 9/16 in
Dimension N
1 in
Dynamic Load Capacity
11,789 lb
Finish
Black Oxide
Mounted Bearing Item
4-Bolt Flange Bearing
Overall Height
6 7/8 in
Overall Length
6 7/8 in
Overall Width
2 11/16 in
Series
SF
Shaft Locking Type
Set Screw
Static Load Capacity
8,150 lb
Temp. Range
-20 Degrees to 220 Degrees F
Technical Specs
P/N: SF-38 Key Specs
Item
FLANGE BEARING 4-BOLT BALL 2-3/8 BORE
OEM
Sealmaster
OEM #
SF-38
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Housing Material Type
Cast Iron
Bearing Insert Material
52100 Chrome Steel
Bearing Insert Type
Ball
Bearing Lubrication
Sealmaster GoldPlex-HP or NLGI #2 Equivalent
Bolt Hole Center-to-Center
5 5/8 in
Bolt Size
5/8 in
Bore Dia.
2 3/8 in
Dimension A
6 7/8 in
Dimension B
5 5/8 in
Dimension C
13/16 in
Dimension D
1 15/16 in
Dimension E
2 11/16 in
Dimension F
21/32 in
Dimension G
3/4 in
Dimension H
3 in
Dimension J
5 7/16 in
Dimension L
3 7/16 in
Dimension M
1 9/16 in
Dimension N
1 in
Dynamic Load Capacity
11,789 lb
Finish
Black Oxide
Mounted Bearing Item
4-Bolt Flange Bearing
Overall Height
6 7/8 in
Overall Length
6 7/8 in
Overall Width
2 11/16 in
Series
SF
Shaft Locking Type
Set Screw
Static Load Capacity
8,150 lb
Temp. Range
-20 Degrees to 220 Degrees F
