OEM#: SF-28New OEM Original Outright

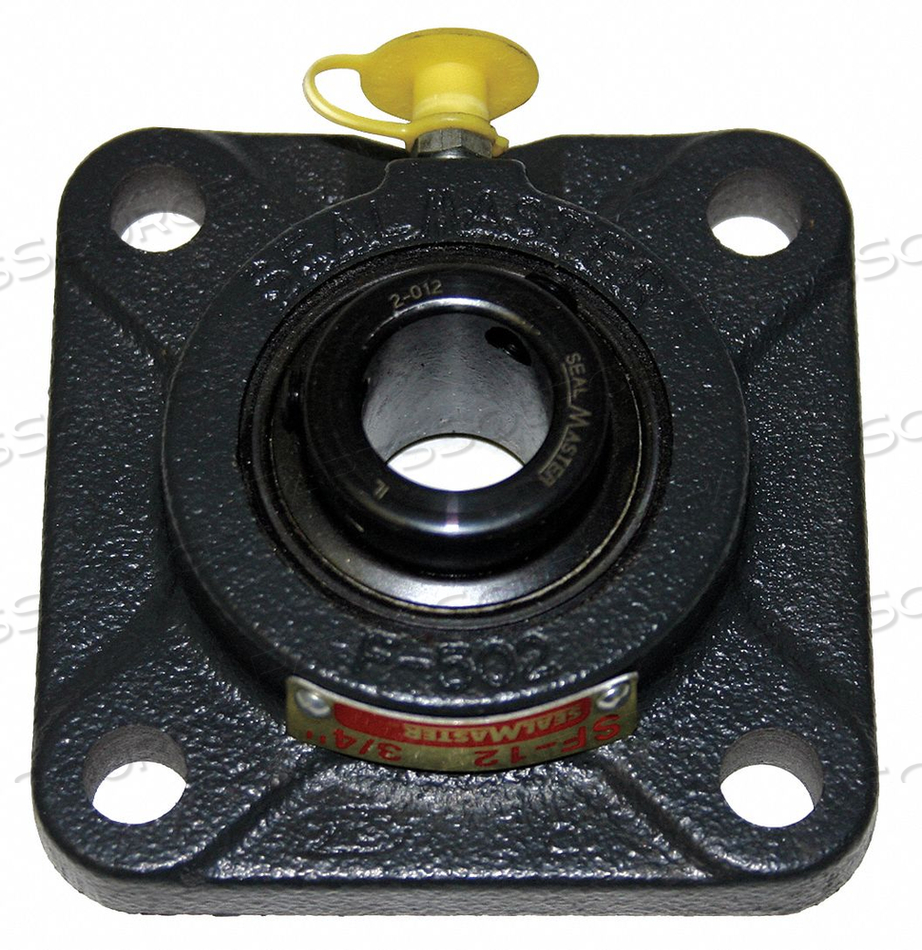

FLANGE BEARING 4-BOLT BALL 1-3/4 BORE by Sealmaster

Your price:
$387.49 eachEstimated to ship by 10/29 if ordered before 4:30 PM EST
HomeSealmastersf28
FLANGE BEARING 4-BOLT BALL 1-3/4 BORE by Sealmaster
FLANGE BEARING 4-BOLT BALL 1-3/4 BORE by Sealmaster

OEM#: SF-28
FLANGE BEARING 4-BOLT BALL 1-3/4 BORE by Sealmaster

New OEM Original Outright
Your price:
$387.49 each
Estimated to ship by 10/29 if ordered before 4:30 PM EST
Asset Information
ADD TO LIST
Technical Specs
P/N: SF-28 Key Specs
Item
FLANGE BEARING 4-BOLT BALL 1-3/4 BORE
OEM
Sealmaster
OEM #
SF-28
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Housing Material Type
Cast Iron
Bearing Insert Material
52100 Chrome Steel
Bearing Insert Type
Ball
Bearing Lubrication
Sealmaster GoldPlex-HP or NLGI #2 Equivalent
Bolt Hole Center-to-Center
4 1/8 in
Bolt Size
9/16 in
Bore Dia.
1 3/4 in
Dimension A
5 3/8 in
Dimension B
4 1/8 in
Dimension C
9/16 in
Dimension D
1 9/16 in
Dimension E
2 3/64 in
Dimension F
19/32 in
Dimension G
31/64 in
Dimension H
2 3/64 in
Dimension J
4 21/64 in
Dimension L
2 19/64 in
Dimension M
1 3/16 in
Dimension N
3/4 in
Dynamic Load Capacity
7,901 lb
Finish
Black Oxide
Mounted Bearing Item
4-Bolt Flange Bearing
Overall Height
5 3/8 in
Overall Length
5 3/8 in
Overall Width
2 3/64 in
Series
SF
Shaft Locking Type
Set Screw
Static Load Capacity
5,139 lb
Temp. Range
-20 Degrees to 220 Degrees F
