OEM#: SF-25New OEM Original Outright

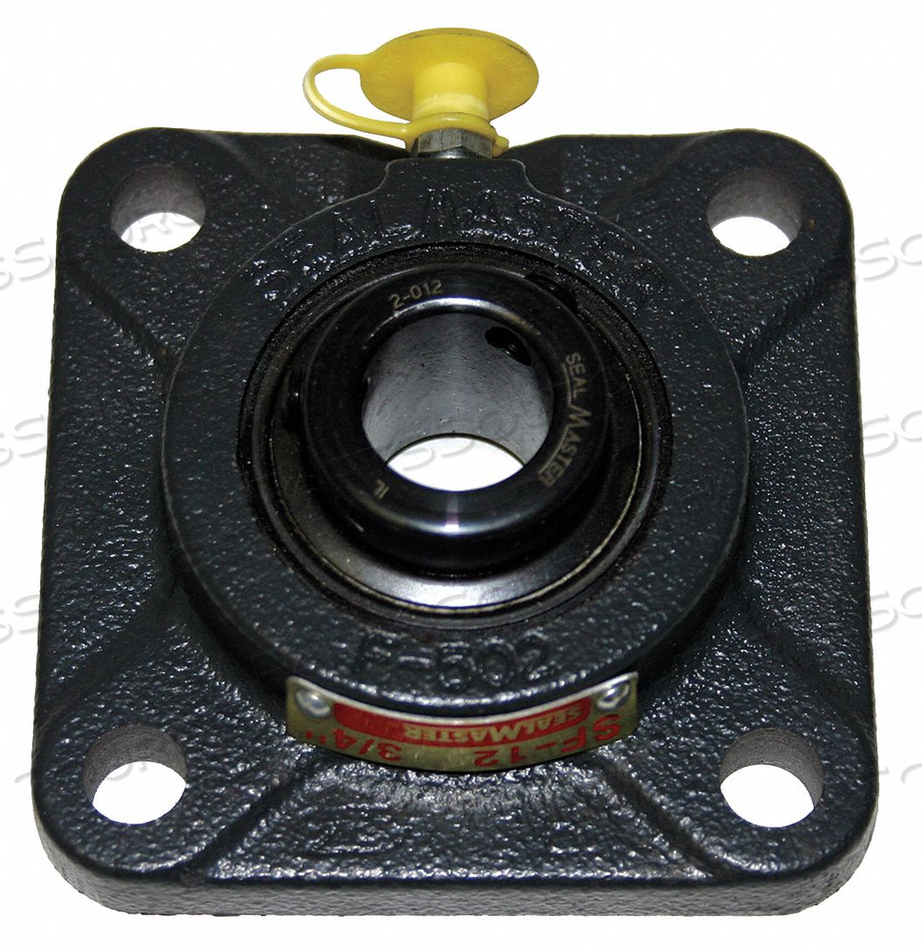

FLANGE BEARING 4-BOLT BALL 1-9/16 BORE by Sealmaster

Your price:
$660.98 eachEstimated to ship by 04/10 if ordered before 1:30 PM EST
HomeSealmastersf25
FLANGE BEARING 4-BOLT BALL 1-9/16 BORE by Sealmaster
FLANGE BEARING 4-BOLT BALL 1-9/16 BORE by Sealmaster

OEM#: SF-25
FLANGE BEARING 4-BOLT BALL 1-9/16 BORE by Sealmaster

New OEM Original Outright
Your price:
$660.98 each
Estimated to ship by 04/10 if ordered before 1:30 PM EST
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: SF-25 Key Specs
Item
FLANGE BEARING 4-BOLT BALL 1-9/16 BORE
OEM
Sealmaster
OEM #
SF-25
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Housing Material Type
Cast Iron
Bearing Insert Material
52100 Chrome Steel
Bearing Insert Type
Ball
Bearing Lubrication
Sealmaster GoldPlex-HP or NLGI #2 Equivalent
Bolt Hole Center-to-Center
4 in
Bolt Size
1/2 in
Bore Dia.
1 9/16 in
Dimension A
5 1/8 in
Dimension B
4 in
Dimension C
9/16 in
Dimension D
1 1/2 in
Dimension E
2 1/64 in
Dimension F
17/32 in
Dimension G
33/64 in
Dimension H
2 1/64 in
Dimension J
4 5/64 in
Dimension L
2 1/16 in
Dimension M
1 3/16 in
Dynamic Load Capacity
7,340 lb
Finish
Black Oxide
Mounted Bearing Item
4-Bolt Flange Bearing
Overall Height
5 1/8 in
Overall Length
5 1/8 in
Overall Width
2 1/64 in
Series
SF
Shaft Locking Type
Set Screw
Static Load Capacity
4,467 lb
Temp. Range
-20 Degrees to 220 Degrees F
Technical Specs
P/N: SF-25 Key Specs
Item
FLANGE BEARING 4-BOLT BALL 1-9/16 BORE
OEM
Sealmaster
OEM #
SF-25
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Housing Material Type
Cast Iron
Bearing Insert Material
52100 Chrome Steel
Bearing Insert Type
Ball
Bearing Lubrication
Sealmaster GoldPlex-HP or NLGI #2 Equivalent
Bolt Hole Center-to-Center
4 in
Bolt Size
1/2 in
Bore Dia.
1 9/16 in
Dimension A
5 1/8 in
Dimension B
4 in
Dimension C
9/16 in
Dimension D
1 1/2 in
Dimension E
2 1/64 in
Dimension F
17/32 in
Dimension G
33/64 in
Dimension H
2 1/64 in
Dimension J
4 5/64 in
Dimension L
2 1/16 in
Dimension M
1 3/16 in
Dynamic Load Capacity
7,340 lb
Finish
Black Oxide
Mounted Bearing Item
4-Bolt Flange Bearing
Overall Height
5 1/8 in
Overall Length
5 1/8 in
Overall Width
2 1/64 in
Series
SF
Shaft Locking Type
Set Screw
Static Load Capacity
4,467 lb
Temp. Range
-20 Degrees to 220 Degrees F
Technical Specs
P/N: SF-25 Key Specs
Item
FLANGE BEARING 4-BOLT BALL 1-9/16 BORE
OEM
Sealmaster
OEM #
SF-25
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Housing Material Type
Cast Iron
Bearing Insert Material
52100 Chrome Steel
Bearing Insert Type
Ball
Bearing Lubrication
Sealmaster GoldPlex-HP or NLGI #2 Equivalent
Bolt Hole Center-to-Center
4 in
Bolt Size
1/2 in
Bore Dia.
1 9/16 in
Dimension A
5 1/8 in
Dimension B
4 in
Dimension C
9/16 in
Dimension D
1 1/2 in
Dimension E
2 1/64 in
Dimension F
17/32 in
Dimension G
33/64 in
Dimension H
2 1/64 in
Dimension J
4 5/64 in
Dimension L
2 1/16 in
Dimension M
1 3/16 in
Dynamic Load Capacity
7,340 lb
Finish
Black Oxide
Mounted Bearing Item
4-Bolt Flange Bearing
Overall Height
5 1/8 in
Overall Length
5 1/8 in
Overall Width
2 1/64 in
Series
SF
Shaft Locking Type
Set Screw
Static Load Capacity
4,467 lb
Temp. Range
-20 Degrees to 220 Degrees F
