OEM#: L3500New OEM Original Outright

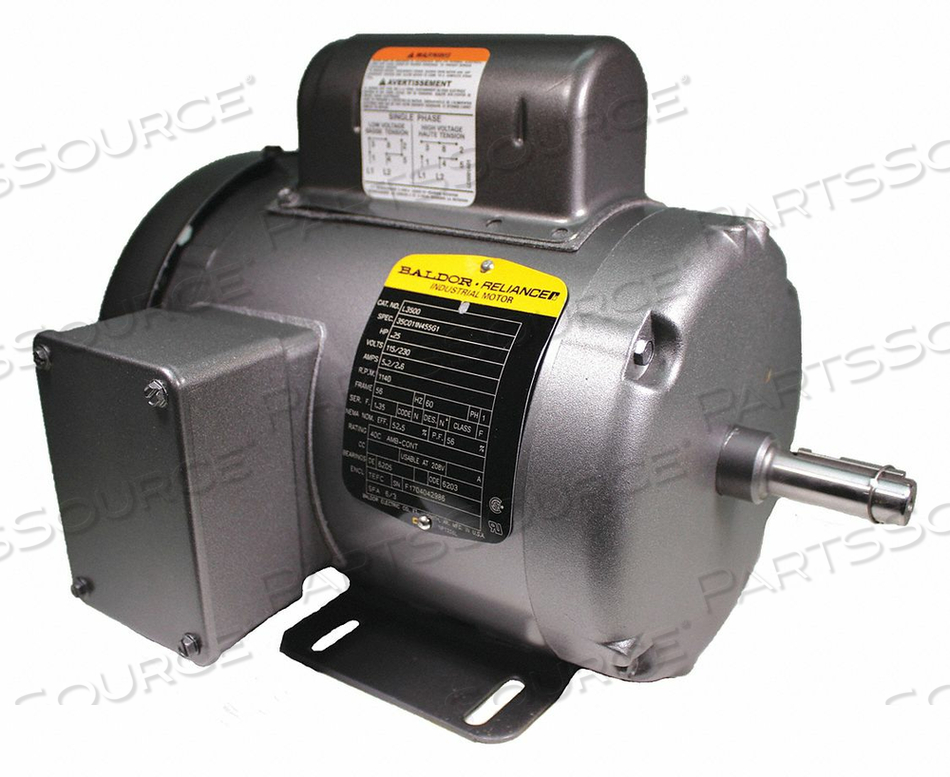

MOTOR 1/4 HP 1140 RPM 115/230V 56 TEFC by BALDOR

Your price:
$997.01 eachEstimated to ship by 04/16 if ordered before 1:30 PM EST
HomeBALDORl3500
MOTOR 1/4 HP 1140 RPM 115/230V 56 TEFC by BALDOR
MOTOR 1/4 HP 1140 RPM 115/230V 56 TEFC by BALDOR

OEM#: L3500
MOTOR 1/4 HP 1140 RPM 115/230V 56 TEFC by BALDOR

New OEM Original Outright
Your price:
$997.01 each
Ready to shipReady to Ship
Estimated to ship by 04/16 if ordered before 1:30 PM EST
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: L3500 Key Specs
Item
MOTOR 1/4 HP 1140 RPM 115/230V 56 TEFC
OEM
BALDOR
OEM #
L3500
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC031A
Country of Origin
USA
Duty
Continuous
Frame
56
Full Load Amps
5.2/2.6
HP
1/4 hp
Hz
60
Includes
Conduit Box
Ins. Class
B
Length Less Shaft
10-3/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
Capacitor-Start
Motor Efficiency Group
Energy Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Rolled Steel
Motor Mounting Type
Rigid Base
Motor Service Factor
1.35
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1140
Nominal Efficiency
52.5 %
Number of Speeds
1
Overall Length
12-1/4 in
Phase
1
RPM Group
1101-1200
RPM Range
1101-1200
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
CSA, UL
Voltage
115/230
Technical Specs
P/N: L3500 Key Specs
Item
MOTOR 1/4 HP 1140 RPM 115/230V 56 TEFC
OEM
BALDOR
OEM #
L3500
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC031A
Country of Origin
USA
Duty
Continuous
Frame
56
Full Load Amps
5.2/2.6
HP
1/4 hp
Hz
60
Includes
Conduit Box
Ins. Class
B
Length Less Shaft
10-3/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
Capacitor-Start
Motor Efficiency Group
Energy Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Rolled Steel
Motor Mounting Type
Rigid Base
Motor Service Factor
1.35
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1140
Nominal Efficiency
52.5 %
Number of Speeds
1
Overall Length
12-1/4 in
Phase
1
RPM Group
1101-1200
RPM Range
1101-1200
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
CSA, UL
Voltage
115/230
Technical Specs
P/N: L3500 Key Specs
Item
MOTOR 1/4 HP 1140 RPM 115/230V 56 TEFC
OEM
BALDOR
OEM #
L3500
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC031A
Country of Origin
USA
Duty
Continuous
Frame
56
Full Load Amps
5.2/2.6
HP
1/4 hp
Hz
60
Includes
Conduit Box
Ins. Class
B
Length Less Shaft
10-3/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
Capacitor-Start
Motor Efficiency Group
Energy Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Rolled Steel
Motor Mounting Type
Rigid Base
Motor Service Factor
1.35
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1140
Nominal Efficiency
52.5 %
Number of Speeds
1
Overall Length
12-1/4 in
Phase
1
RPM Group
1101-1200
RPM Range
1101-1200
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
CSA, UL
Voltage
115/230
