OEM#: L3356New OEM Original Outright

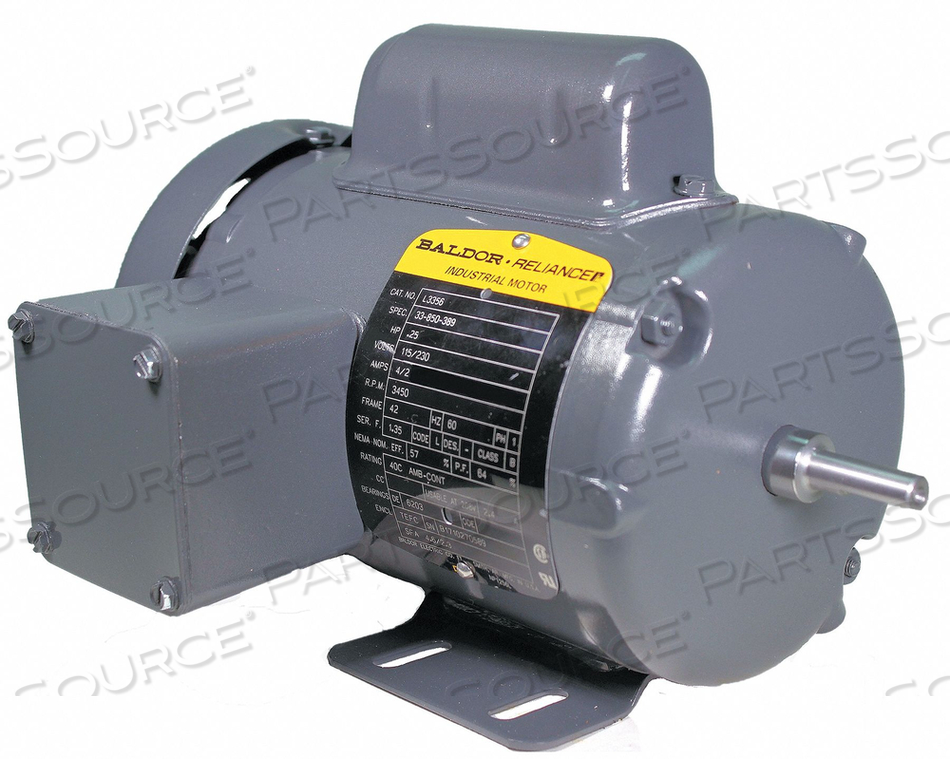

MOTOR 1/4 HP 3450 RPM 115/230V 42 TEFC by BALDOR
Your price:
$752.32 each
OEM#: L3356MOTOR 1/4 HP 3450 RPM 115/230V 42 TEFC by BALDOR
New OEM Original Outright
Your price:
$752.32 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: L3356 Key Specs
Item
MOTOR 1/4 HP 3450 RPM 115/230V 42 TEFC
OEM
BALDOR
OEM #
L3356
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC031A
Country of Origin
USA
Duty
Continuous
Frame
42
Full Load Amps
4/2
HP
1/4 hp
Hz
60
Includes
Conduit Box
Ins. Class
B
Length Less Shaft
8-1/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
Capacitor-Start
Motor Efficiency Group
Energy Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Rolled Steel
Motor Mounting Type
Rigid Base
Motor Service Factor
1.35
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
3450
Nominal Efficiency
57 %
Number of Speeds
1
Overall Length
9-1/2 in
Phase
1
RPM Group
3001-3600
RPM Range
3001-3600
Shaft Diameter
3/8 in
Shaft Length
1-1/8 in
Standards
CSA, UL
Voltage
115/230
