OEM#: F344V1New OEM Original Outright

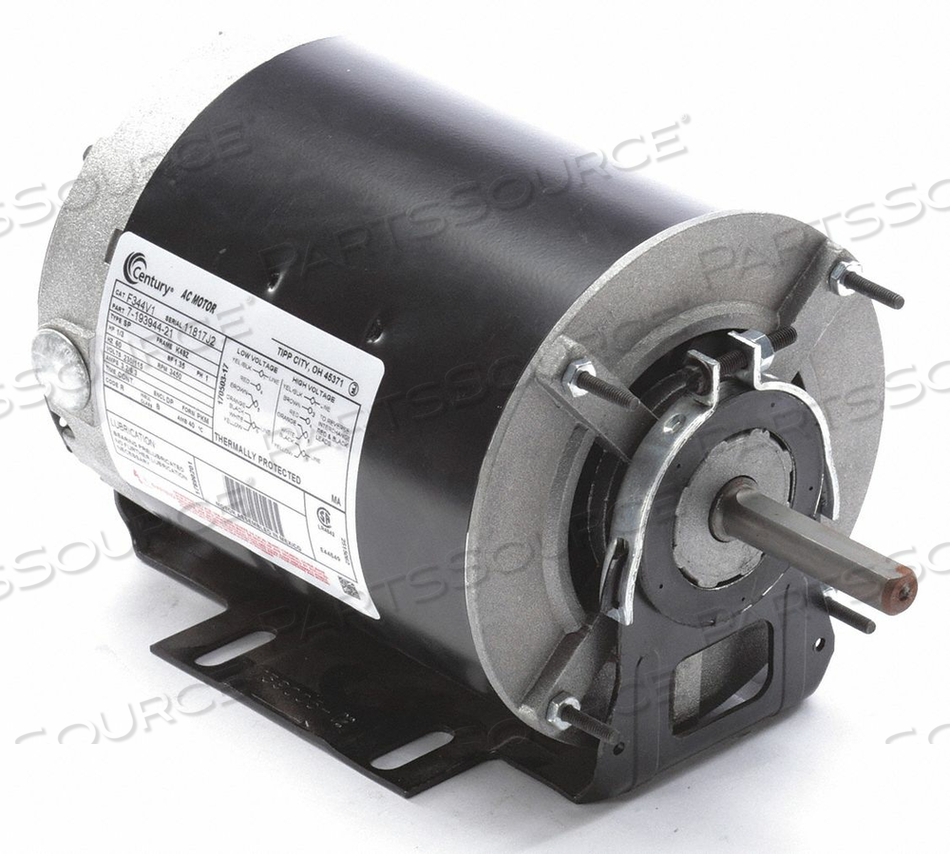

MOTOR SPLIT PH 1/3 HP 3450 115/230V 48Z by Regal Beloit America, Inc. (Century Electric Motors)

Your price:

$358.95 eachEstimated to ship by 05/14 if ordered before 6:30 PM.

OEM#: F344V1
MOTOR SPLIT PH 1/3 HP 3450 115/230V 48Z by Regal Beloit America, Inc. (Century Electric Motors)

New OEM Original Outright

Your price:

$358.95 each

Ready to Ship

Estimated to ship by 05/14 if ordered before 6:30 PM.

Asset Information

Qty:

Are you an existing customer? Sign in to access your account.

ADD TO LIST

Technical Specs

P/N: F344V1 Key Specs

Item

MOTOR SPLIT PH 1/3 HP 3450 115/230V 48Z

OEM

Regal Beloit America, Inc. (Century Electric Motors)

OEM #

F344V1

Condition

New OEM Original

Returnable

Warranty

Mfr Warranty

Body Diameter

5-5/8 in

Country of Origin

Mexico

Duty

Continuous

Frame

48Z

Full Load Amps

6.3/3.2

1/3

Ins. Class

Length Less Shaft

8 in

Max Ambient Temperature

40 Degrees C

Motor Application

HVAC/R

Motor Bearings

Ball

Motor Design

Split-Phase

Motor Enclosure Design

Open Dripproof

Motor Frame Material

Rolled Steel

Motor Mounting Position

All Angle

Motor Mounting Type

Cradle Base

Motor Service Factor

1.35

Motor Shaft Rotation

CW/CCW

Motor Sub Application

Belt Drive Fan/Blower

Motor Thermal Protection

Auto

Mounting Stud Pattern

3-5/8 in x 3-5/8 in

Nameplate RPM

3450

Nominal Efficiency

56 %

Number of Speeds

Overall Length

10-1/4 in

Phase

Resilient Ring Diameter

2-1/2 in

Ring to Ring Center

7-1/2 in

Shaft Diameter

1/2 in

Shaft Length

2-1/4 in

Standards

CSA Certified, UL Recognized

Voltage

115/230

Voltage Compatibility

115, 115/230, 120, 120/240, 230, 240
