OEM#: C047ANew OEM Original Outright

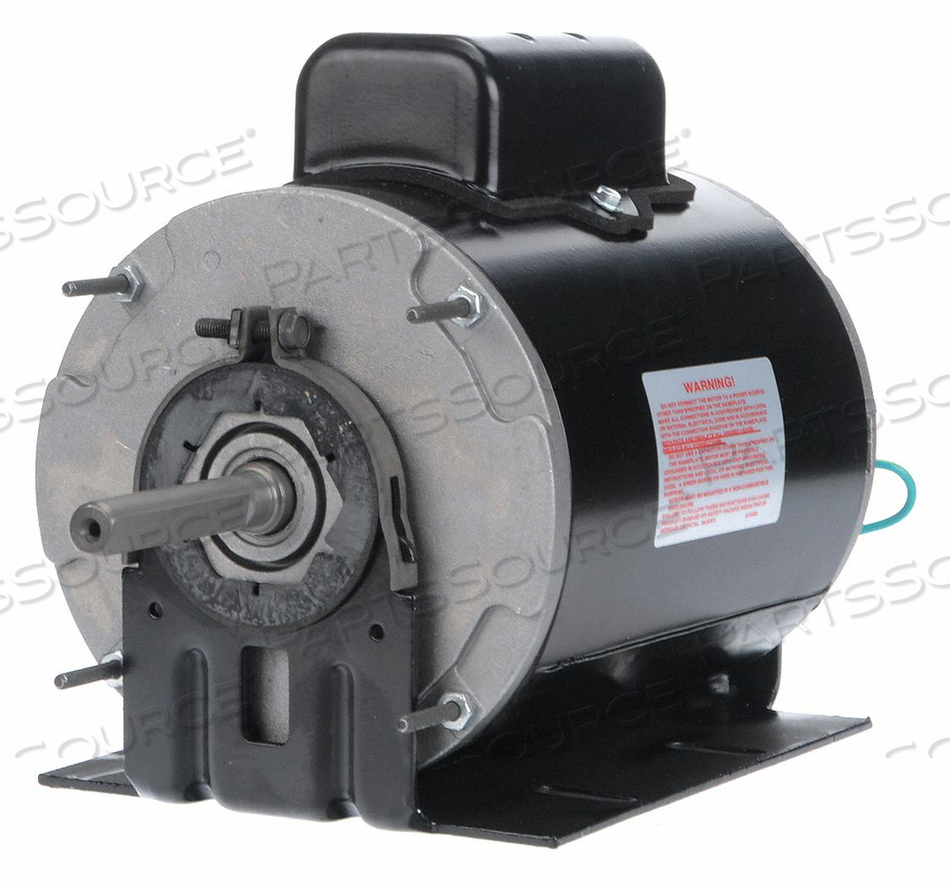

MOTOR PSC 1/2 HP 1100 115/230V 48Z TEAO by Regal Beloit America, Inc. (Century Electric Motors)
Your price:
$342.50 eachEstimated to ship by 05/14 if ordered before 6:30 PM.
OEM#: C047AMOTOR PSC 1/2 HP 1100 115/230V 48Z TEAO by Regal Beloit America, Inc. (Century Electric Motors)
New OEM Original Outright
Your price:
$342.50 each
Ready to ShipEstimated to ship by 05/14 if ordered before 6:30 PM.
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: C047A Key Specs
Item
MOTOR PSC 1/2 HP 1100 115/230V 48Z TEAO
OEM
Regal Beloit America, Inc. (Century Electric Motors)
OEM #
C047A
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Blowers, Fans and Air Circulators
Body Diameter
5-5/8 in
Bolt Circle Diameter
5-3/16 in
Capacitor Required
Included
Country of Origin
Mexico
Duty
Continuous
Frame
48Z
Full Load Amps
6.5/3.2
HP
1/2
Hz
60
Includes
Base, Shaft Sleeve and Key for 5/8 in dia, Shaft Slinger
Ins. Class
B
Length Less Shaft
8-3/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Position
All Angle
Motor Mounting Type
Cradle Base
Motor Service Factor
1
Motor Shaft Design
Double-Flat
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Mounting Stud Length
7/8 in
Mounting Stud Location
Shaft End
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Nameplate RPM
1100
Number of Speeds
1
Overall Length
11 in
Phase
1
Resilient Ring Diameter
2-1/2 in
Ring to Ring Center
7-7/8 in
Shaft Diameter
1/2 in
Shaft Length
3-1/8 in
Standards
CSA Certified (LR43341/LE12645), UL Recognized (E46412/E49807)
Stud Size
#8-32
Voltage
115/230
