OEM#: ARB2024L3New OEM Original Outright

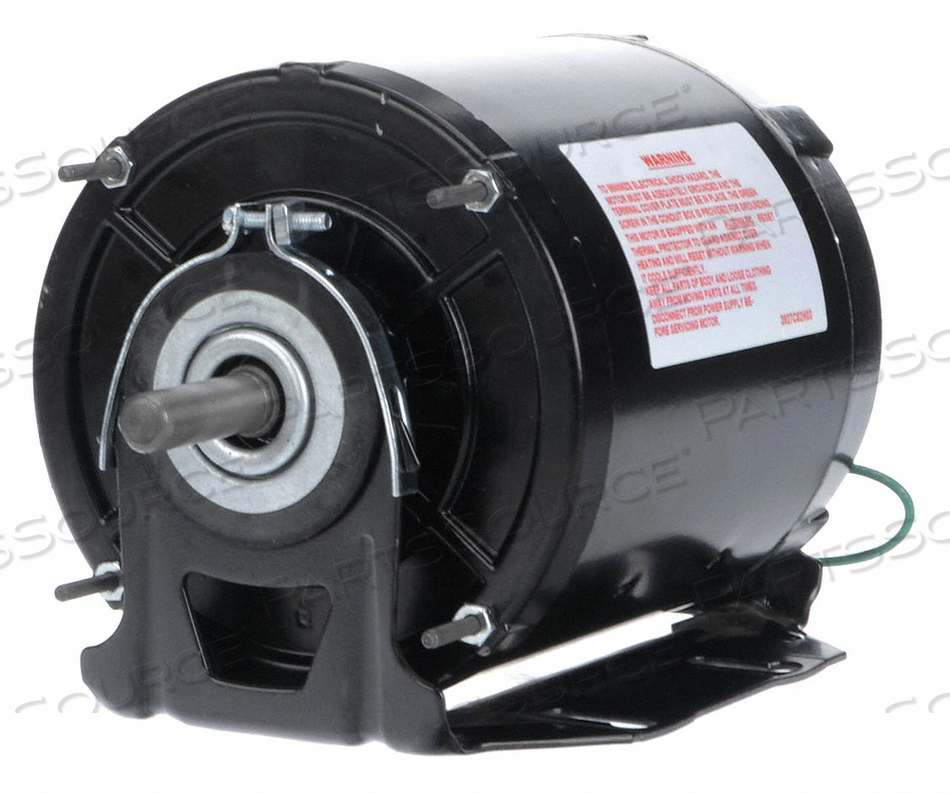

MOTOR SP PH 1/4 HP 1725 115/208-230V 48Y by Regal Beloit America, Inc. (Century Electric Motors)

Your price:
$325.54 eachEstimated to ship by 05/14 if ordered before 6:30 PM.
HomeRegal Beloit America, Inc. (Century Electric Motors)arb2024l3
MOTOR SP PH 1/4 HP 1725 115/208-230V 48Y by Regal Beloit America, Inc. (Century Electric Motors)
MOTOR SP PH 1/4 HP 1725 115/208-230V 48Y by Regal Beloit America, Inc. (Century Electric Motors)

OEM#: ARB2024L3
MOTOR SP PH 1/4 HP 1725 115/208-230V 48Y by Regal Beloit America, Inc. (Century Electric Motors)

New OEM Original Outright
Your price:
$325.54 each
Ready to shipReady to Ship
Estimated to ship by 05/14 if ordered before 6:30 PM.
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: ARB2024L3 Key Specs
Item
MOTOR SP PH 1/4 HP 1725 115/208-230V 48Y
OEM
Regal Beloit America, Inc. (Century Electric Motors)
OEM #
ARB2024L3
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Blowers, Fans and Air Circulators
Body Diameter
5-5/8 in
Bolt Circle Diameter
5-3/16 in
Capacitor Required
No
Country of Origin
Mexico
Duty
Continuous
Frame
48Y
Full Load Amps
3.3/1.7-1.7
HP
1/4 in
Hz
60
Includes
Resilient Base
Ins. Class
B
Length Less Shaft
7-13/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Split-Phase
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Position
Horizontal
Motor Mounting Type
Cradle Base
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Mounting Stud Length
7/8 in
Mounting Stud Location
Shaft End
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Nameplate RPM
1725
Number of Speeds
1
Overall Length
9-7/16 in
Phase
1
Resilient Ring Diameter
2-1/2 in
Ring to Ring Center
7-1/2 in
Shaft Diameter
1/2 in
Shaft Length
1-1/2 in
Standards
UL Recognized, CSA Certified
Stud Size
#8-32
Voltage
115/208-230
Voltage Compatibility
115, 115/208-230, 115/230, 120, 120/240, 208, 208-230, 208-240, 230, 240
