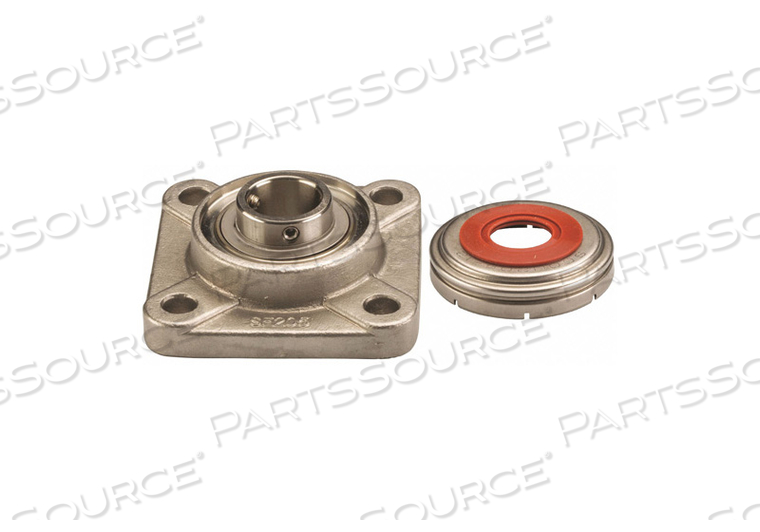

OEM#: SUCF211-32C0FG1New OEM Original Outright

FLANGE BEARING 4-BOLT 2 BORE DIA by NTN

Your price:
$1,244.43 eachEstimated to ship by 04/16 if ordered before 1:30 PM EST
HomeNTNsucf21132c0fg1
FLANGE BEARING 4-BOLT 2 BORE DIA by NTN
FLANGE BEARING 4-BOLT 2 BORE DIA by NTN

OEM#: SUCF211-32C0FG1
FLANGE BEARING 4-BOLT 2 BORE DIA by NTN

New OEM Original Outright
Your price:
$1,244.43 each
Estimated to ship by 04/16 if ordered before 1:30 PM EST
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: SUCF211-32C0FG1 Key Specs
Item
FLANGE BEARING 4-BOLT 2 BORE DIA
OEM
NTN
OEM #
SUCF211-32C0FG1
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Housing Material Type
Stainless Steel
Bearing Insert Material
440C Stainless Steel
Bearing Insert Type
Ball
Bearing Lubrication
FDA/USDA-H1 Solid Grease
Bolt Hole Center-to-Center
5 1/8 in
Bolt Size
5/8 in
Bore Dia.
2 in
Dynamic Load Capacity
7,640 lb
Finish
Unfinished
Includes
(2) Open End Caps
Mounted Bearing Item
4-Bolt Flange Bearing
Overall Height
6 3/8 in
Overall Length
6 3/8 in
Overall Width
2 7/16 in
Series
SF-FG1
Shaft Locking Type
Set Screw
Standards
NSF H1 Registered
Static Load Capacity
5,730 lb
Temp. Range
14 Degrees to 212 Degrees F
Technical Specs
P/N: SUCF211-32C0FG1 Key Specs
Item
FLANGE BEARING 4-BOLT 2 BORE DIA
OEM
NTN
OEM #
SUCF211-32C0FG1
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Housing Material Type
Stainless Steel
Bearing Insert Material
440C Stainless Steel
Bearing Insert Type
Ball
Bearing Lubrication
FDA/USDA-H1 Solid Grease
Bolt Hole Center-to-Center
5 1/8 in
Bolt Size
5/8 in
Bore Dia.
2 in
Dynamic Load Capacity
7,640 lb
Finish
Unfinished
Includes
(2) Open End Caps
Mounted Bearing Item
4-Bolt Flange Bearing
Overall Height
6 3/8 in
Overall Length
6 3/8 in
Overall Width
2 7/16 in
Series
SF-FG1
Shaft Locking Type
Set Screw
Standards
NSF H1 Registered
Static Load Capacity
5,730 lb
Temp. Range
14 Degrees to 212 Degrees F
Technical Specs
P/N: SUCF211-32C0FG1 Key Specs
Item
FLANGE BEARING 4-BOLT 2 BORE DIA
OEM
NTN
OEM #
SUCF211-32C0FG1
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Housing Material Type
Stainless Steel
Bearing Insert Material
440C Stainless Steel
Bearing Insert Type
Ball
Bearing Lubrication
FDA/USDA-H1 Solid Grease
Bolt Hole Center-to-Center
5 1/8 in
Bolt Size
5/8 in
Bore Dia.
2 in
Dynamic Load Capacity
7,640 lb
Finish
Unfinished
Includes
(2) Open End Caps
Mounted Bearing Item
4-Bolt Flange Bearing
Overall Height
6 3/8 in
Overall Length
6 3/8 in
Overall Width
2 7/16 in
Series
SF-FG1
Shaft Locking Type
Set Screw
Standards
NSF H1 Registered
Static Load Capacity
5,730 lb
Temp. Range
14 Degrees to 212 Degrees F
