OEM#: 253G-200E-29New OEM Original Outright

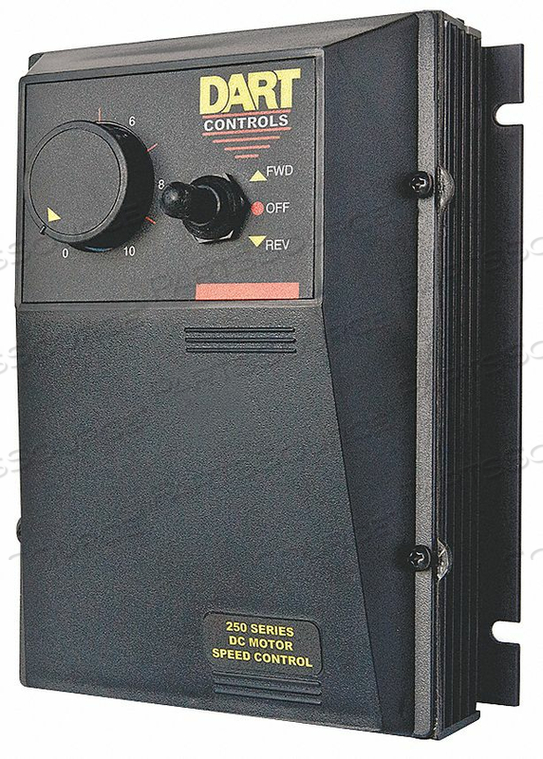

DC SPEED CONTROL 90/180VDC 10A NEMA 4/12 by Dart Controls

Your price:
$632.04 eachEstimated to ship by 12/27 if ordered before 4:30 PM EST
HomeDart Controls253g200e29
DC SPEED CONTROL 90/180VDC 10A NEMA 4/12 by Dart Controls
DC SPEED CONTROL 90/180VDC 10A NEMA 4/12 by Dart Controls

OEM#: 253G-200E-29
DC SPEED CONTROL 90/180VDC 10A NEMA 4/12 by Dart Controls

New OEM Original Outright
Your price:
$632.04 each
Estimated to ship by 12/27 if ordered before 4:30 PM EST
Asset Information
ADD TO LIST
Technical Specs
P/N: 253G-200E-29 Key Specs
Item
DC SPEED CONTROL 90/180VDC 10A NEMA 4/12
OEM
Dart Controls
OEM #
253G-200E-29
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
AC Input Voltage
120/240V AC
Accepts Tach Feedback
Yes
Country of Origin
USA
Current/Torque Limit
Adjustable
DC Speed Control
SCR
Depth
2.75 in
Dynamic Braking
No
Enclosure
NEMA 4/12
External Switches
FWD/OFF/REV
Follower Circuit
No
For Use With
Material Handling, Laboratory, Food Processing, Pump, Fan/Blower, Conveyor, Machine Tool, DC Motor and Spooling Applications
HP @ Higher Volts
1/4 to 2
HP @ Lower Volts
1/8 to 1
Height
2.75 in
IR Compensation
Adjustable
Includes
Speed Potentiometer Knob, Dial Plate and Forward/Off/Reverse Switch
Linear Acceleration
Adjustable 0.5 to 8 sec.
Linear Deceleration
Fixed
Max Amps
10
Mount Type
Surface
Operating Temperature
-10 Degrees to 45 Degrees C
Rotation
Reversable
Shunt Wound Volts
100/200VDC
Speed Range
50:1
Speed Regulation
+/-1% with Armature Voltage Feedback, +/-0.5% with Tach Feedback
Standards
cULus Listed
Voltage Output
0 to 90/180VDC
Width
2.75 in
