OEM#: E35MWSS 20:1 180TCNew OEM Original Outright

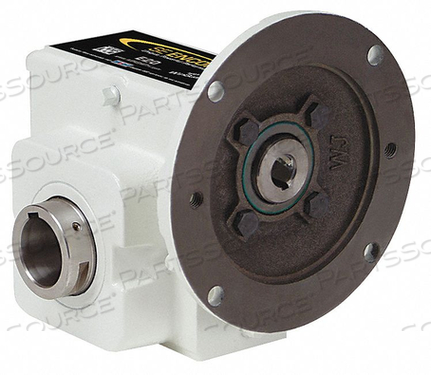

SPEED REDUCER C-FACE 180TC 20 1 by Winsmith

Your price:
$3,141.00 eachEstimated to ship by 12/11 if ordered before 4:30 PM EST
HomeWinsmithe35mwss201180tc
SPEED REDUCER C-FACE 180TC 20 1 by Winsmith
SPEED REDUCER C-FACE 180TC 20 1 by Winsmith

OEM#: E35MWSS 20:1 180TC
SPEED REDUCER C-FACE 180TC 20 1 by Winsmith

New OEM Original Outright
Your price:
$3,141.00 each
Estimated to ship by 12/11 if ordered before 4:30 PM EST
Asset Information
ADD TO LIST
Technical Specs
P/N: E35MWSS 20:1 180TC Key Specs
Item
SPEED REDUCER C-FACE 180TC 20 1
OEM
Winsmith
OEM #
E35MWSS 20:1 180TC
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bore Dia.
1 1/8 in
Duty
Washdown
Finish
Epoxy Coating System
Frame
180TC
Input RPM
1,725
Lubrication
Mobil Glygoyle(R) 460
Max. Input HP
5 hp
Max. Output Torque
3,334 in-lb
Mounting
Universal
Nominal Output RPM
86
Nominal Ratio
20:1
Number of Stages
1
Output Shaft Dia.
2 3/16 in
Output Shaft Height
4 in
Output Torque @ 2 HP
1,334 in-lb
Output Torque @ 3 HP
2,001 in-lb
Output Torque @ 5 HP
3,334 in-lb
Overhung Load
2,204 lb
Rotation
Reversible
Shaft Orientation
Right Angle
Solid/Hollow Output Shaft
Hollow
Speed Reducer Type
C-Face
Worm Center Distance
3.5 in
