OEM#: 10036OT3E365TS-W40New OEM Original Outright

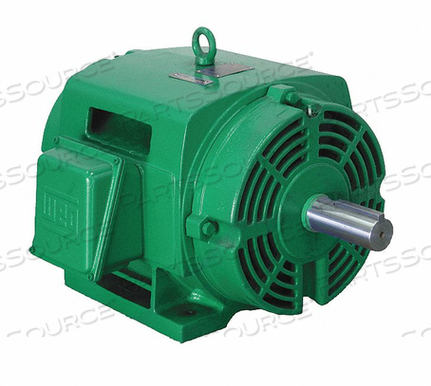

GP MTR 3 PH ODP 100 HP 3550 RPM 365TS by WEG
Your price:
$7,963.25 eachEstimated to ship by 01/06 if ordered before 4:30 PM EST
OEM#: 10036OT3E365TS-W40GP MTR 3 PH ODP 100 HP 3550 RPM 365TS by WEG
New OEM Original Outright
Your price:
$7,963.25 each
Estimated to ship by 01/06 if ordered before 4:30 PM EST
Asset Information
ADD TO LIST
Technical Specs
P/N: 10036OT3E365TS-W40 Key Specs
Item
GP MTR 3 PH ODP 100 HP 3550 RPM 365TS
OEM
WEG
OEM #
10036OT3E365TS-W40
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC029A
Duty
Continuous
Frame
365TS
Full Load Amps
222/111
Green Certification or Other Recognition
NEMA Premium(R) Rated
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
HP
100 hp
Hz
60
Ins. Class
F
Length Less Shaft
23-7/8 in
Manufacturers Warranty Length
3 yr
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
3550
Nominal Efficiency
94.5 %
Number of Speeds
1
Overall Length
27-5/8 in
Phase
3
RPM Group
3001-3600
RPM Range
3001-3600
Shaft Diameter
1-7/8 in
Shaft Length
3-3/4 in
Standards
CE, CSA, UL
Voltage
230/460
