OEM#: 10012ES3EOW445T-W22New OEM Original Outright

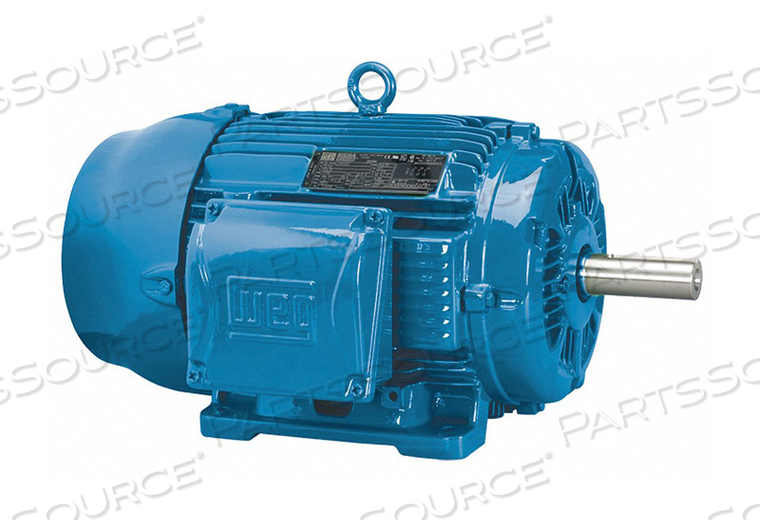

MOTOR 100 HP 1 150 RPM 208-230/460V by WEG
Your price:
$20,590.43 eachEstimated to ship by 12/06 if ordered before 4:30 PM EST
OEM#: 10012ES3EOW445T-W22MOTOR 100 HP 1 150 RPM 208-230/460V by WEG
New OEM Original Outright
Your price:
$20,590.43 each
Estimated to ship by 12/06 if ordered before 4:30 PM EST
Asset Information
ADD TO LIST
Technical Specs
P/N: 10012ES3EOW445T-W22 Key Specs
Item
MOTOR 100 HP 1 150 RPM 208-230/460V
OEM
WEG
OEM #
10012ES3EOW445T-W22
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temperature
40 Degrees C
Base
Rigid
Duty
Continuous
Finish
White Epoxy
Frame
445T
Full Load Amps
265-240/120
HP
100
Hz
60
Ins. Class
F
Length Less Shaft
36 11/16 in
Motor Application
Pump
Motor Bearings
Roller
Motor Design
3-Phase
Motor Efficiency Group
Energy Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Oil Well Pump
Motor Thermal Protection
None
Nameplate RPM
1130
Nominal Efficiency
90.2
Overall Length
45-1/4 in
Phase
3
Shaft Diameter
3-3/8 in
Shaft Length
8-1/2 in
Standards
CE, CSA Certified (LR38324), UL Recognized (E104590)
Voltage
208-230/460
Voltage Compatibility
208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
Warranty
1 1/2 yr
