OEM#: 05018ST3QIERB326T-WNew OEM Original Outright

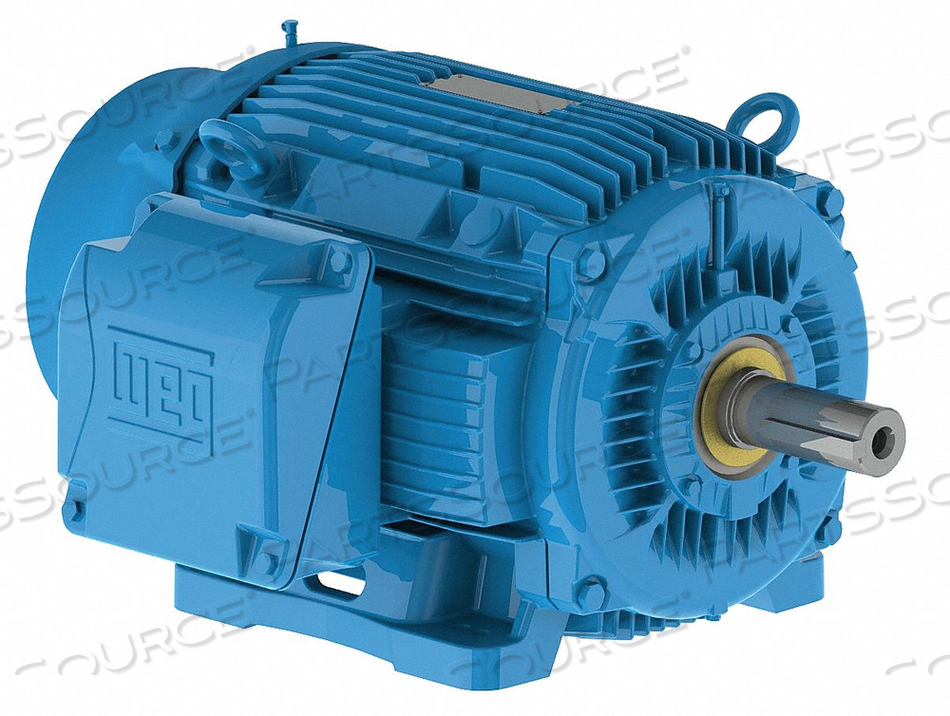

FINFAN MTR 3 PH TEFC 50 HP 1775 RPM 326T by WEG
Your price:
$6,663.81 eachEstimated to ship by 12/06 if ordered before 4:30 PM EST
OEM#: 05018ST3QIERB326T-WFINFAN MTR 3 PH TEFC 50 HP 1775 RPM 326T by WEG
New OEM Original Outright
Your price:
$6,663.81 each
Estimated to ship by 12/06 if ordered before 4:30 PM EST
Asset Information
ADD TO LIST
Technical Specs
P/N: 05018ST3QIERB326T-W Key Specs
Item
FINFAN MTR 3 PH TEFC 50 HP 1775 RPM 326T
OEM
WEG
OEM #
05018ST3QIERB326T-W
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC029A
Duty
Continuous
Frame
326T
Full Load Amps
59.2
Green Certification or Other Recognition
NEMA Premium(R) Rated
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
HP
50 hp
Hz
60/50
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
25-3/4 in
Manufacturers Warranty Length
5 yr
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.25
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1775
Nominal Efficiency
94.5 %
Number of Speeds
1
Overall Length
31-1/8 in
Phase
3
RPM Group
1701-1800
RPM Range
1701-1800
Shaft Diameter
2-1/8 in
Shaft Length
5-1/4 in
Standards
CE, CSA, NOM, UL
Voltage
460
