OEM#: 04036ET3E324JM-W22New OEM Original Outright

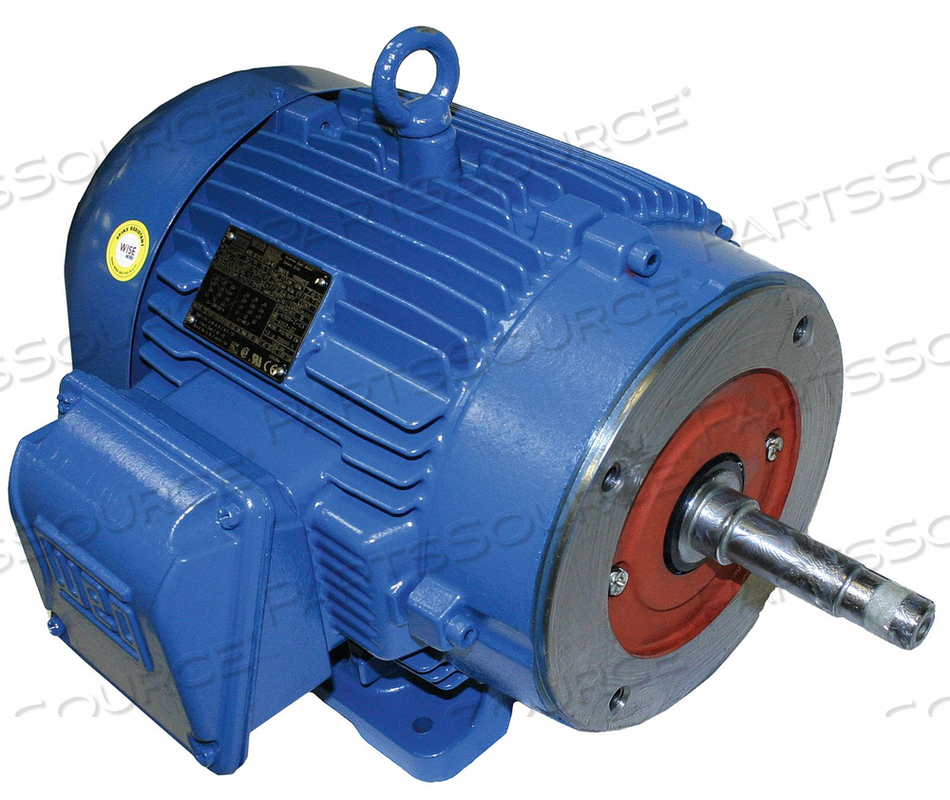

PUMP MTR 3PH 40HP 3555 208-230/460 324JM by WEG
Your price:
$7,367.35 eachEstimated to ship by 12/06 if ordered before 4:30 PM EST
OEM#: 04036ET3E324JM-W22PUMP MTR 3PH 40HP 3555 208-230/460 324JM by WEG
New OEM Original Outright
Your price:
$7,367.35 each
Estimated to ship by 12/06 if ordered before 4:30 PM EST
Asset Information
ADD TO LIST
Technical Specs
P/N: 04036ET3E324JM-W22 Key Specs
Item
PUMP MTR 3PH 40HP 3555 208-230/460 324JM
OEM
WEG
OEM #
04036ET3E324JM-W22
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC029A
Duty
Continuous
Frame
324JM
Full Load Amps
101-91.6/45.8
HP
40
Hz
60
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
23-1/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
Pump
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Type
Face/Base
Motor Service Factor
1.25
Motor Shaft Design
JM Threaded
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Close-Coupled Pump
Motor Thermal Protection
None
Nameplate RPM
3555
Nominal Efficiency
92.4 %
Overall Length
28-1/8 in
Phase
3
Shaft Diameter
1-1/4 in
Shaft Length
5 in
Standards
CE Compliant, CSA Certified, UL Recognized
Voltage
208-230/460
Voltage Compatibility
208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
