OEM#: 03036ET3E286TS-W22New OEM Original Outright

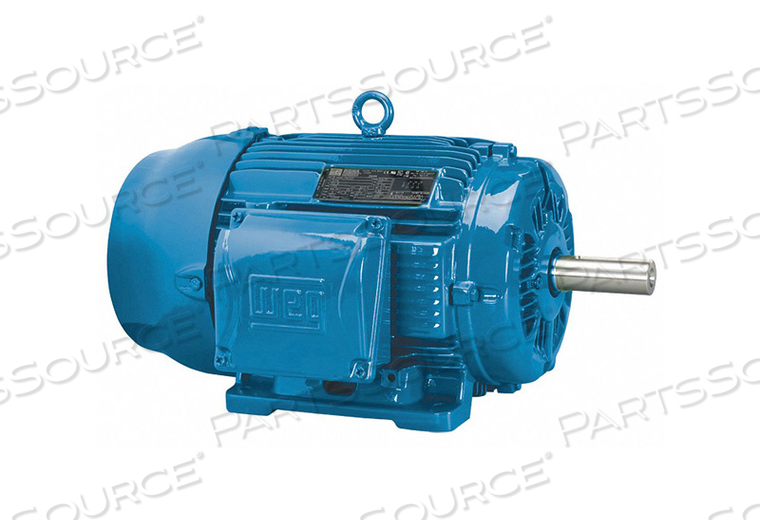

MTR 3 PH 30 HP 3535 230/460 EFF 91.7 by WEG
Your price:
$3,578.02 eachEstimated to ship by 01/06 if ordered before 4:30 PM EST
OEM#: 03036ET3E286TS-W22MTR 3 PH 30 HP 3535 230/460 EFF 91.7 by WEG
New OEM Original Outright
Your price:
$3,578.02 each
Estimated to ship by 01/06 if ordered before 4:30 PM EST
Asset Information
ADD TO LIST
Technical Specs
P/N: 03036ET3E286TS-W22 Key Specs
Item
MTR 3 PH 30 HP 3535 230/460 EFF 91.7
OEM
WEG
OEM #
03036ET3E286TS-W22
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC029A
Duty
Continuous
Frame
286TS
Full Load Amps
67.6/33.8
HP
30
Hz
60
Ins. Class
F
Length Less Shaft
23-5/16 in
Manufacturers Warranty Length
3 yr
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.25
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
3535
Nominal Efficiency
91.7 %
Number of Speeds
1
Overall Length
26 9/16 in
Phase
3
Shaft Diameter
1-5/8 in
Shaft Length
3-1/4 in
Standards
CE, CSA, NOM, UL
Voltage
230/460
