OEM#: 00736ET3E213T-W22New OEM Original Outright

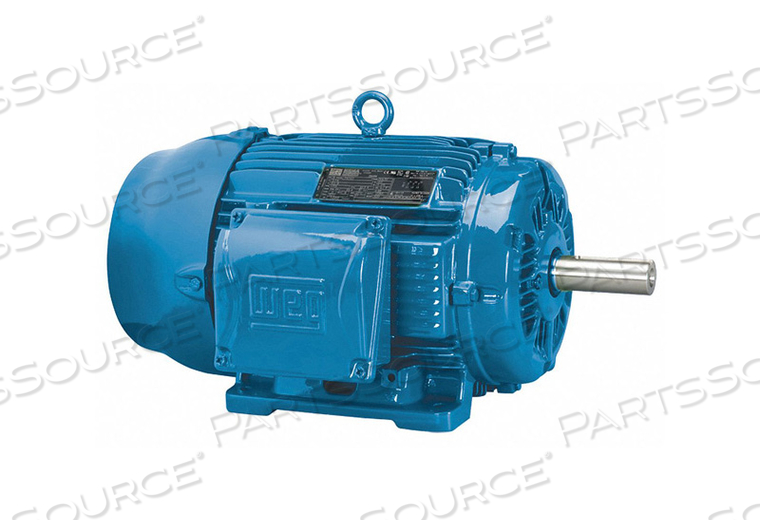

MTR 3 PH 7.5HP 3520 230/460 EFF 89.5 by WEG
Your price:
$988.99 each $1,130.28 Savings: $141.29 (13%)
Ship date will be provided after ordering
OEM#: 00736ET3E213T-W22MTR 3 PH 7.5HP 3520 230/460 EFF 89.5 by WEG
New OEM Original Outright
Your price:
$988.99 each
$1,130.28 Savings: $141.29 (13%)
Ship date will be provided after ordering
Asset Information
ADD TO LIST
Technical Specs
P/N: 00736ET3E213T-W22 Key Specs
Item
MTR 3 PH 7.5HP 3520 230/460 EFF 89.5
OEM
WEG
OEM #
00736ET3E213T-W22
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC029A
Duty
Continuous
Frame
213T
Full Load Amps
17.5/8.7
HP
7-1/2 in
Hz
60
Ins. Class
F
Length Less Shaft
14-5/8 in
Manufacturers Warranty Length
3 yr
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.25
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
3520
Nominal Efficiency
89.5 %
Number of Speeds
1
Overall Length
18 in
Phase
3
Shaft Diameter
1-3/8 in
Shaft Length
3-3/8 in
Standards
CE, CSA, NOM, UL
Voltage
230/460
