OEM#: 00736ET3E213TC-W22New OEM Original Outright

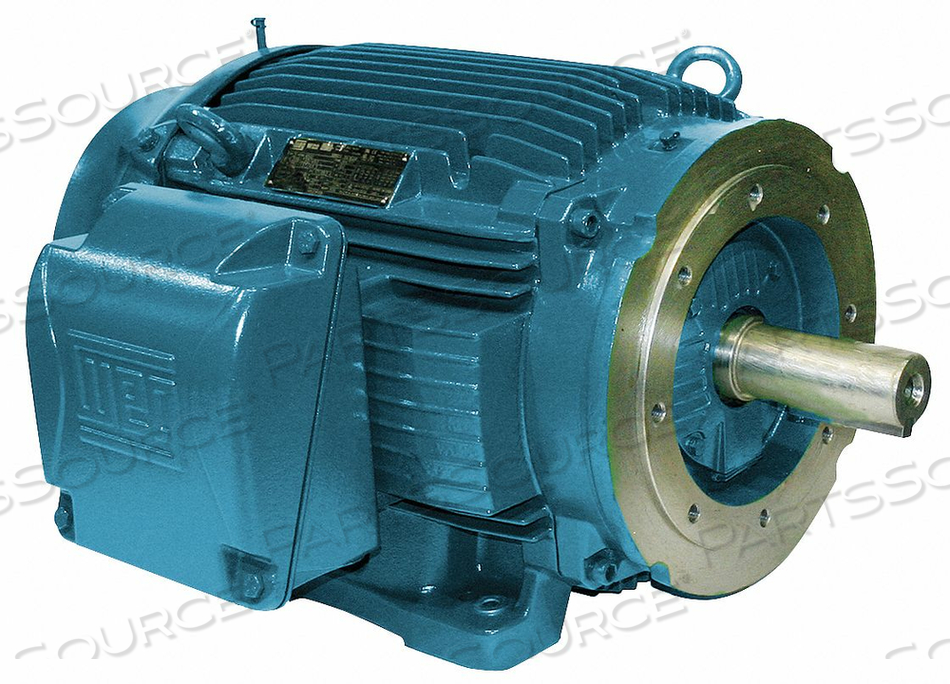

MTR 3 PH 7.5 HP 3520 230/460 EFF89.5 by WEG
Your price:
$1,061.57 each $1,200.58 Savings: $139.01 (12%)
Ship date will be provided after ordering
OEM#: 00736ET3E213TC-W22MTR 3 PH 7.5 HP 3520 230/460 EFF89.5 by WEG
New OEM Original Outright
Your price:
$1,061.57 each
$1,200.58 Savings: $139.01 (12%)
Ship date will be provided after ordering
Asset Information
ADD TO LIST
Technical Specs
P/N: 00736ET3E213TC-W22 Key Specs
Item
MTR 3 PH 7.5 HP 3520 230/460 EFF89.5
OEM
WEG
OEM #
00736ET3E213TC-W22
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC029A
Duty
Continuous
Frame
213TC
Full Load Amps
17.5/8.7
HP
7-1/2 in
Hz
60
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
14-5/8 in
Manufacturers Warranty Length
3 yr
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Position
All Angle
Motor Mounting Type
Face/Base
Motor Service Factor
1.25
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
3520
Nominal Efficiency
89.5 %
Number of Speeds
1
Overall Length
18 in
Phase
3
Shaft Diameter
1-3/8 in
Shaft Length
3-3/8 in
Standards
CE, CSA, NOM, UL
Voltage
230/460
