OEM#: 00336ET3E182JM-W22New OEM Original Outright

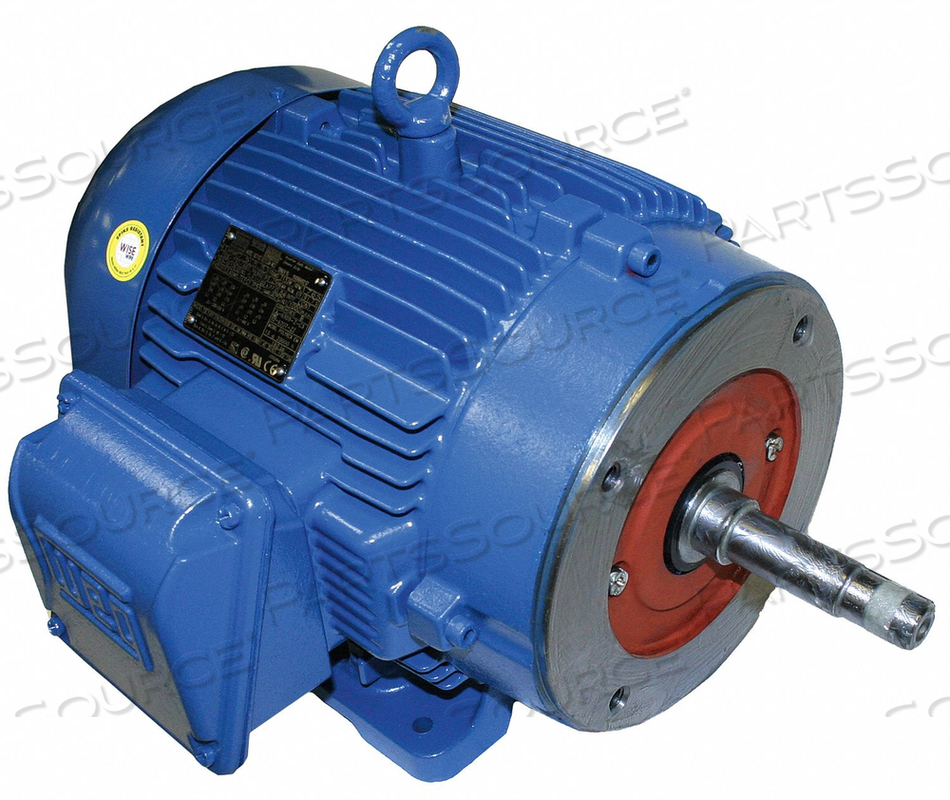

PUMP MTR 3-PH 3HP 3510 208-230/460 182JM by WEG
Your price:
$1,104.45 each
OEM#: 00336ET3E182JM-W22PUMP MTR 3-PH 3HP 3510 208-230/460 182JM by WEG
New OEM Original Outright
Your price:
$1,104.45 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 00336ET3E182JM-W22 Key Specs
Item
PUMP MTR 3-PH 3HP 3510 208-230/460 182JM
OEM
WEG
OEM #
00336ET3E182JM-W22
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC029A
Duty
Continuous
Frame
182JM
Full Load Amps
8.1-7.2/3.6
HP
3
Hz
60
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
11-7/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
Pump
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Type
Face/Base
Motor Service Factor
1.25
Motor Shaft Design
JM Threaded
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Close-Coupled Pump
Motor Thermal Protection
None
Nameplate RPM
3510
Nominal Efficiency
86.5 %
Overall Length
16 in
Phase
3
Shaft Diameter
7/8 in
Shaft Length
4-1/4 in
Standards
CE Compliant, CSA Certified, UL Recognized
Voltage
208-230/460
Voltage Compatibility
208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
