OEM#: 00318ET3E182TC-W22New OEM Original Outright

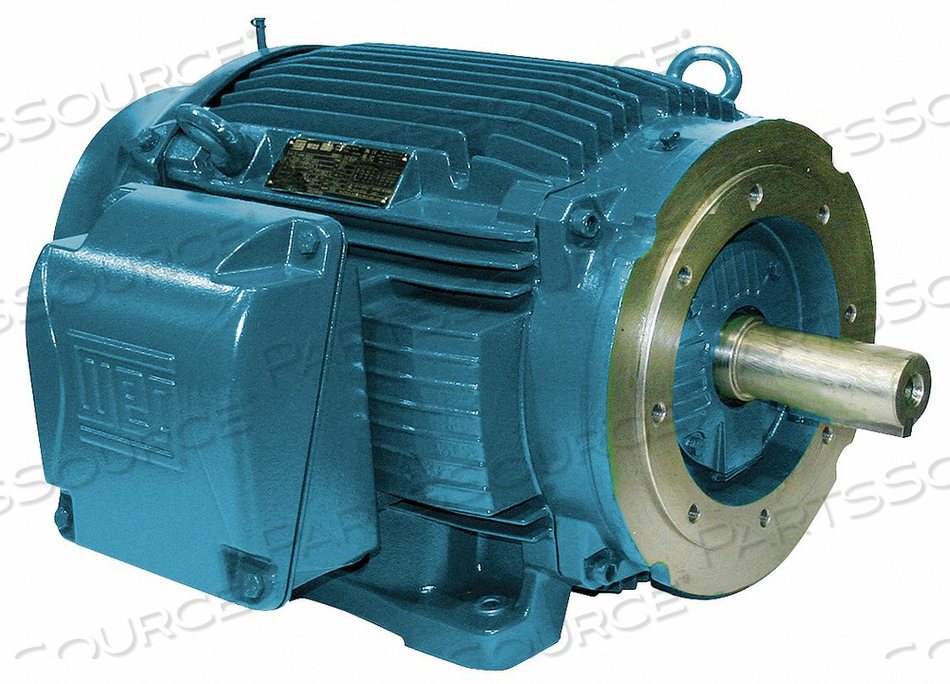

MTR 3 PH 3 HP 1760 230/460V EFF 89.5 by WEG
Your price:
$783.76 eachEstimated to ship by 12/06 if ordered before 4:30 PM EST
OEM#: 00318ET3E182TC-W22MTR 3 PH 3 HP 1760 230/460V EFF 89.5 by WEG
New OEM Original Outright
Your price:
$783.76 each
Estimated to ship by 12/06 if ordered before 4:30 PM EST
Asset Information
ADD TO LIST
Technical Specs
P/N: 00318ET3E182TC-W22 Key Specs
Item
MTR 3 PH 3 HP 1760 230/460V EFF 89.5
OEM
WEG
OEM #
00318ET3E182TC-W22
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC029A
Duty
Continuous
Frame
182TC
Full Load Amps
7.7/3.8
HP
3
Hz
60
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
12-1/8 in
Manufacturers Warranty Length
3 yr
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Position
All Angle
Motor Mounting Type
Face/Base
Motor Service Factor
1.25
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1760
Nominal Efficiency
89.5 %
Number of Speeds
1
Overall Length
14-7/8 in
Phase
3
Shaft Diameter
1-1/8 in
Shaft Length
2-3/4 in
Standards
CE, CSA, NOM, UL
Voltage
230/460
