OEM#: 00118ET3E143JP-W22New OEM Original Outright

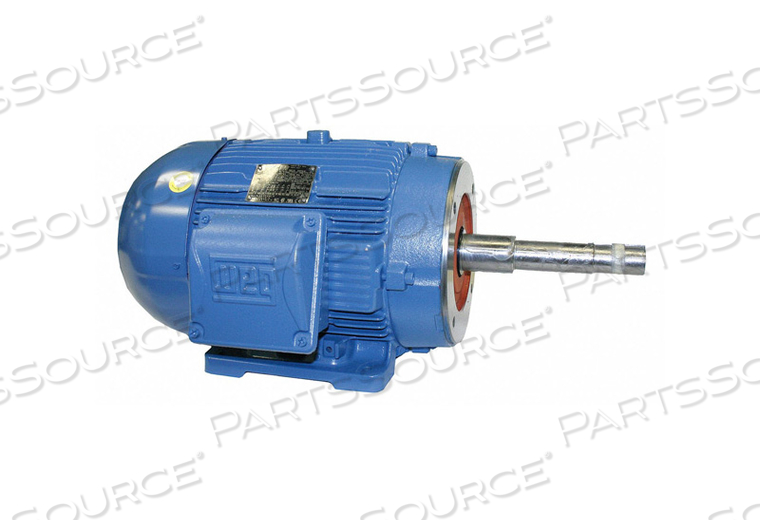

PUMP MTR 3-PH 1HP 1765 208-230/460 143JP by WEG

Your price:
$749.93 eachReady to ship
HomeWEG00118ET3E143JPW22
PUMP MTR 3-PH 1HP 1765 208-230/460 143JP by WEG
PUMP MTR 3-PH 1HP 1765 208-230/460 143JP by WEG

OEM#: 00118ET3E143JP-W22
PUMP MTR 3-PH 1HP 1765 208-230/460 143JP by WEG

New OEM Original Outright
Your price:
$749.93 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 00118ET3E143JP-W22 Key Specs
Item
PUMP MTR 3-PH 1HP 1765 208-230/460 143JP
OEM
WEG
OEM #
00118ET3E143JP-W22
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC029A
Duty
Continuous
Frame
143JP
Full Load Amps
3.1-2.8/1.4
HP
1
Hz
60
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
10-3/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
Pump
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Type
Face/Base
Motor Service Factor
1.25
Motor Shaft Design
JP Threaded
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Close-Coupled Pump
Motor Thermal Protection
None
Nameplate RPM
1765
Nominal Efficiency
85.5 %
Overall Length
17-3/8 in
Phase
3
Shaft Diameter
7/8 in
Shaft Length
7-3/16 in
Standards
CE Compliant, CSA Certified, UL Recognized
Voltage
208-230/460
Voltage Compatibility
208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
