OEM#: WLC3000-120VACNew OEM Original Outright

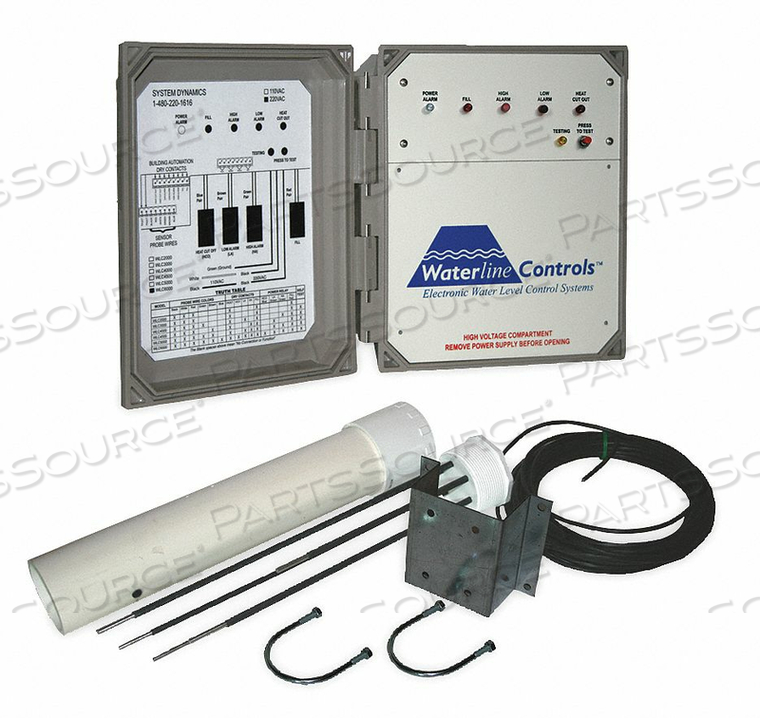

WATER LEVEL CONTROL FILL ONLY by Waterline Controls

Your price:
$1,642.82 each
$1,722.14 Savings: $79.32 (5%)
Estimated to ship by 12/06 if ordered before 4:30 PM EST
HomeWaterline Controlswlc3000120vac
WATER LEVEL CONTROL FILL ONLY by Waterline Controls
WATER LEVEL CONTROL FILL ONLY by Waterline Controls

OEM#: WLC3000-120VAC
WATER LEVEL CONTROL FILL ONLY by Waterline Controls

New OEM Original Outright
Your price:
$1,642.82 each
$1,722.14 Savings: $79.32 (5%)
Estimated to ship by 12/06 if ordered before 4:30 PM EST
Asset Information
ADD TO LIST
Technical Specs
P/N: WLC3000-120VAC Key Specs
Item
WATER LEVEL CONTROL FILL ONLY
OEM
Waterline Controls
OEM #
WLC3000-120VAC
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Agency Compliance
ETL Listed
Application
Boilers, Cooling Towers, Irrigation Lakes, Sewage Water Systems, Storm Water tanks, Waste Water Tanks, Water Storage Tanks, Well Water Holding tanks
Control Type
Electronic With Microprocessor For Site Automation or Integration
Country of Origin
USA
Enclosure Color
Gray
Enclosure Depth (Inches)
6 in
Enclosure Height (Inches)
8-3/4 in
Enclosure Type
NEMA 4X
Enclosure Width (Inches)
10-1/2 in
Includes
Installation Instructions, Mounting Brackets and U Bolts, Sensor Wire, Stainless Steel Sensor Assembly, Waterline Controller in NEMA 4x Box
Input Voltage
110V AC 50/60 Hz
Max Circuit Length (Feet)
50
Number of Switches
1
Operating Range
1-1/2 in
Relays
30 Amps at 250V AC
Sensor Cord Length (Feet)
50
Sensor Diameter (Inches)
3 in
Sensor Length (Inches)
20 in
Sensor Placement
On The Environment Wall or In A Static Pipe
Sensors Included
Fill Height Only
Special Features
Easy To Read Led Display, No Moving Parts, Compensates For Wave Action, Modular Construction, One-Step Internal Testing System For The Electronics, Building Automation Dry Contracts, Stainless Steel Probes, 110Vac Solenoid Required ( Purchase Seperat
Special Information
By using a very low voltage and current, WLC Series sensors never foul or degrade, It uses a microprocessor that monitors all probes for correct operation and then provides the corresponding outputs to drive the power relays, the Building Automation
Switch Type
SPST
Type
Universal
Valve
Can Be Used With 1 in Npt And 110Vac Or Eqivalent Made By Asco Model 8221
