OEM#: U32P3DCRNew OEM Original Outright

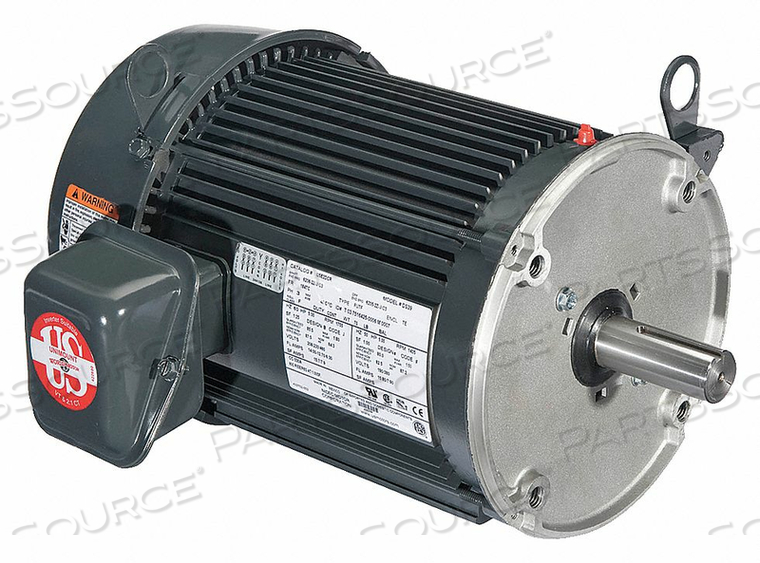

GP MOTOR 3-PHASE TEFC 1-1/2HP 60/50HZ by Usem

Your price:
$1,163.80 eachShip date will be provided after ordering
HomeUsemu32p3dcr
GP MOTOR 3-PHASE TEFC 1-1/2HP 60/50HZ by Usem
GP MOTOR 3-PHASE TEFC 1-1/2HP 60/50HZ by Usem

OEM#: U32P3DCR
GP MOTOR 3-PHASE TEFC 1-1/2HP 60/50HZ by Usem

New OEM Original Outright
Your price:
$1,163.80 each
Ship date will be provided after ordering
Asset Information
ADD TO LIST
Technical Specs
P/N: U32P3DCR Key Specs
Item
GP MOTOR 3-PHASE TEFC 1-1/2HP 60/50HZ
OEM
Usem
OEM #
U32P3DCR
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC030A
Country of Origin
Mexico
Duty
Continuous
Frame
182TC
Full Load Amps
4.8-4.7/2.3
Green Certification or Other Recognition
NEMA Premium(R) Rated
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
HP
1 1/2 hp
Hz
60/50
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
13-1/2 in
Manufacturers Warranty Length
2 yr
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Aluminum
Motor Mounting Position
Horizontal
Motor Mounting Type
Face
Motor Service Factor
1.25
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1175
Nominal Efficiency
87.5 %
Number of Speeds
1
Overall Length
16-1/8 in
Phase
3
RPM Group
1101-1200
RPM Range
1101-1200
Shaft Diameter
1-1/8 in
Shaft Length
2-5/8 in
Standards
CE, CSA (191252), NP, UL (E51488)
Voltage
208-230/460
