OEM#: U3P1DKNew OEM Original Outright

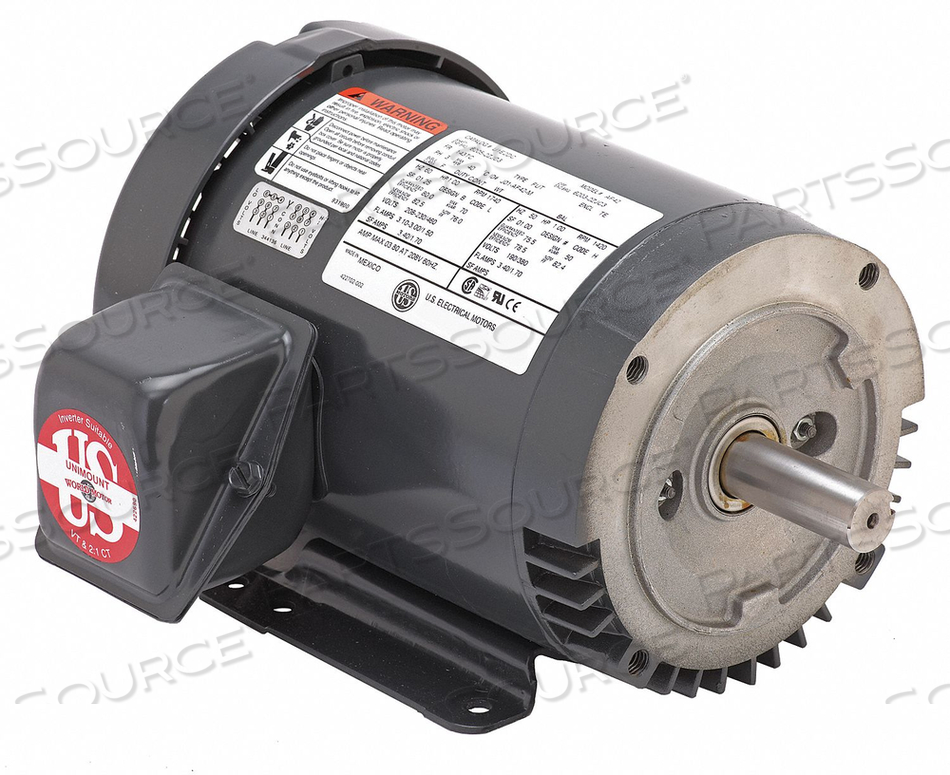

MTR 3PH 3HP 3600RPM 208-230/460 EFF 88.5 by Usem

Your price:
$1,032.36 eachShip date will be provided after ordering
HomeUsemu3p1dk
MTR 3PH 3HP 3600RPM 208-230/460 EFF 88.5 by Usem
MTR 3PH 3HP 3600RPM 208-230/460 EFF 88.5 by Usem

OEM#: U3P1DK
MTR 3PH 3HP 3600RPM 208-230/460 EFF 88.5 by Usem

New OEM Original Outright
Your price:
$1,032.36 each
Ship date will be provided after ordering
Asset Information
ADD TO LIST
Technical Specs
P/N: U3P1DK Key Specs
Item
MTR 3PH 3HP 3600RPM 208-230/460 EFF 88.5
OEM
Usem
OEM #
U3P1DK
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC030A
Country of Origin
Mexico
Duty
Continuous
Frame
182TCH
Full Load Amps
7.8/3.9
Green Certification or Other Recognition
NEMA Premium(R) Rated
HP
3 hp
Hz
60/50
Ins. Class
F
Length Less Shaft
13-3/8 in
Manufacturers Warranty Length
2 yr
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Aluminum
Motor Mounting Position
Horizontal or Vertical Shaft Down
Motor Mounting Type
Face/Base
Motor Service Factor
1.25
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
3600
Nominal Efficiency
88.5 %
Number of Speeds
1
Overall Length
16-1/4 in
Phase
3
RPM Group
3001-3600
RPM Range
3001-3600
Shaft Diameter
1-1/8 in
Shaft Length
2-3/4 in
Standards
CE, CSA, UL
Voltage
230/460
