OEM#: B140-101X-U

DVI OVER CAT5/6 ACTIVE EXTENDER KIT VIDEO TRANSMITTER RECEIVER by Tripp Lite

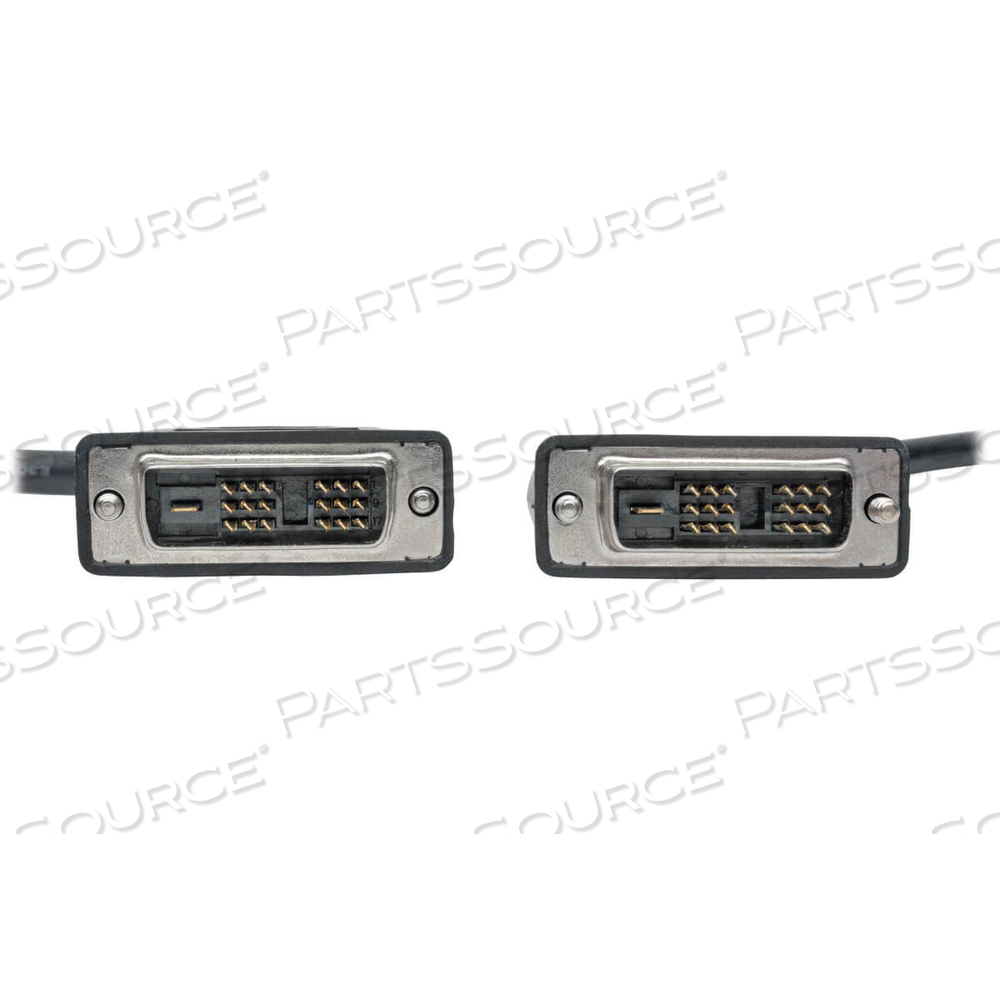

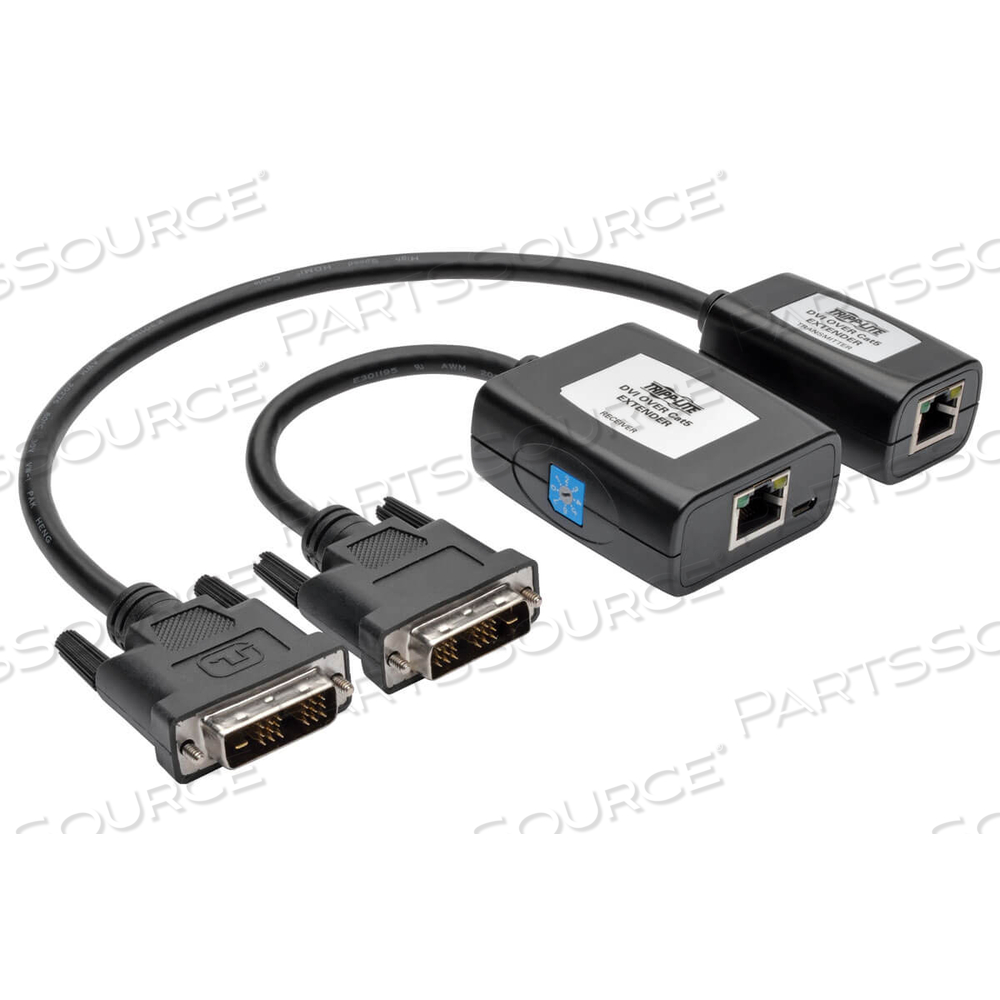

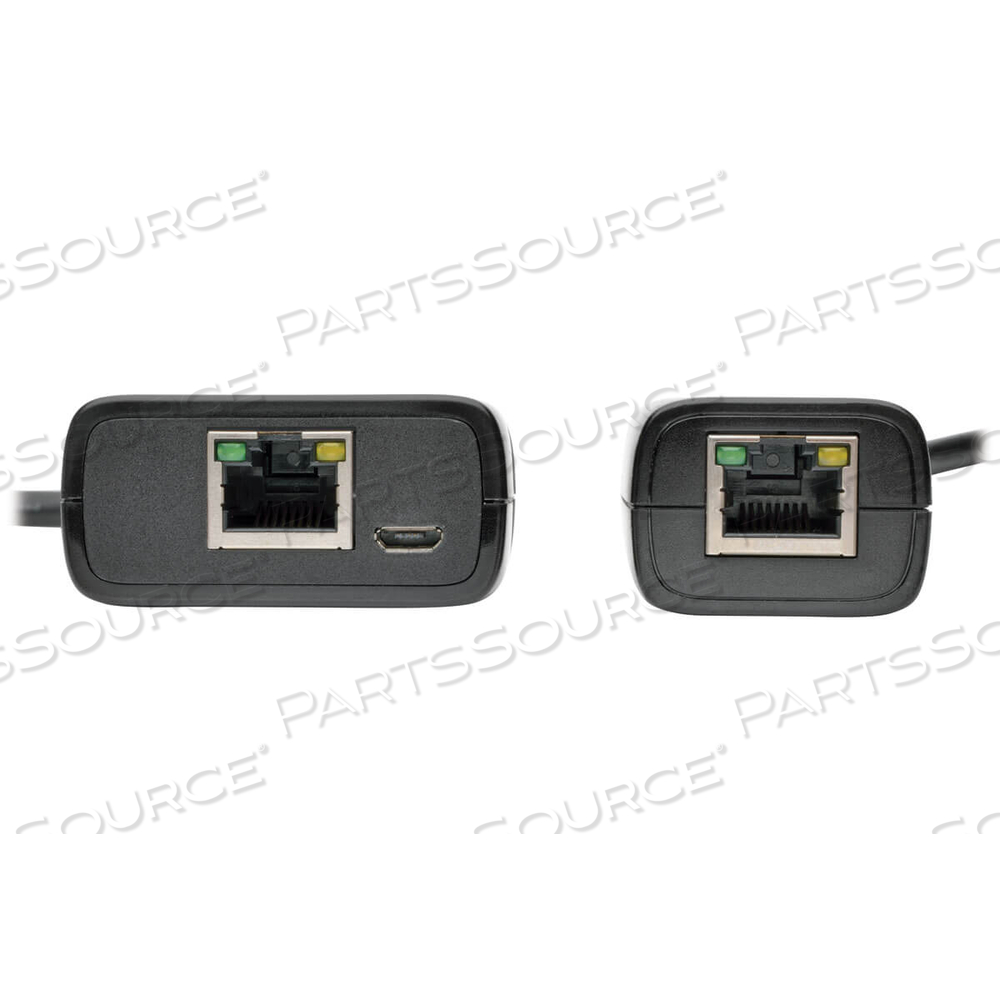

The B140-101X-U DVI over Cat5/6 Active Extender Kit includes a transmitter unit and a receiver unit that work in tandem to extend a DVI-D signal to a projector, monitor or television. The kit is ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow. Each unit features a built-in DVI cable for connecting to your computer’s DVI output port and the display’s DVI input port. Cat5e/6 cable connects the two units (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series). An included USB Micro-B cable connects the receiver and a USB port on the display or a USB wall charger to supply power to the unit.The HDCP-compatible B140-101X-U can extend a 1920 x 1200(60 Hz) signal, including 1080p, up to 125 feet. LEDs on the RJ45 portsindicate when the units are receiving power and a DVI signal from the source.Built-in equalization control lets you fine-tune the image on the remotedisplay. Easy to set up with no software or drivers to install. Compatible withall operating systems. Compliant with the Federal Trade Agreements Act (TAA)for GSA Schedule purchases.

System Requirements:
• Computer with DVI output port and available USB port
• Display with DVI input port and available USB port

Package Includes:
• Transmitter unit
• Receiver unit
• Screwdriver for adjusting equalization
• USB Micro-B cable, 3 ft.
• Owner’s manual

• Plug and play-no software or drivers to install
• Supports computer video resolutions up to 1920 x 1200 (60Hz)
• Supports high-definition video resolutions up to 1080p
• USB Micro-B port supplies power to the receiver
• Works with all operating systems

The B140-101X-U DVI over Cat5/6 Active Extender Kit includes a transmitter unit and a receiver unit that work in tandem to extend a DVI-D signal to a projector, monitor or television. The kit is ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow. Each unit features a built-in DVI cable for connecting to your computer’s DVI output port and the display’s DVI input port. Cat5e/6 cable connects the two units (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series). An included USB Micro-B cable connects the receiver and a USB port on the display or a USB wall charger to supply power to the unit.The HDCP-compatible B140-101X-U can extend a 1920 x 1200(60 Hz) signal, including 1080p, up to 125 feet. LEDs on the RJ45 portsindicate when the units are receiving power and a DVI signal from the source.Built-in equalization control lets you fine-tune the image on the remotedisplay. Easy to set up with no software or drivers to install. Compatible withall operating systems. Compliant with the Federal Trade Agreements Act (TAA)for GSA Schedule purchases.

System Requirements:
• Computer with DVI output port and available USB port
• Display with DVI input port and available USB port

Package Includes:
• Transmitter unit
• Receiver unit
• Screwdriver for adjusting equalization
• USB Micro-B cable, 3 ft.
• Owner’s manual
