OEM#: SRW18USDPNew OEM Original Outright
18U UPS-DEPTH WALL-MOUNT RACK ENCLOSURE CABINET, HINGED BACK by Tripp Lite
Your price:
$1,335.56 each $1,521.84 Savings: $186.28 (12%)
View All
OEM#: SRW18USDP18U UPS-DEPTH WALL-MOUNT RACK ENCLOSURE CABINET, HINGED BACK by Tripp Lite
New OEM Original Outright
Your price:
$1,335.56 each
$1,521.84 Savings: $186.28 (12%)

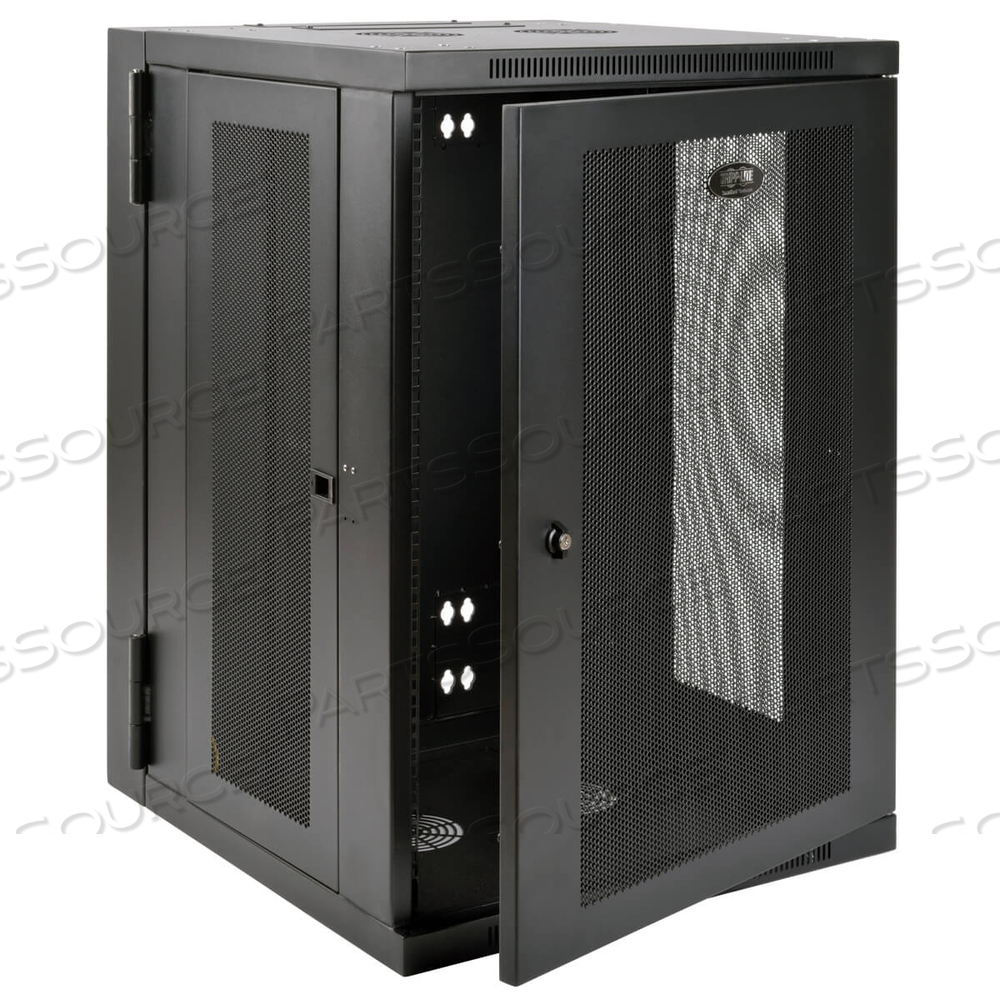

SmartRack 18U UPS-Depth Wall-Mount Rack Enclosure Cabinet, Hinged Back
Asset Information
1-Year Limited Warranty
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
The SRW18USDP SmartRack 18U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds.The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.The SRW18USDP comes fully assembled and ready to mount to the wall, or use Tripp Lite’s optional SRCASTER rolling caster kit to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.
- Package Includes:
• SRW18USDP SmartRack 18U UPS-Depth Wall-Mount Rack Enclosure Cabinet
• (42) M6 screws
• (42) M6 cage nuts
• (42) M6 washers
• (42) 12-24 screws
• (2) Keys
• Owner’s manual
Features
- Flow-through ventilation keeps equipment cool
- Locking steel cabinet vented at sides, front, top and bottom
- Maximum load capacity of 250 lb.
- Secures 18U of 19 in. rack equipment up to 24.5 in. deep
- Swings away from wall on hinge for easy back-door access
Technical Specs
P/N: SRW18USDP Key Specs
Item
18U UPS-DEPTH WALL-MOUNT RACK ENCLOSURE CABINET, HINGED BACK
OEM
Tripp Lite
OEM #
SRW18USDP
Condition
New OEM Original
Returnable
No
Warranty
Other (See Notes)
Color
Black
Dimensions (WxDxH)
23.5 in x 26 in x 35.6 in
Height (Rack Units)
18U
Placing / Mounting
Wall mountable
Product Type
Rack
Rack Size
19
Rack Type
Cabinet
Weight
100.9 lbs
