OEM#: SF380A

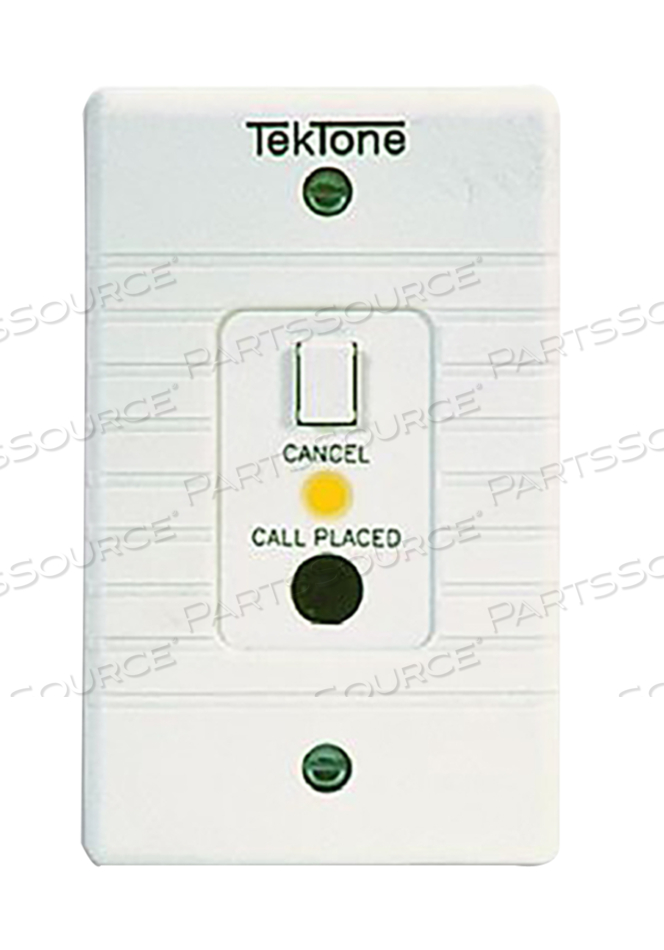

VISUAL-ONLY ADDRESSABLE PATIENT STATION by TekTone Sound & Signal Mfg., Inc.

The SF380A Visual-Only Patient Station controls two dome lights, senses button presses and switch closures, and provides routine, bath emergency, and code calls (when partnered with the proper auxiliary stations) to the Tek-CARE NC300II central equipment for display at the system master stations. The SF380A provides routine call input via a push-button call cord, and can signal a medium priority cord out call. When used with an emergency station, it provides a medium priority bath emergency call. When used with a code station, it provides a high priority code call. The SF380A also has a smoke detector input. Station addressing uses a 7-position dipswitch. Six switches set the station address; the seventh switch determines whether lamps are supervised.

• Attractive, flame retardant type plastic faceplate. All electronic components are circuit board mounted
• Lighted CALL-PLACED Indicator
• Call-reset CANCEL Push-button
• Signaling for ROUTINE, BATH EMERGENCY, CODE CALL and FIRE with smoke detectors
• Low power requirements
• Addressable - requires no 'IR' series station
• Station-bus connector pin-compatible with existing NC300 'IR' series stations
• Flame Retardant type White Plastic Faceplate

The SF380A Visual-Only Patient Station controls two dome lights, senses button presses and switch closures, and provides routine, bath emergency, and code calls (when partnered with the proper auxiliary stations) to the Tek-CARE NC300II central equipment for display at the system master stations. The SF380A provides routine call input via a push-button call cord, and can signal a medium priority cord out call. When used with an emergency station, it provides a medium priority bath emergency call. When used with a code station, it provides a high priority code call. The SF380A also has a smoke detector input. Station addressing uses a 7-position dipswitch. Six switches set the station address; the seventh switch determines whether lamps are supervised.

• Attractive, flame retardant type plastic faceplate. All electronic components are circuit board mounted
• Lighted CALL-PLACED Indicator
• Call-reset CANCEL Push-button
• Signaling for ROUTINE, BATH EMERGENCY, CODE CALL and FIRE with smoke detectors
• Low power requirements
• Addressable - requires no 'IR' series station
• Station-bus connector pin-compatible with existing NC300 'IR' series stations
• Flame Retardant type White Plastic Faceplate
