OEM#: 5JNew OEM Original Outright

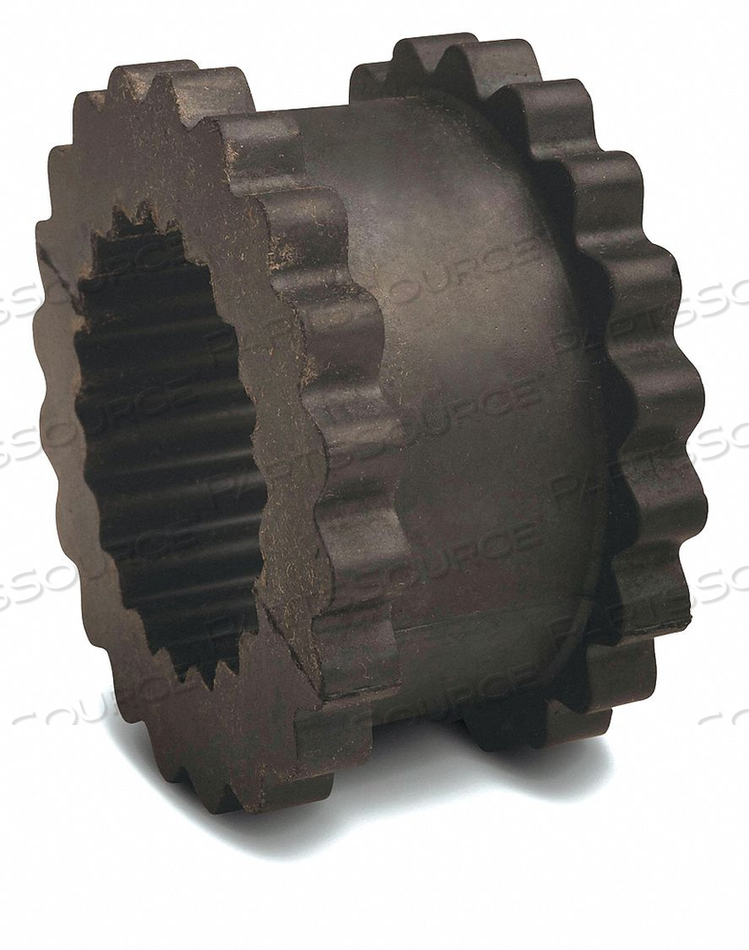

EPDM SLEEVE ONE-PIECE CONSTRUCTION COUPLING by TB Wood's

Your price:
$30.76 eachEstimated to ship by 12/06 if ordered before 4:30 PM EST
HomeTB Wood's5j
EPDM SLEEVE ONE-PIECE CONSTRUCTION COUPLING by TB Wood's
EPDM SLEEVE ONE-PIECE CONSTRUCTION COUPLING by TB Wood's

OEM#: 5J
EPDM SLEEVE ONE-PIECE CONSTRUCTION COUPLING by TB Wood's

New OEM Original Outright
Your price:
$30.76 each
Estimated to ship by 12/06 if ordered before 4:30 PM EST
Asset Information
ADD TO LIST
Product Overview

New Sure-Flex Plus EPDM and Neoprene sleeves are best-in-class for coupling performance and value. Their 4-way flexing action absorbs virtually all types of shock, misalignment, and end float. With Sure-Flex couplings, the need for lubrication and maintenance is eliminated.

Technical Specs
P/N: 5J Key Specs
Item
EPDM SLEEVE ONE-PIECE CONSTRUCTION COUPLING
OEM
TB Wood's
OEM #
5J
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Blowers, Compressors, Conveyors, Mixers, Motors, Pumps
Flange Type - Sleeve Couplings
JE
HP Rating @ 100 RPM
0.5 hp
HP Rating @ 1200 RPM
5.94 hp
HP Rating @ 1800 RPM
8.91 hp
HP Rating @ 3600 RPM
17.82 hp
Insert Design - Couplings
One-Piece Solid
Item - Sleeve Coupling Inserts
Sleeve Coupling Insert
Material - Inserts
EPDM Rubber
Max. RPM
7,600 RPM
Operating Temp.
-30 Degrees to 275 Degrees F
Outside Dia.
2.94 in
Rated Torque
312 in-lb
Size - Sleeve Couplings
5
Width
1.56 in

New Sure-Flex Plus EPDM and Neoprene sleeves are best-in-class for coupling performance and value. Their 4-way flexing action absorbs virtually all types of shock, misalignment, and end float. With Sure-Flex couplings, the need for lubrication and maintenance is eliminated.
