OEM#: 0400-125WTIBB-TNew OEM Original Outright

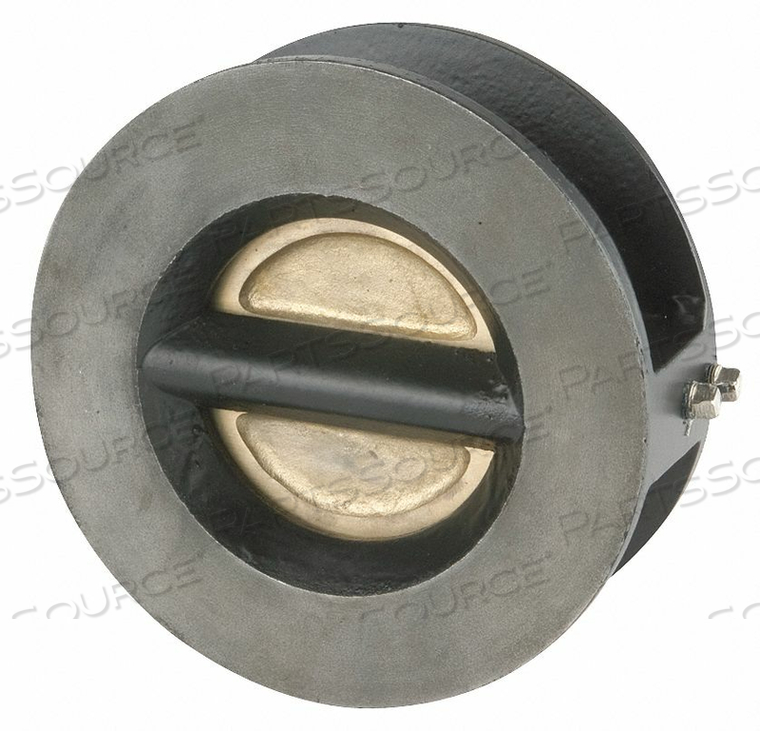

DISC CHECK VALVE CAST IRON 4 FLANGE by SSI

Your price:
$178.08 eachEstimated to ship by 12/09 if ordered before 4:30 PM EST
HomeSSI0400125wtibbt
DISC CHECK VALVE CAST IRON 4 FLANGE by SSI
DISC CHECK VALVE CAST IRON 4 FLANGE by SSI

OEM#: 0400-125WTIBB-T
DISC CHECK VALVE CAST IRON 4 FLANGE by SSI

New OEM Original Outright
Your price:
$178.08 each
Estimated to ship by 12/09 if ordered before 4:30 PM EST
Asset Information
ADD TO LIST
Technical Specs
P/N: 0400-125WTIBB-T Key Specs
Item
DISC CHECK VALVE CAST IRON 4 FLANGE
OEM
SSI
OEM #
0400-125WTIBB-T
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application - Valves
Process Piping
Body Material - Valves
Cast Iron
Connection Type - Check Valves
Flange x Flange
Country of Origin
China
Cracking Pressure - Check Valves
0.3 to 1.25 psi
Flow - Valves
1,000 gpm
Flow Design
Single
Full Flow - Valves
Yes
Item - Check Valves
Check Valve
Length
6-7/8 in
Max Steam Pressure - Valves
200 psi WSP
Max Temperature - Valves
300 Degrees F
Max Water Pressure - Valves
200 psi @ 250 Degrees F
Mechanism and Body Design
Inline Double Disc
Min Temperature - Valves
60 Degrees F
Mounting Orientation - Check Valves
Horizontal, Vertical
Overall Height
6-7/8 in
Pipe or Tube Size - Check Valves
4 in
Seal Material - Check Valves
Buna-N
Seat Material - Check Valves
Buna-N
Spring Material - Check Valves
Stainless Steel
Standards
API 598 and FM Approval
Width
2-1/2 in
