OEM#: 8501RSD41V53New OEM Original Outright

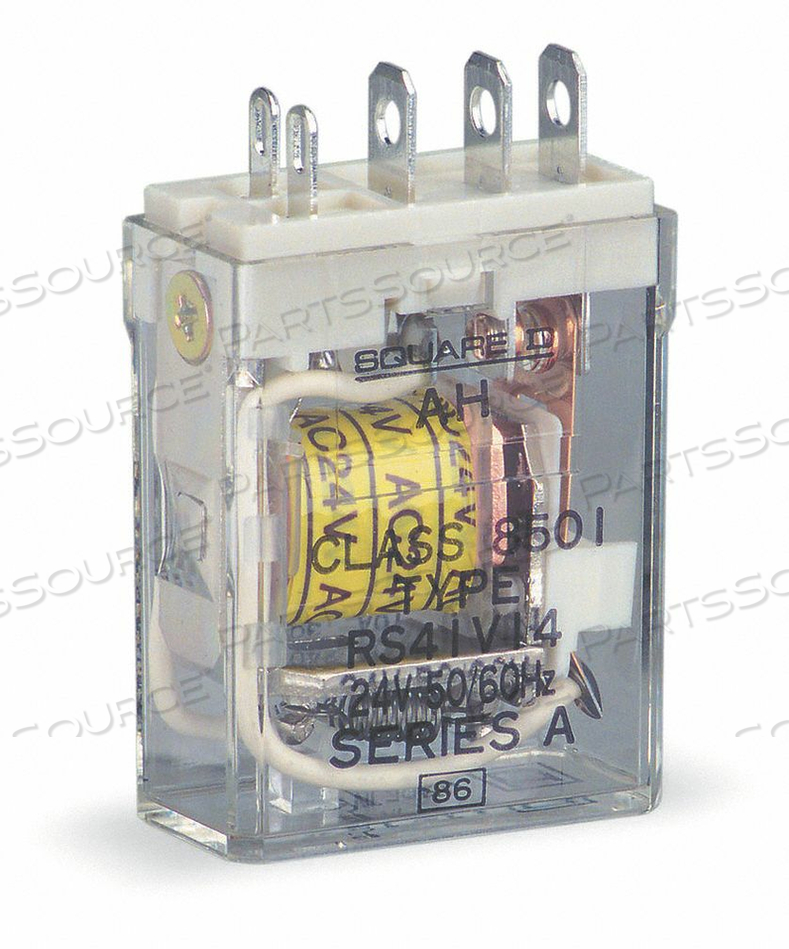

H8078 GEN PURPOSE RELAY 5 PIN SQUARE 24VDC by Square D
Your price:
$46.72 each $67.83 Savings: $21.11 (31%)
Ship date will be provided after ordering
OEM#: 8501RSD41V53H8078 GEN PURPOSE RELAY 5 PIN SQUARE 24VDC by Square D
New OEM Original Outright
Your price:
$46.72 each
$67.83 Savings: $21.11 (31%)
Ship date will be provided after ordering
Asset Information
ADD TO LIST
Technical Specs
P/N: 8501RSD41V53 Key Specs
Item
H8078 GEN PURPOSE RELAY 5 PIN SQUARE 24VDC
OEM
Square D
OEM #
8501RSD41V53
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
AC Contact Rating - Relay
12A @ 240V, 15A @ 120V
Base Type - Plug In Relay
Square
Body Depth - Relay
1.07 in
Body Height - Relay
1.37 in
Body Width - Relay
0.55 in
Coil Volts
24V DC
Contact Form - Relay
SPDT
Contact Material
Silver Cadmium Oxide
DC Contact Rating - Relay
15A @ 28V
HP @ 120V
Not Rated
HP @ 240V
Not Rated
Item - Relay
General Purpose Relay
Mounting - Relay
Plug In
Number of Pins - Relay
5
Overall Height - Relay
1.65 in
Power Consumption - Relay
1.1 W
Push To Test
No
Socket Code - Relay
L
Standards
CE Marked, CSA Certified, UL Listed
Status Indicator
No
