OEM#: FSP300-60PLNNew OEM Original Outright

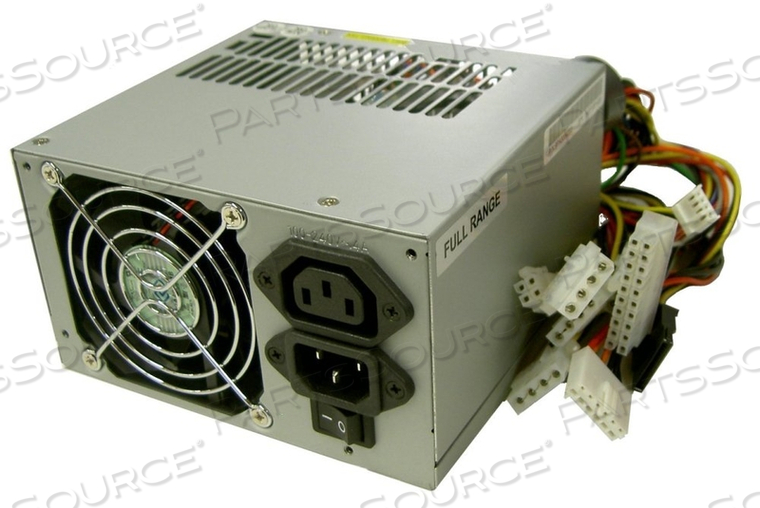

300W ATX12V SWITCHING POWER SUPPLY by Sparkle Power Inc.

Your price:
$260.69 eachEstimated to ship by 10/28 if ordered before 3:30 PM EST
HomeSparkle Power Inc.fsp30060pln
BUYING OPTIONS:
New OEM Original
Outright Purchase
$260.69 each
Warranty: 90 Day
Refurbished
Outright Purchase
$325.58 each
Warranty: 6 Month
SBA
300W ATX12V SWITCHING POWER SUPPLY by Sparkle Power Inc.
300W ATX12V SWITCHING POWER SUPPLY by Sparkle Power Inc.

OEM#: FSP300-60PLN
300W ATX12V SWITCHING POWER SUPPLY by Sparkle Power Inc.

New OEM Original Outright
Your price:
$260.69 each
Estimated to ship by 10/28 if ordered before 3:30 PM EST
Asset Information
ADD TO LIST
Product Overview

  • Complied with ATX and ATX12V standard
  • Active Power Factor Correction (PFC) meet EN61000-3-2
  • High efficiency and reliability
  • Compatible with European Union Directive 2002/95/EC
  • (Restriction on Hazardous Substances)
  • Remote ON/OFF function
  • Internal 12V DC fan included
  • Noise Killer (thermal fan speed control function)
  • Low noise and ripple
  • Output over voltage, short circuit, and over current protection
  • 100% Hi-pot, ATE, and burn-in tested
  • Re-settable power shut down
  • Complies with FCC part 15 subpart J class B, and CISPR 22
  • class B
  • Approved by CUL/UL60950-1,TUV EN60950-1, NEMKO
  • EN60950-1 (CB Report), CE ,CCC,FCC,EMC
  • Dielectric Withstand: Primary frame ground 1800V AC for
  • 1sec
  • 65% Efficiency minimum measured at nominal AC main
  • voltage and frequency with maximum load on all outputs
  • Less than 20ms rise time
  • 17ms minimum at nominal input voltage hold-up Time
  • Power on delay time 100 - 500ms, off
  • delay 1ms minimum (TTL and CMOS compatible) Power Good Signal
  • Leakage Current not exceed 0.75mA at 115Vac/60Hz
  • MTBF 100,000 hours on maximum load at +25°C

Technical Specs
P/N: FSP300-60PLN Key Specs
Item
300W ATX12V SWITCHING POWER SUPPLY
OEM
Sparkle Power Inc.
OEM #
FSP300-60PLN
Condition
New OEM Original
Returnable
No
Warranty
90 Day
Frequency
47 - 63 HZ
Humidity
95% on Operating and Storage
Input Amps
Max. 6A (RMS) at 115 VAC, 3A (RMS) at 230 VAC
Input Range
90-264 VAC (RMS), Full Range Input
Inrush Amps
Max 60A at 115VAC, 90A at 230VAC at Cold Start
Length
5.5 IN
Operating Temperature
0°C - +50°C
Storage Temperature
-20°C - +80°C
Watts
300 W

  • Complied with ATX and ATX12V standard
  • Active Power Factor Correction (PFC) meet EN61000-3-2
  • High efficiency and reliability
  • Compatible with European Union Directive 2002/95/EC
  • (Restriction on Hazardous Substances)
  • Remote ON/OFF function
  • Internal 12V DC fan included
  • Noise Killer (thermal fan speed control function)
  • Low noise and ripple
  • Output over voltage, short circuit, and over current protection
  • 100% Hi-pot, ATE, and burn-in tested
  • Re-settable power shut down
  • Complies with FCC part 15 subpart J class B, and CISPR 22
  • class B
  • Approved by CUL/UL60950-1,TUV EN60950-1, NEMKO
  • EN60950-1 (CB Report), CE ,CCC,FCC,EMC
  • Dielectric Withstand: Primary frame ground 1800V AC for
  • 1sec
  • 65% Efficiency minimum measured at nominal AC main
  • voltage and frequency with maximum load on all outputs
  • Less than 20ms rise time
  • 17ms minimum at nominal input voltage hold-up Time
  • Power on delay time 100 - 500ms, off
  • delay 1ms minimum (TTL and CMOS compatible) Power Good Signal
  • Leakage Current not exceed 0.75mA at 115Vac/60Hz
  • MTBF 100,000 hours on maximum load at +25°C
