OEM#: SGF2034V2New OEM Original Outright

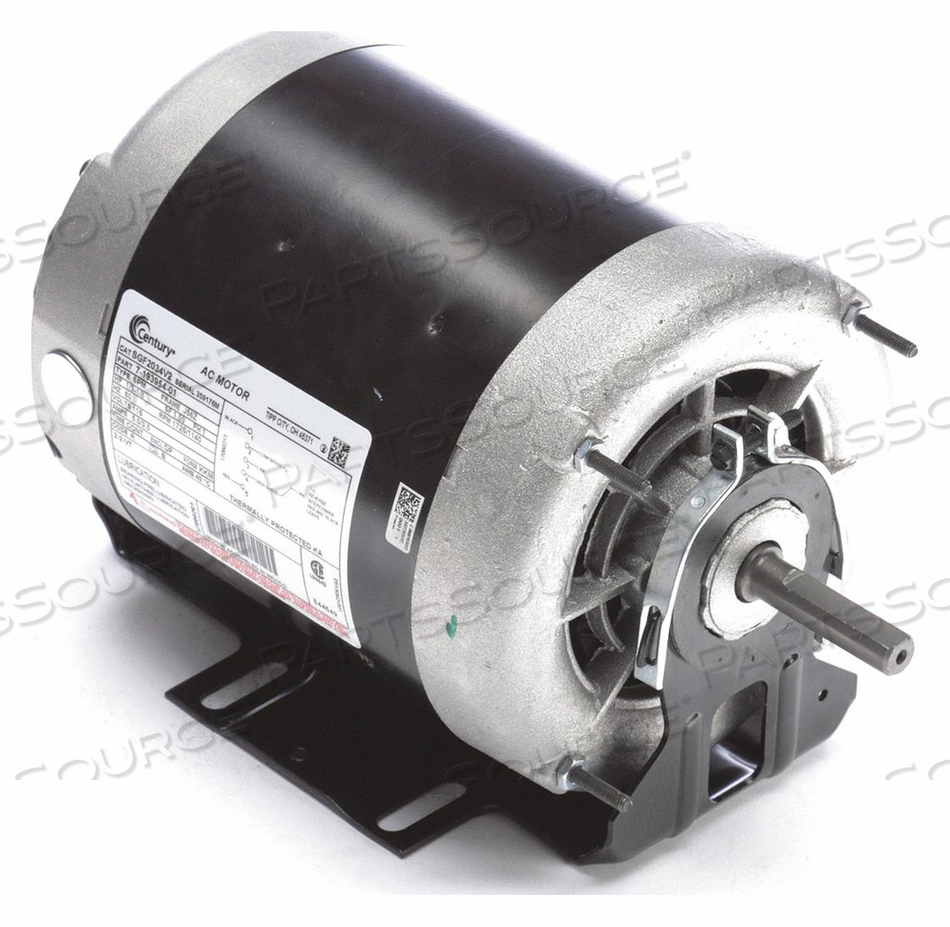

MOTOR SP PH 1/3 HP 1725/1140 115 56Z ODP by Regal Beloit America, Inc. (Century Electric Motors)
Your price:
$462.96 eachShip date will be provided after ordering
OEM#: SGF2034V2MOTOR SP PH 1/3 HP 1725/1140 115 56Z ODP by Regal Beloit America, Inc. (Century Electric Motors)
New OEM Original Outright
Your price:
$462.96 each
Ship date will be provided after ordering
Asset Information
ADD TO LIST
Technical Specs
P/N: SGF2034V2 Key Specs
Item
MOTOR SP PH 1/3 HP 1725/1140 115 56Z ODP
OEM
Regal Beloit America, Inc. (Century Electric Motors)
OEM #
SGF2034V2
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Body Diameter
6-1/2 in
Duty
Continuous
Frame
56Z
Full Load Amps
5/3
HP
1/3 to 1/8
Hz
60
Includes
5/8 in dia Shaft Bushing
Ins. Class
B
Length Less Shaft
9-3/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Cradle Base
Motor Service Factor
1
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Belt Drive Fan/Blower
Motor Thermal Protection
Auto
Mounting Stud Pattern
4-1/8 in x 4-1/8 in
Nameplate RPM
1725/1140
Nominal Efficiency
62 %
Number of Speeds
2
Overall Length
11-3/16 in
Phase
1
Resilient Ring Diameter
2-1/2 in
Ring to Ring Center
8-11/16 in
Shaft Diameter
1/2 in
Shaft Length
2 in
Standards
CSA Certified, UL Recognized
Voltage
115
Voltage Compatibility
115, 120
