OEM#: PM5480New OEM Original Outright

HE/O2 LOW FLOW BLENDER, ABS, 15 TO 40 DEG C, 3 TO 30 LPM PRIMARY OUTLET, 0 TO 30 LPM AUXILIARY OUTLET FLOW, +/-3%, 4.92 IN DP, 2.25 IN X 4.1 by Precision Medical, Inc.

Your price:
$1,704.20 each
$1,790.54 Savings: $86.34 (5%)
HomePrecision Medical, Inc.pm5480
HE/O2 LOW FLOW BLENDER, ABS, 15 TO 40 DEG C, 3 TO 30 LPM PRIMARY OUTLET, 0 TO 30 LPM AUXILIARY OUTLET FLOW, +/-3%, 4.92 IN DP, 2.25 IN X 4.1 by Precision Medical, Inc.
HE/O2 LOW FLOW BLENDER, ABS, 15 TO 40 DEG C, 3 TO 30 LPM PRIMARY OUTLET, 0 TO 30 LPM AUXILIARY OUTLET FLOW, +/-3%, 4.92 IN DP, 2.25 IN X 4.1 by Precision Medical, Inc.

OEM#: PM5480
HE/O2 LOW FLOW BLENDER, ABS, 15 TO 40 DEG C, 3 TO 30 LPM PRIMARY OUTLET, 0 TO 30 LPM AUXILIARY OUTLET FLOW, +/-3%, 4.92 IN DP, 2.25 IN X 4.1 by Precision Medical, Inc.

New OEM Original Outright
Your price:
$1,704.20 each
$1,790.54 Savings: $86.34 (5%)
Asset Information
ADD TO LIST
Product Overview

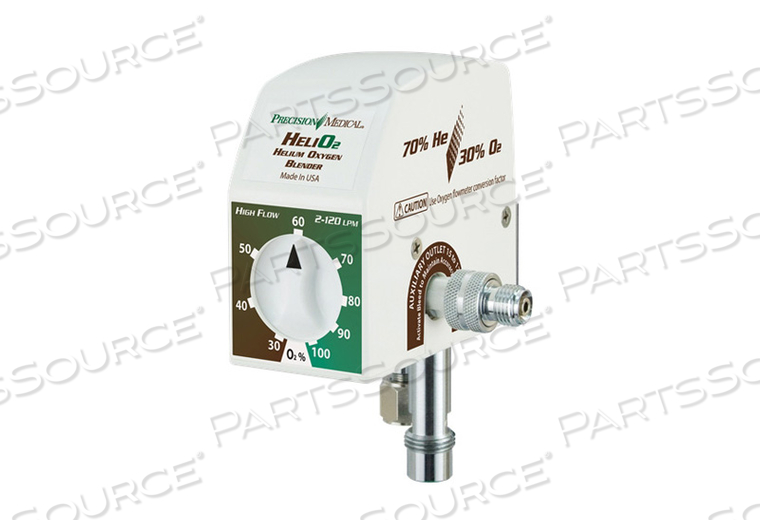

It is the only free-standing pneumatic helio2 blending device on the market today. The ability to turn the bleed control collar on or off provides ± 3% fio2 accuracy as well as quieter operation and maximal heliox tank durations. The tough abs housing makes the device durable and the selection control knob is recessed to prevent inadvertent changes in fio2. The modular design can reduce maintenance time and costs. The device can be easily maintained by all biomed departments, The device is available in 4 models, high flow 80/20 or 70/30 and low flow 80/20 or 70/30. When paired with the optional cylinder clamp and pole, clinician set up time is greatly reduced and tank changes are easy. Multiple accessories can conform to clinician and patient needs.

Technical Specs
P/N: PM5480 Key Specs
Item
HE/O2 LOW FLOW BLENDER, ABS, 15 TO 40 DEG C, 3 TO 30 LPM PRIMARY OUTLET, 0 TO 30 LPM AUXILIARY OUTLET FLOW, +/-3%, 4.92 IN DP, 2.25 IN X 4.1
OEM
Precision Medical, Inc.
OEM #
PM5480
Condition
New OEM Original
Returnable
No
Warranty
90 Day
Accuracy
+/-3%
Auxiliary Outlet Flow Range
0 LPM - 30 LPM
Bleed Flow
3 LPM or less
Bypass Alarm Activation
18 PSI - 22 PSI (1.2 - 1.5 bar)
Depth
4.92 in
FiO2 Accuracy
±3% of Full Scale
Flow Rating
3 to 30 LPM Primary Outlet, 0 to 30 LPM Auxiliary Outlet
Gas Type
Air/Oxygen
Humidity
Maximum 95% Concondensing
Inlet Fitting
Female DISS or NIST
Inlet Pressure Range
30 PSI - 75 PSI (2.1 - 5.2 bar)
Material
ABS
Maximum Combined Flow
≥30 LPM
Number of Auxiliary Outlet Ports
1
Number of Primary Outlet Ports
1
Operating Temperature Range
15°C - 40°C (59°F - 104°F)
Oxygen Concentration Adjustment
30% - 100%
Primary Outlet Flow Range
3 LPM - 30 LPM
Temperature Range
-10°F to 140°F (-23°C to 60°C)
Temperature Rating
15 to 40 Deg C
Equivalents
Certifications
Minority OwnedMinority OwnedVeteran-Owned (VOB)Veteran-Owned (VOB)ISO 13485 Medical DevicesISO 13485 Medical DevicesSBASBA

It is the only free-standing pneumatic helio2 blending device on the market today. The ability to turn the bleed control collar on or off provides ± 3% fio2 accuracy as well as quieter operation and maximal heliox tank durations. The tough abs housing makes the device durable and the selection control knob is recessed to prevent inadvertent changes in fio2. The modular design can reduce maintenance time and costs. The device can be easily maintained by all biomed departments, The device is available in 4 models, high flow 80/20 or 70/30 and low flow 80/20 or 70/30. When paired with the optional cylinder clamp and pole, clinician set up time is greatly reduced and tank changes are easy. Multiple accessories can conform to clinician and patient needs.
