OEM#: H22ANew OEM Original Outright

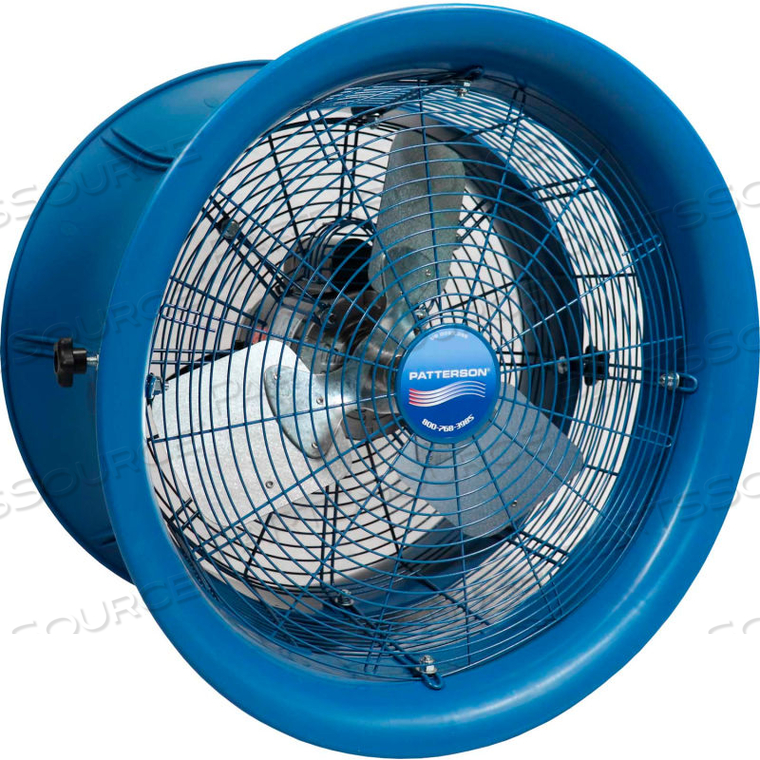

HIGH VELOCITY FAN, 22", 115V, 1 PH W/ YOKE MOUNT by Patterson Fan Company, Inc.
Your price:
$1,045.06 each
OEM#: H22AHIGH VELOCITY FAN, 22", 115V, 1 PH W/ YOKE MOUNT by Patterson Fan Company, Inc.
New OEM Original Outright
Your price:
$1,045.06 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: H22A Key Specs
Item
HIGH VELOCITY FAN, 22", 115V, 1 PH W/ YOKE MOUNT
OEM
Patterson Fan Company, Inc.
OEM #
H22A
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Amps
6
Approvals Or Certifications
OSHA Compliant
Assembly
Assembled
Blade Quantity
3
Blade Type
Galvanized Aluminum
Cfm High
5,570
Color Finish
Blue
Construction
High Impact Polypropylene
Cooling Sq. Ft.
3,600
Country of Origin
USA
Decibels (Dba)
73.6
Depth Inches
16
Distance Air Throw Feet
100'
Drive Type
Direct Drive
Fan Diameter Inches
22
Fan Type
Industrial
Height Inches
29
Hertz (Hz)
60
Horsepower
1/2
Includes
Yoke Mount Bracket
Max Ambient Temperature °F
104
Model
B1922649
Motor Type
Totally Enclosed Air Over (TEAO)
Mount Type
Wall / Column / Pedestal
Oscillating/Non-Oscillating
Non-Oscillating
Phase
1
Power Cord Length Feet
12
Power Cord Type
SJT 3 Conductor
Rpm High
1,725
Speeds
1
Voltage
115
Watts
345
Weight Lbs
55.2
Width Inches
29
