OEM#: TDX400S277/480New OEM Original Outright

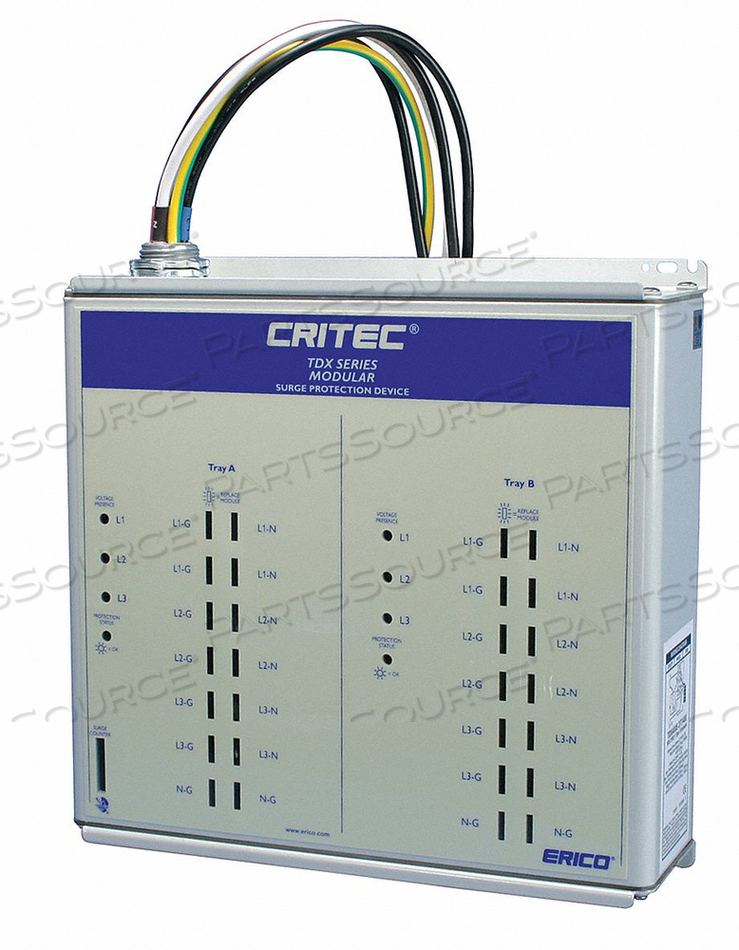

SURGE PROTECTION DEVICE 277/480V WYE 3PH by Nvent Erico

Your price:
$6,447.91 each
$6,500.60 Savings: $52.69 (1%)
Estimated to ship by 11/29 if ordered before 4:30 PM EST
HomeNvent Ericotdx400s277480
SURGE PROTECTION DEVICE 277/480V WYE 3PH by Nvent Erico
SURGE PROTECTION DEVICE 277/480V WYE 3PH by Nvent Erico

OEM#: TDX400S277/480
SURGE PROTECTION DEVICE 277/480V WYE 3PH by Nvent Erico

New OEM Original Outright
Your price:
$6,447.91 each
$6,500.60 Savings: $52.69 (1%)
Estimated to ship by 11/29 if ordered before 4:30 PM EST
Asset Information
ADD TO LIST
Technical Specs
P/N: TDX400S277/480 Key Specs
Item
SURGE PROTECTION DEVICE 277/480V WYE 3PH
OEM
Nvent Erico
OEM #
TDX400S277/480
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Amps
400 K
Basic Material
Metallic
Chase Nipple Size
3/4 in
Color
Gray
Country of Origin
China
Depth
3.25 in
Enclosure Material
Metal
Enclosure NEMA Rating
1
Filtering
No
IP Rating
20
Includes
Audible Alarm, Status Indicator Flag, Voltage Free Contact, Voltage Presence LED
Length
10.4 in
Lightning Impulse Current
25 kA
Max Continuing Operating Voltage
320/550V AC
Max Operating Temperature
176 Degrees F
Max Surge Current per Mode
400kA
Max Surge Current per Phase
400 kA
Min Operating Temperature
-40 Degrees F
Modes of Protection
L-G, L-L, L-N, N-G
Modular
Yes
Mounting Location
Externally Mounted
Mounting Style
Chase Nipple/Panel
Nominal Discharge Current
160 kA
Number of Poles
4
Number of Wires
4 Wires + Ground
Phase
3
Short Circuit Current Rating
200kA
Standards
ANSI/IEEE, C-Tick, CE, IEC 61643-1, UL 1449 Edition 4 Type 1/2
System Connection
Parallel
UL SPD Type
Type 1/2
Voltage
277/480V AC Wye
Voltage Protection Rating
1000V (N-G), 1200V (L-G, L-N), 1800V (L-L)
Width
10.32 in
Wire Gauge
10 AWG
