OEM#: L12XA452BP00061New OEM Original Outright

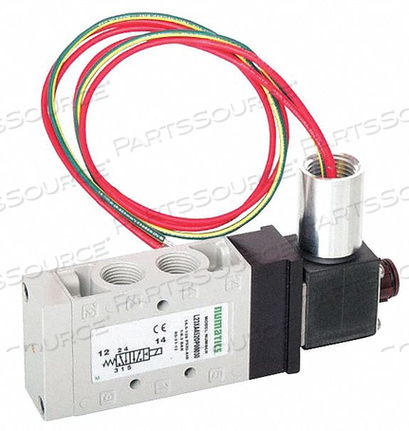

HAZARDOUS LOCATION SOLENOID 1/4 24VDC by Numatics

Your price:
$514.99 eachEstimated to ship by 01/01 if ordered before 4:30 PM EST
HomeNumaticsl12xa452bp00061
HAZARDOUS LOCATION SOLENOID 1/4 24VDC by Numatics
HAZARDOUS LOCATION SOLENOID 1/4 24VDC by Numatics

OEM#: L12XA452BP00061
HAZARDOUS LOCATION SOLENOID 1/4 24VDC by Numatics

New OEM Original Outright
Your price:
$514.99 each
Estimated to ship by 01/01 if ordered before 4:30 PM EST
Asset Information
ADD TO LIST
Technical Specs
P/N: L12XA452BP00061 Key Specs
Item
HAZARDOUS LOCATION SOLENOID 1/4 24VDC
OEM
Numatics
OEM #
L12XA452BP00061
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temp. Range
-10 Degrees to 115 Degrees F
Body Style
Body Ported
Coefficient of Volume
1
Electrical Connections
Hardwired
Max. CFM - Valves
46.0
NEMA Classification
NEMA 4
Operational Pressure Range
0 to 150 psi
Overall Height
3 1/2 in
Overall Length
5 1/2 in
Overall Width
1 1/2 in
Override
Non-Locking Flush
Pilot Port Size
1/8 in NPT
Pilot Pressure
14.5 to 100 psig
Pipe Size
1/4 in
Pneumatic Valves Product Group
Solenoid Air Control Valve
Power Consumption
1.8 W
Shifting Technology
Spool & Sleeve
Standards
Class I Groups C and D, Class II Groups E, F, and G (approval Doc. UL VAPT E12264))
Valve Actuator / Return
Solenoid Air Pilot / Spring
Valve Vacuum Range
0 to 28 in Hg
Valve Ways and Positions
4-Way/2-Position
Voltage
24V DC
