OEM#: SUCFPL208-24New OEM Original Outright

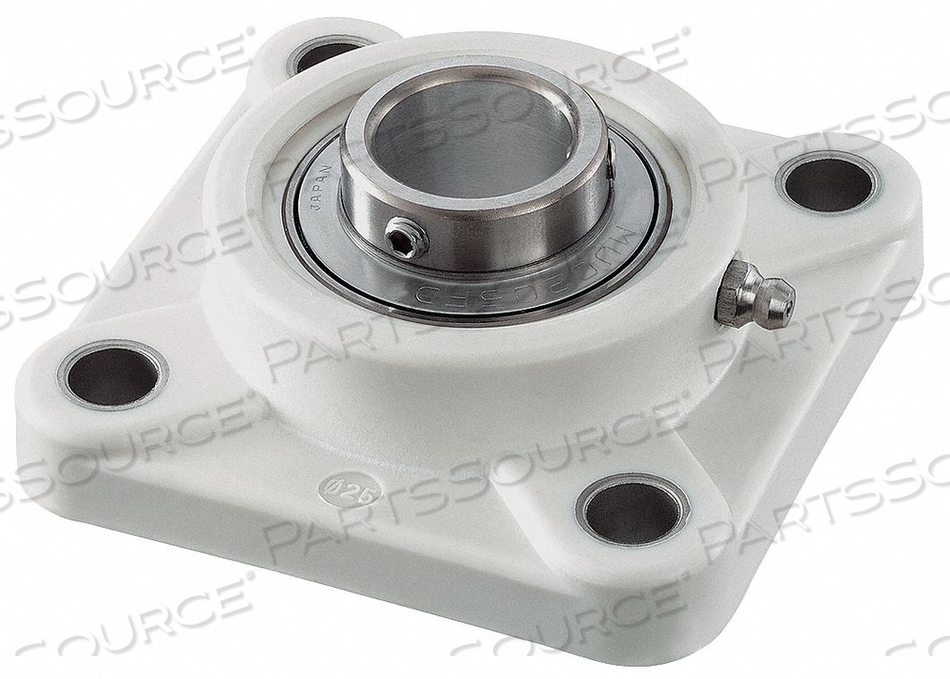

FLANGE BEARING 4-BOLT BALL 1-1/2 BORE by NTN
Your price:
$541.97 each
OEM#: SUCFPL208-24FLANGE BEARING 4-BOLT BALL 1-1/2 BORE by NTN
New OEM Original Outright
Your price:
$541.97 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: SUCFPL208-24 Key Specs
Item
FLANGE BEARING 4-BOLT BALL 1-1/2 BORE
OEM
NTN
OEM #
SUCFPL208-24
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Housing Material Type
PBT
Bearing Insert Material
52100 Chrome Steel
Bearing Insert Type
Ball
Bearing Lubrication
Caltex FM EP or Equivalent USDA-H1 Grease
Bolt Hole Center-to-Center
102 mm
Bolt Size
M12
Bore Dia.
1 1/2 in
Dimension A
5/8 in
Dimension B
1 15/16 in
Dimension E
4 in
Dimension G
43/64 in
Dimension S
35/64 in
Dynamic Load Capacity
5,600 lb
Finish
None
Mounted Bearing Item
4-Bolt Flange Bearing
Overall Height
130 mm
Overall Length
130 mm
Overall Width
53.2 mm
Series
Corrosion Resistant with USDA-H1 Grease
Shaft Locking Type
Set Screw
Static Load Capacity
3,210 lb
Temp. Range
-4 Degrees to 230 Degrees F
