OEM#: SUCF206-19New OEM Original Outright

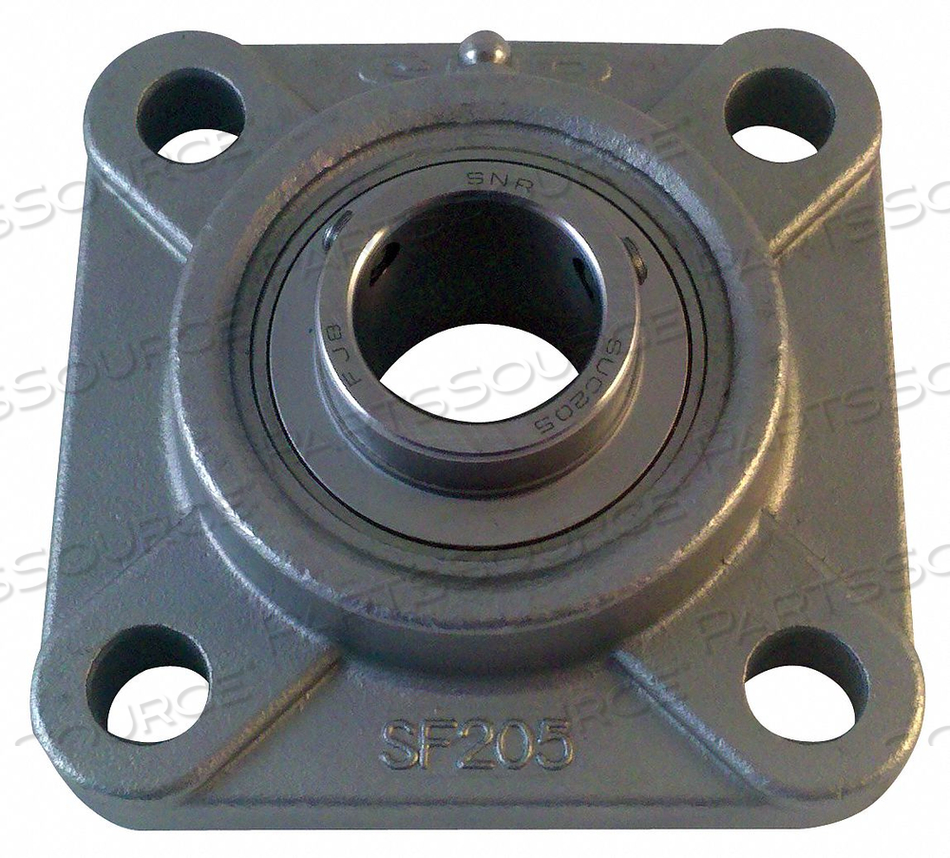

FLANGE BEARING 4-BOLT BALL 1-3/16 BORE by NTN
Your price:
$490.28 each
OEM#: SUCF206-19FLANGE BEARING 4-BOLT BALL 1-3/16 BORE by NTN
New OEM Original Outright
Your price:
$490.28 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: SUCF206-19 Key Specs
Item
FLANGE BEARING 4-BOLT BALL 1-3/16 BORE
OEM
NTN
OEM #
SUCF206-19
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Housing Material Type
Stainless Steel
Bearing Insert Material
440C Stainless Steel
Bearing Insert Type
Ball
Bearing Lubrication
Caltex FM EP or Equivalent USDA-H1 Grease
Bolt Hole Center-to-Center
83 mm
Bolt Size
M10
Bore Dia.
1 3/16 in
Dimension A
108 mm
Dimension E
83 mm
Dimension G
13 mm
Dimension L
31 mm
Dimension N
15.9 mm
Dimension S
12 mm
Dynamic Load Capacity
3,440 lb
Finish
Chrome
Mounted Bearing Item
4-Bolt Flange Bearing
Overall Height
40.2 mm
Overall Length
108 mm
Overall Width
108 mm
Series
Corrosion Resistant with USDA-H1 Grease
Shaft Locking Type
Set Screw
Static Load Capacity
2,580 lb
Temp. Range
-4 Degrees to 248 Degrees F
