OEM#: SK1SI75Y-56C-10:1New OEM Original Outright

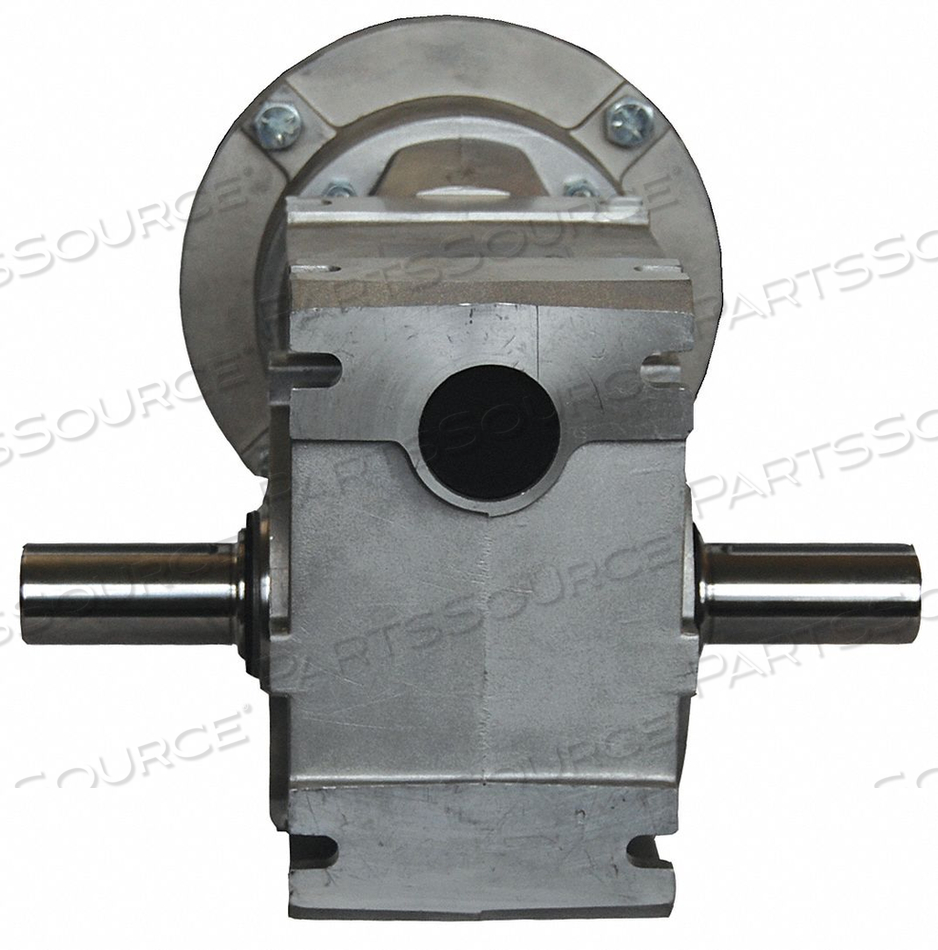

SPEED REDUCER RIGHT ANGLE 56C 10 1 by Nord

Your price:
$1,521.63 eachEstimated to ship by 11/07 if ordered before 4:30 PM EST
HomeNordsk1si75y56c101
SPEED REDUCER RIGHT ANGLE 56C 10 1 by Nord
SPEED REDUCER RIGHT ANGLE 56C 10 1 by Nord

OEM#: SK1SI75Y-56C-10:1
SPEED REDUCER RIGHT ANGLE 56C 10 1 by Nord

New OEM Original Outright
Your price:
$1,521.63 each
Estimated to ship by 11/07 if ordered before 4:30 PM EST
Asset Information
ADD TO LIST
Technical Specs
P/N: SK1SI75Y-56C-10:1 Key Specs
Item
SPEED REDUCER RIGHT ANGLE 56C 10 1
OEM
Nord
OEM #
SK1SI75Y-56C-10:1
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearings
Ball
Bore Dia.
1 469/500 in
Finish
Tural
Frame
56C
Gear Type
Worm
Housing Material
Aluminum
Input RPM
1,750
Lubrication
Food Grade Synthetic
Max. Input HP
6.25 hp
Max. Output Torque
2,009 in-lb
Mounting
Universal Foot and Flange-Mount
Nominal Output RPM
175
Nominal Ratio
10:1
Number of Stages
1
Output Shaft Dia.
1 3/8 in
Output Shaft Height
3 25/64 in
Output Torque @ 1 HP
346 in-lb
Output Torque @ 1/2 HP
164 in-lb
Output Torque @ 1/3 HP
111 in-lb
Output Torque @ 1/4 HP
84 in-lb
Output Torque @ 1/6 HP
53 in-lb
Output Torque @ 3/4 HP
249 in-lb
Overall Length
5.13 in
Overhung Load
2,250 lb
Pinion Material
Hardened Steel
Rotation
Reversible
Seal Type
Double Lip
Shaft Orientation
Right Angle
Single/Double Output/Universal
Universal
Solid/Hollow Output Shaft
Solid/Hollow
Speed Reducer Type
Right Angle
Standards
IEC, NEMA
Worm Center Distance
2.95 in
Worm Gear Material
Fine-Grained Bronze Alloy
