OEM#: FLT753New OEM Original Outright
PIG OIL & SEDIMENT CATCH BASIN FILTRATION INSERT SYSTEM - LARGE by New Pig Corporation
Your price:
$548.40 each
View All
OEM#: FLT753PIG OIL & SEDIMENT CATCH BASIN FILTRATION INSERT SYSTEM - LARGE by New Pig Corporation
New OEM Original Outright
Your price:
$548.40 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview

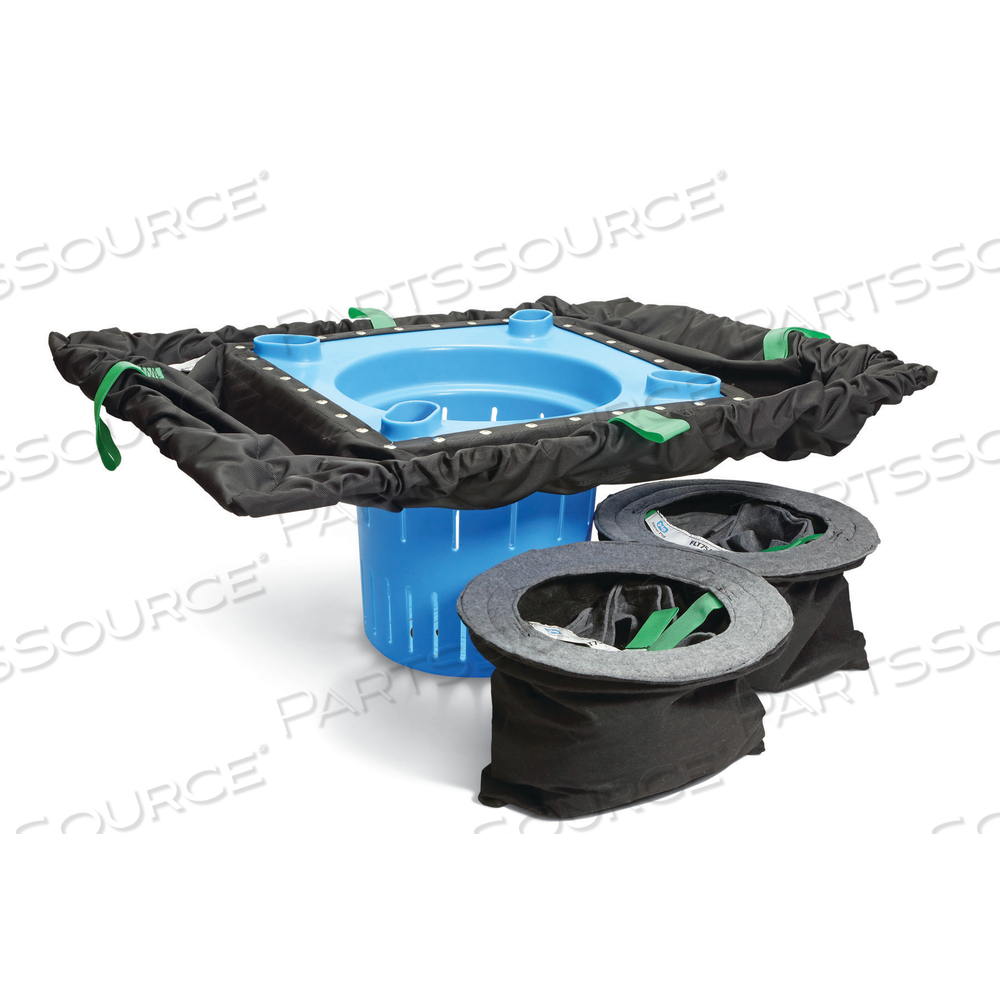

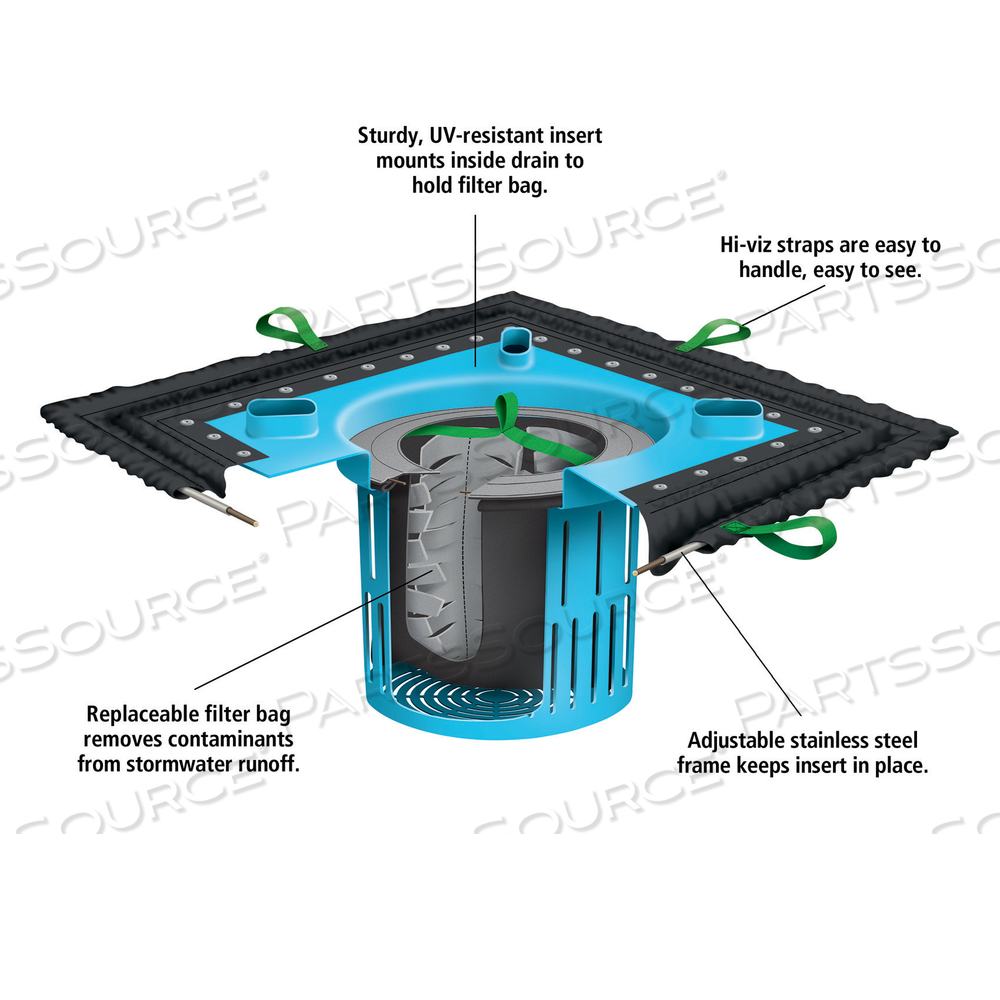

Storm drain filter changeouts take 10 seconds! Semi-permanent catch basin insert with adjustable frame uses a replaceable filter bag that removes oil and sediment from stormwater runoff. Install the drain insert once, then replace just the filter bag.
Features
- Includes 2 drop-in filter bags

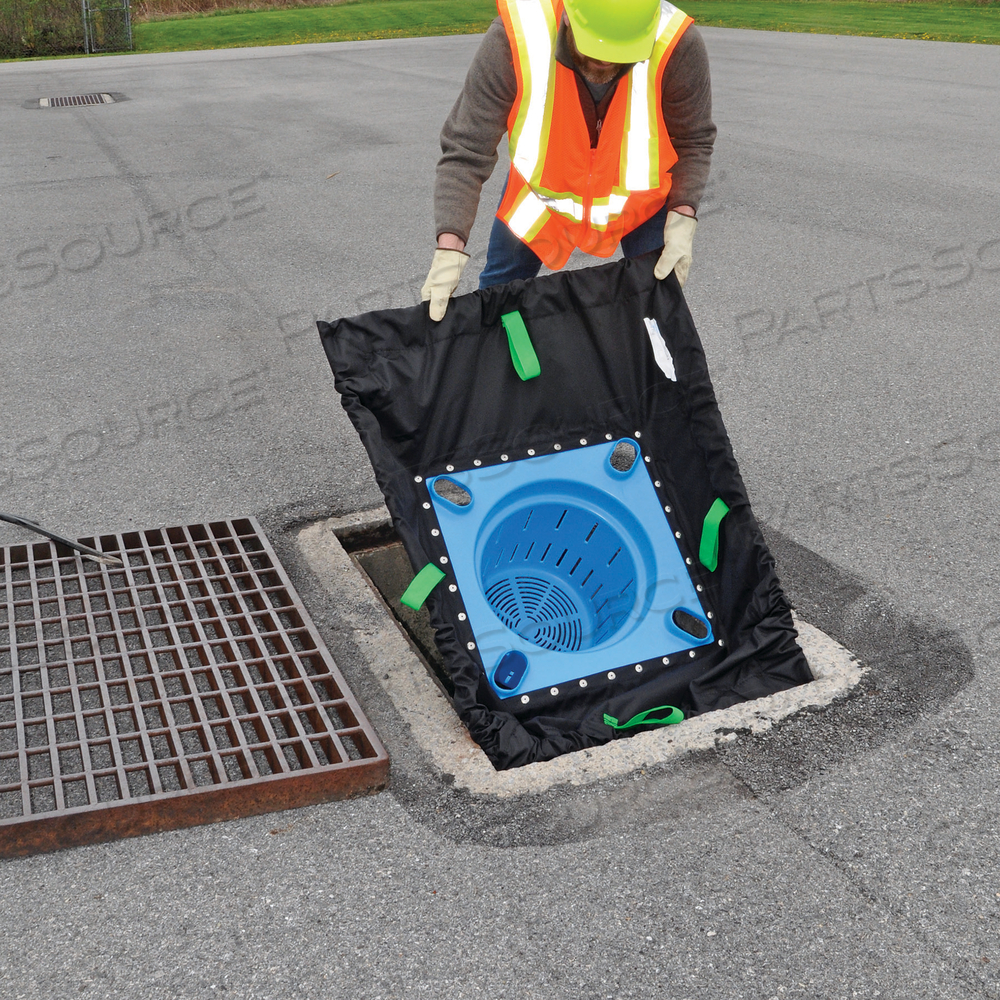

- Filter bag replacement is an easy, one-person job!
- For drains 24" to 37" W x 35" to 49" L
- Adjustable stainless-steel frame will not fall in the drain like frameless inserts
- Drop the replaceable filter bag remove oil and sediment from your stormwater runoff
- Large overflow ports prevent your parking lot from flooding
- Replaceable filter bags save you money and reduce waste, dispose and replace only the filter bag
- Filter bag holds up to 40 pounds of oil and sediment, replace when bag is clogged or full
- High visibility, durable straps make it easy to lift used filter bags from your drain insert
- UV-resistant drain insert will last years, filter bags need replaced when full or clogged
- Below-grate design is ideal for areas with light to moderate vehicle traffic
Technical Specs
P/N: FLT753 Key Specs
Item
PIG OIL & SEDIMENT CATCH BASIN FILTRATION INSERT SYSTEM - LARGE
OEM
New Pig Corporation
OEM #
FLT753
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Absorbency
Up to 1 gal.
Application
Semi-Permanent
Composition
Insert Strips and Ring - PET, Straps - PET, Edge Fabric - Urethane Coated Nylon, Basket - HDPE, Expandable Frame - Stainless Steel, Filtration Bag Support Ring - Steel
Country of Origin
China
Drain Shape
Square, Rectangular
Max Flow Rate
120 gal./Minute
Opening Dimensions
10" Dia.
Product Brand
PIG
Product Color
Black/Blue/Gray
Style
Inside the Drain
Substance Filtered
Fuels, Oil, Sediment, Debris
UV Resistant
Yes
Use With
Storm Drains 24" to 37" W & 35" to 49" L
Storm drain filter changeouts take 10 seconds! Semi-permanent catch basin insert with adjustable frame uses a replaceable filter bag that removes oil and sediment from stormwater runoff. Install the drain insert once, then replace just the filter bag.
