OEM#: IB12-2-200GNew OEM Original Outright

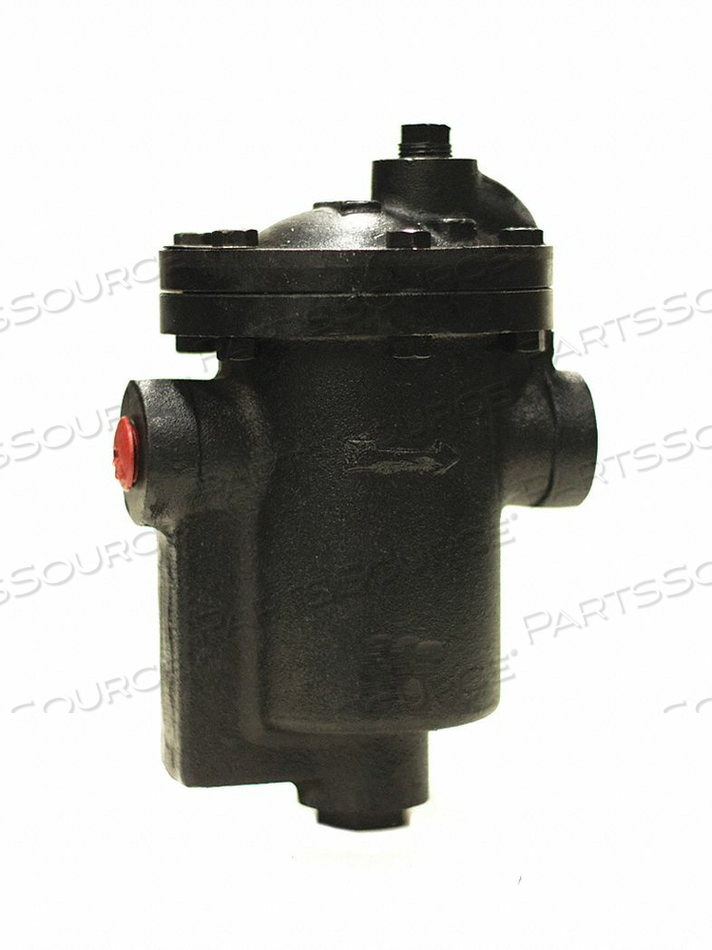

STEAM TRAP 1/2 NPT CONNECTIONS SS DISC by Mepco

Your price:
$271.02 each
$274.18 Savings: $3.16 (1%)
Estimated to ship by 10/29 if ordered before 4:30 PM EST
HomeMepcoib122200g
STEAM TRAP 1/2 NPT CONNECTIONS SS DISC by Mepco
STEAM TRAP 1/2 NPT CONNECTIONS SS DISC by Mepco

OEM#: IB12-2-200G
STEAM TRAP 1/2 NPT CONNECTIONS SS DISC by Mepco

New OEM Original Outright
Your price:
$271.02 each
$274.18 Savings: $3.16 (1%)
Estimated to ship by 10/29 if ordered before 4:30 PM EST
Asset Information
ADD TO LIST
Technical Specs
P/N: IB12-2-200G Key Specs
Item
STEAM TRAP 1/2 NPT CONNECTIONS SS DISC
OEM
Mepco
OEM #
IB12-2-200G
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
(F)NPT Connections
1/2 in
Application
Steam
Body Material
Cast Iron
Condensate Capacity Lbs/Hr
1,605
Country of Origin
USA
Disc Material
Stainless Steel
Downstream PSI Range
0 to 120 psi
End to End Length
6-1/2 in
Max Operating PSI
200 psi
Max Temperature
450 Degrees F
NPT Inlet
1/2 in
NPT Outlet
1/2 in
NPT Port
1/2 in
Pipe Configuration
Straight
Pressure Air Vent
Releases Air and Non-Condensable Gases That Adversely Affect The Heat Transfer of A Steam System
Trap Position
Horizontal
Type
Inverted Bucket
