OEM#: R211P03-020New OEM Original Outright

MAXVENTURI WITH POLE MOUNT (DISS) by Maxtec

Your price:
$1,440.83 each
$1,493.47 Savings: $52.64 (4%)
Ship date will be provided after ordering
HomeMaxtecr211p03020

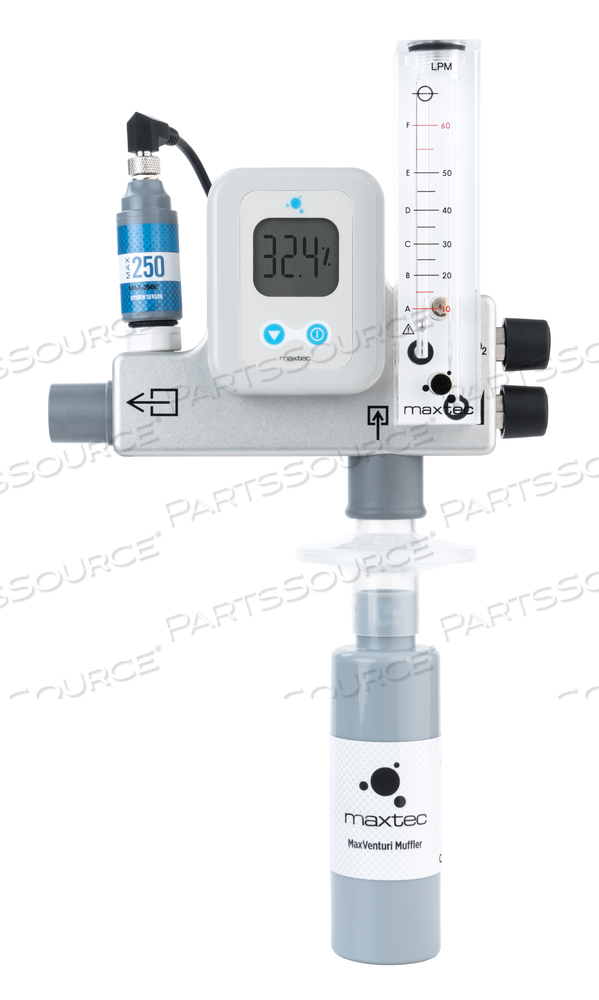

MAXVENTURI WITH POLE MOUNT (DISS) by Maxtec
MAXVENTURI WITH POLE MOUNT (DISS) by Maxtec

OEM#: R211P03-020
MAXVENTURI WITH POLE MOUNT (DISS) by Maxtec

New OEM Original Outright
Your price:
$1,440.83 each
$1,493.47 Savings: $52.64 (4%)
Ship date will be provided after ordering
Asset Information
ADD TO LIST
Product Overview

The MaxVenturi has been specifically designed to work with high-flow humidification systems. Using the Venturi principle, the MaxVenturi allows users to mix ambient air and oxygen without the need for piped medical-grade air. This is the perfect solution for adult high-flow oxygen therapy in almost any environment.

Features
  • Ability to mix ambient air and oxygen without the need for piped medical-grade air
  • All-in-one oxygen/air mixer, MaxO2+ analyzer, and flow meter
  • Independently adjustable O2% and flow
  • Built-in pole clamp
  • Ease-in titration
Technical Specs
P/N: R211P03-020 Key Specs
Item
MAXVENTURI WITH POLE MOUNT (DISS)
OEM
Maxtec
OEM #
R211P03-020
Condition
New OEM Original
Returnable
No
Warranty
24 Month
Accuracy and Linearity
1% of full scale at constant temperature, relative humidity, and pressure calibrated at full-scale
Atmospheric Pressure
800 to 1013 mBars
Battery Life
Approximately 5,000 hours with continuous use
Display Resolution
0.001
Drift of Measurement
< +/-1% of full scale at constant temperature, pressure, and humidity
Expected Sensor Life
MAX-250E > 1,500,000 O2 percent hours minimum (around two years with standard medical usage)
Humidity
0 to 95% (non-condensing)
Low Battery Indication
Battery icon displayed on LCD
Measurement Range
0 to 100%
Operating Temperature
15 ˚C to 40 ˚C (59 ˚F to 104 ˚F)
Power Requirements
Two (2) AA alkaline batteries (2 x 1.5 volts)
Response Time
90% of final value in approximately 15 seconds at 23˚C
Sensor Type
Maxtec MAX-250 Series galvanic fuel cell
Storage Temperature
-15 ˚C to 50 ˚C (5 ˚F to 122 ˚F)
Total Accuracy
±3% actual oxygen level over full operating temperature range
Certifications
SBASBA

The MaxVenturi has been specifically designed to work with high-flow humidification systems. Using the Venturi principle, the MaxVenturi allows users to mix ambient air and oxygen without the need for piped medical-grade air. This is the perfect solution for adult high-flow oxygen therapy in almost any environment.
