OEM#: Y540New OEM Original Outright
INVERTER DUTY MOTOR, 184THTL7776, 2HP, 230/460V, 1200RPM, 3PH, 184TC, TENV by Marathon Motors
Your price:
$2,162.71 each
OEM#: Y540INVERTER DUTY MOTOR, 184THTL7776, 2HP, 230/460V, 1200RPM, 3PH, 184TC, TENV by Marathon Motors
New OEM Original Outright
Your price:
$2,162.71 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview

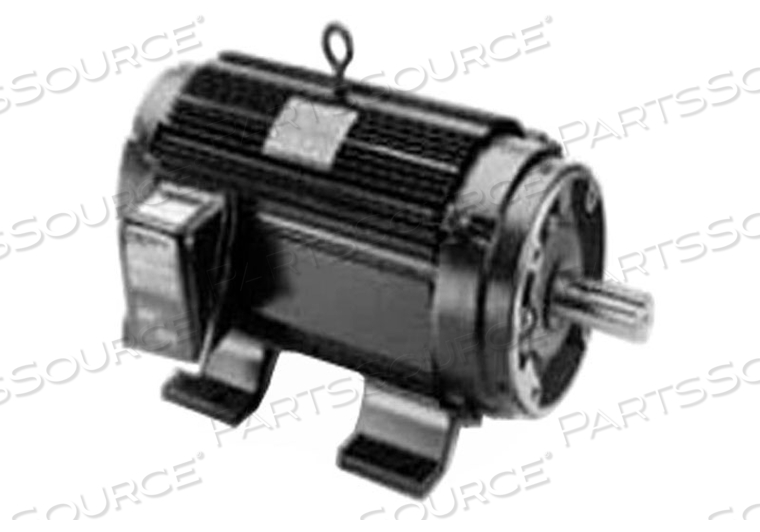

Marathon Motors Inverter Duty Motor, Y540, 184THTL7776, 2HP, 230/460V, 1200RPM, 3PH, 184TC, TENV
Designed for inverter or vector applications where up to a 1000:1 constant Torque speed range is required. Typical use includes: material handling, machine tools, conveyors, crane and hoist, pumps, and other industrial machinery installed in dusty or dirty environments.
Designed for inverter or vector applications where up to a 1000:1 constant Torque speed range is required. Typical use includes: material handling, machine tools, conveyors, crane and hoist, pumps, and other industrial machinery installed in dusty or dirty environments.
Technical Specs
P/N: Y540 Key Specs
Item
INVERTER DUTY MOTOR, 184THTL7776, 2HP, 230/460V, 1200RPM, 3PH, 184TC, TENV
OEM
Marathon Motors
OEM #
Y540
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
60 Hertz Fl Amps
6.6/3.3
60 Hertz Fl Eff
82.50 Percent
60 Hertz Kw
1.49
60 Hertz Sf
1
Ambient Temp C
40
Assembly
F1 (F2 Modification Available)
Bearing-Drive-End
Ball
Catalog No.
Y540
Ce
Y
Country of Origin
USA
Csa
Y
Drive End Bearing Size
6207
Duty
Continuous
Enclosure
TENV
Enclosure Type
Totally Enclosed
Frame
184TC
Horsepower
2
Insulation Class
F
Inverter Speed Range
Constant 1000:1
Ip Code
43
Is_Motor
Yes
Kva-Code
L
Model Number
184THTL7776
Motor Rpm 60Hz
1200
Mounting
C-Face Rigid
Nema Design
A
Opposite End Bearing
Ball
Opposite End Bearing Size
6206
Orientation
Horizontal
Phase
3
Rpm
1200
Rpm Range
1101-1200
Starting Type
Inverter Only
Thermal Protection
Thermostats (Normally Closed)
Ul
Recognized Construction and Protector
Voltage
230/460
Weight In Lbs.
88
Marathon Motors Inverter Duty Motor, Y540, 184THTL7776, 2HP, 230/460V, 1200RPM, 3PH, 184TC, TENV
Designed for inverter or vector applications where up to a 1000:1 constant Torque speed range is required. Typical use includes: material handling, machine tools, conveyors, crane and hoist, pumps, and other industrial machinery installed in dusty or dirty environments.
Designed for inverter or vector applications where up to a 1000:1 constant Torque speed range is required. Typical use includes: material handling, machine tools, conveyors, crane and hoist, pumps, and other industrial machinery installed in dusty or dirty environments.
