OEM#: U007ANew OEM Original Outright

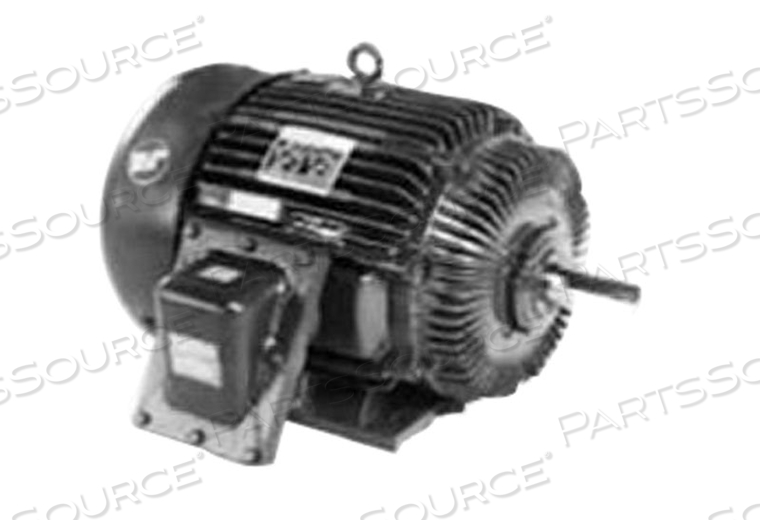

EXPLOSION PROOF MOTOR, 10HP, 230/460V, 1800RPM, 3PH, EPFC by Marathon Motors
Your price:
$2,312.49 eachPast vendor cutoff time. Estimated to ship by 05/14 if ordered before 3:30 PM.
OEM#: U007AEXPLOSION PROOF MOTOR, 10HP, 230/460V, 1800RPM, 3PH, EPFC by Marathon Motors
New OEM Original Outright
Your price:
$2,312.49 each
Past vendor cutoff time. Estimated to ship by 05/14 if ordered before 3:30 PM.
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Marathon Motors Explosion Proof Motor, U007A, 10HP, 230/460V, 1800RPM, 3PH, EPFC
Marathon's Hazardous Duty motors are ideal for a wide variety of applications where hazardous fumes or dust may be present. The motors are available in three phase and single phase with ratings, in stock, from 1/4 HP through 300 HP.
Technical Specs
P/N: U007A Key Specs
Item
EXPLOSION PROOF MOTOR, 10HP, 230/460V, 1800RPM, 3PH, EPFC
OEM
Marathon Motors
OEM #
U007A
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
50 Hertz Fl Amps
23/11.5
50 Hertz Fl Eff
91.5
50 Hertz Hp
7.5
50 Hertz Kw
5.6
50 Hertz Rpm
1500
50 Hertz Sf
1.15
50 Hertz Voltage
190/380
60 Hertz Kw
7.46
60 Hertz Rpms
1800
Ambient Temp C
40
Assembly
F1 (F2 Modification Available)
Bearing-Drive-End
6307
Ce
N
Country of Origin
USA
Csa
N
Drive End Bearing Size
6307
Duty
Continuous
Enclosure
EPFC
Enclosure Type
Explosion Proof
Fl Amps
27-25/12.5
Fl Efficiency
91.7
Frame
215T
Hazardous Location
EXP PROOF CL I GR C&D CL II GR F&G T3B
Hertz
60/50
Horsepower
10
Insulation Class
F
Inverter Speed Range
Constant 2:1
Ip Code
54
Is_Motor
Yes
Kva-Code
H
Model Number
215TTGN6526
Motor Rpm 50Hz
1500
Motor Rpm 60Hz
1800
Mounting
Rigid
Nema Design
B
Opposite End Bearing
Ball
Opposite End Bearing Size
6208
Orientation
Horizontal
Phase
3
Rpm
1800
Rpm Range
1701-1800
Service Factor
1.15
Starting Type
Line or Inverter
Ul
UL Listed
Voltage
208-230/460
Weight
288
Product Overview
Marathon Motors Explosion Proof Motor, U007A, 10HP, 230/460V, 1800RPM, 3PH, EPFC
Marathon's Hazardous Duty motors are ideal for a wide variety of applications where hazardous fumes or dust may be present. The motors are available in three phase and single phase with ratings, in stock, from 1/4 HP through 300 HP.
Technical Specs
P/N: U007A Key Specs
Item
EXPLOSION PROOF MOTOR, 10HP, 230/460V, 1800RPM, 3PH, EPFC
OEM
Marathon Motors
OEM #
U007A
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
50 Hertz Fl Amps
23/11.5
50 Hertz Fl Eff
91.5
50 Hertz Hp
7.5
50 Hertz Kw
5.6
50 Hertz Rpm
1500
50 Hertz Sf
1.15
50 Hertz Voltage
190/380
60 Hertz Kw
7.46
60 Hertz Rpms
1800
Ambient Temp C
40
Assembly
F1 (F2 Modification Available)
Bearing-Drive-End
6307
Ce
N
Country of Origin
USA
Csa
N
Drive End Bearing Size
6307
Duty
Continuous
Enclosure
EPFC
Enclosure Type
Explosion Proof
Fl Amps
27-25/12.5
Fl Efficiency
91.7
Frame
215T
Hazardous Location
EXP PROOF CL I GR C&D CL II GR F&G T3B
Hertz
60/50
Horsepower
10
Insulation Class
F
Inverter Speed Range
Constant 2:1
Ip Code
54
Is_Motor
Yes
Kva-Code
H
Model Number
215TTGN6526
Motor Rpm 50Hz
1500
Motor Rpm 60Hz
1800
Mounting
Rigid
Nema Design
B
Opposite End Bearing
Ball
Opposite End Bearing Size
6208
Orientation
Horizontal
Phase
3
Rpm
1800
Rpm Range
1701-1800
Service Factor
1.15
Starting Type
Line or Inverter
Ul
UL Listed
Voltage
208-230/460
Weight
288
Product Overview
Marathon Motors Explosion Proof Motor, U007A, 10HP, 230/460V, 1800RPM, 3PH, EPFC
Marathon's Hazardous Duty motors are ideal for a wide variety of applications where hazardous fumes or dust may be present. The motors are available in three phase and single phase with ratings, in stock, from 1/4 HP through 300 HP.
Technical Specs
P/N: U007A Key Specs
Item
EXPLOSION PROOF MOTOR, 10HP, 230/460V, 1800RPM, 3PH, EPFC
OEM
Marathon Motors
OEM #
U007A
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
50 Hertz Fl Amps
23/11.5
50 Hertz Fl Eff
91.5
50 Hertz Hp
7.5
50 Hertz Kw
5.6
50 Hertz Rpm
1500
50 Hertz Sf
1.15
50 Hertz Voltage
190/380
60 Hertz Kw
7.46
60 Hertz Rpms
1800
Ambient Temp C
40
Assembly
F1 (F2 Modification Available)
Bearing-Drive-End
6307
Ce
N
Country of Origin
USA
Csa
N
Drive End Bearing Size
6307
Duty
Continuous
Enclosure
EPFC
Enclosure Type
Explosion Proof
Fl Amps
27-25/12.5
Fl Efficiency
91.7
Frame
215T
Hazardous Location
EXP PROOF CL I GR C&D CL II GR F&G T3B
Hertz
60/50
Horsepower
10
Insulation Class
F
Inverter Speed Range
Constant 2:1
Ip Code
54
Is_Motor
Yes
Kva-Code
H
Model Number
215TTGN6526
Motor Rpm 50Hz
1500
Motor Rpm 60Hz
1800
Mounting
Rigid
Nema Design
B
Opposite End Bearing
Ball
Opposite End Bearing Size
6208
Orientation
Horizontal
Phase
3
Rpm
1800
Rpm Range
1701-1800
Service Factor
1.15
Starting Type
Line or Inverter
Ul
UL Listed
Voltage
208-230/460
Weight
288
