OEM#: U002ANew OEM Original Outright
EXPLOSION PROOF MOTOR, 1.5HP, 208-230/460V, 1800RPM, 3PH, EPFC by Marathon Motors
Your price:
$1,417.70 each
OEM#: U002AEXPLOSION PROOF MOTOR, 1.5HP, 208-230/460V, 1800RPM, 3PH, EPFC by Marathon Motors
New OEM Original Outright
Your price:
$1,417.70 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview

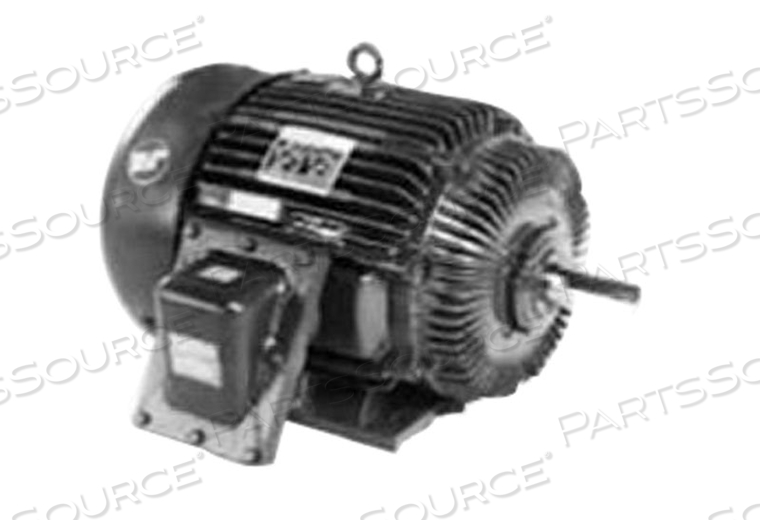

Marathon Motors Explosion Proof Motor, U002A, 1.5HP, 208-230/460V, 1800RPM, 3PH, EPFC
Marathon's Hazardous Duty motors are ideal for a wide variety of applications where hazardous fumes or dust may be present. The motors are available in three phase and single phase with ratings, in stock, from 1/4 HP through 300 HP.
Marathon's Hazardous Duty motors are ideal for a wide variety of applications where hazardous fumes or dust may be present. The motors are available in three phase and single phase with ratings, in stock, from 1/4 HP through 300 HP.
Technical Specs
P/N: U002A Key Specs
Item
EXPLOSION PROOF MOTOR, 1.5HP, 208-230/460V, 1800RPM, 3PH, EPFC
OEM
Marathon Motors
OEM #
U002A
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
50 Hertz Fl Amps
4.2/2.1
50 Hertz Fl Eff
85
50 Hertz Hp
1
50 Hertz Kw
0.75
50 Hertz Rpm
1500
50 Hertz Sf
1.15
50 Hertz Voltage
190/380
60 Hertz Kw
1.119
60 Hertz Rpms
1800
Ambient Temp C
40
Assembly
F1 Only
Bearing-Drive-End
205
Ce
N
Country of Origin
USA
Csa
N
Drive End Bearing Size
6205
Duty
Continuous
Enclosure
EPFC
Enclosure Type
Explosion Proof
Fl Amps
4.7-4.6/2.3
Fl Efficiency
86.5
Frame
145T
Hazardous Location
EXP PROOF CL I GR D CL II GR F&G T3B
Hertz
60/50
Horsepower
1 1/2
Insulation Class
F
Ip Code
54
Is_Motor
Yes
Kva-Code
M
Model Number
145TTGN6526
Motor Rpm 50Hz
1500
Motor Rpm 60Hz
1800
Mounting
Rigid
Nema Design
B
Opposite End Bearing
Ball
Opposite End Bearing Size
6203
Orientation
Horizontal
Phase
3
Rpm
1800
Rpm Range
1701-1800
Service Factor
1.15
Starting Type
Line or Inverter
Ul
UL Listed
Voltage
208-230/460
Weight
76
