OEM#: 215TTFCD6026New OEM Original Outright

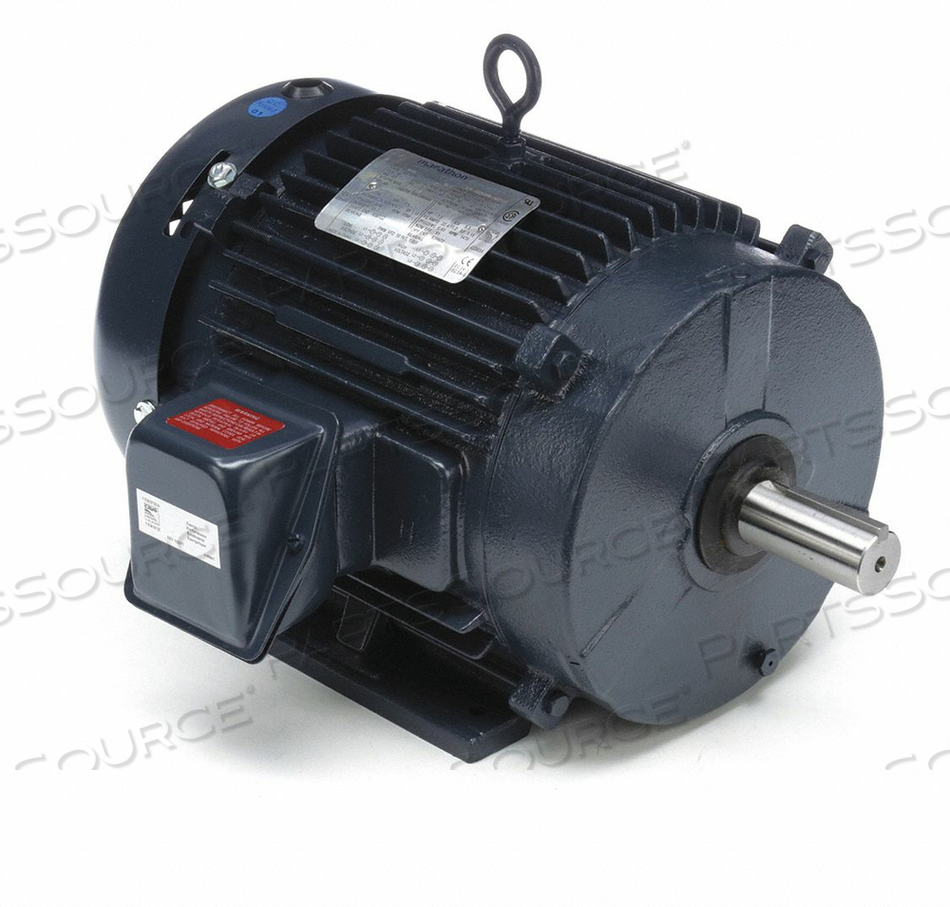

MOTOR 3-PH 10 HP 1770 RPM 230/460V by Marathon Motors
Your price:
$1,901.47 eachShip date will be provided after ordering
OEM#: 215TTFCD6026MOTOR 3-PH 10 HP 1770 RPM 230/460V by Marathon Motors
New OEM Original Outright
Your price:
$1,901.47 each
Ship date will be provided after ordering
Asset Information
ADD TO LIST
Technical Specs
P/N: 215TTFCD6026 Key Specs
Item
MOTOR 3-PH 10 HP 1770 RPM 230/460V
OEM
Marathon Motors
OEM #
215TTFCD6026
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC003A
Country of Origin
Mexico
Duty
Continuous
Frame
215T
Full Load Amps
24.4/12.2
HP
10
Hz
60/50
Includes
Conduit Box
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
16-3/8 in
Manufacturers Warranty Length
1 yr
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1770
Nominal Efficiency
92.4 %
Number of Speeds
1
Overall Length
19-3/4 in
Phase
3
Shaft Diameter
1-3/8 in
Shaft Length
3-3/8 in
Standards
UL (E49747), CSA (LR2025), CE
Voltage
230/460
