OEM#: 182TTDBD6039New OEM Original Outright

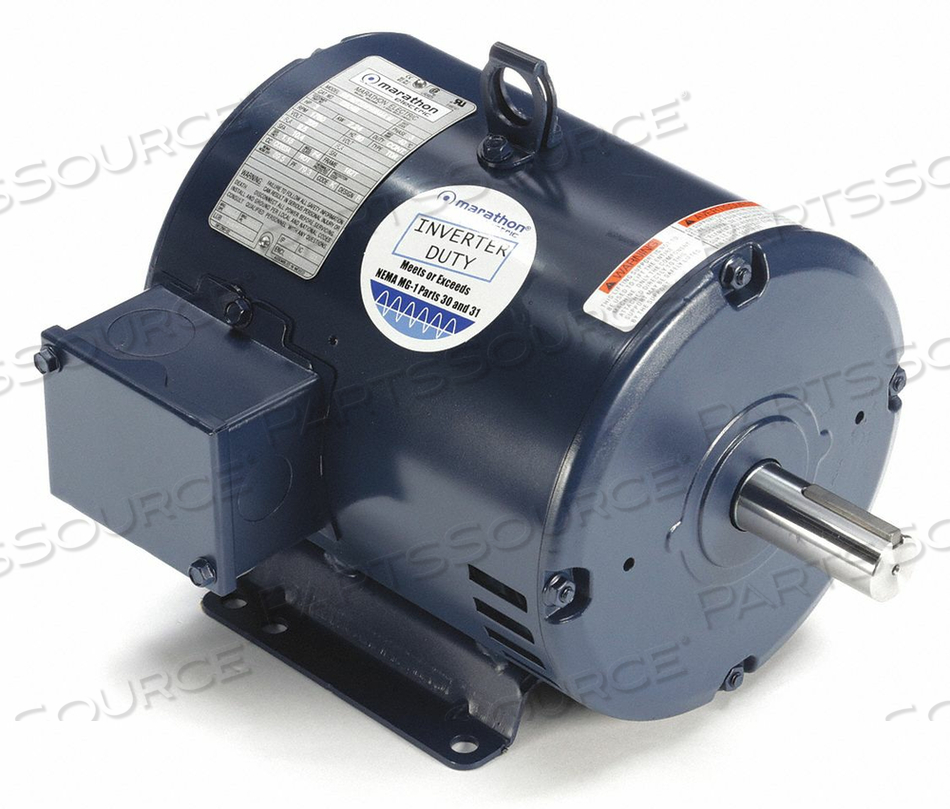

GENERAL PURPOSE MOTOR 3 HP 9.5A by Marathon Motors
Your price:
$929.35 eachShip date will be provided after ordering
OEM#: 182TTDBD6039GENERAL PURPOSE MOTOR 3 HP 9.5A by Marathon Motors
New OEM Original Outright
Your price:
$929.35 each
Ship date will be provided after ordering
Asset Information
ADD TO LIST
Technical Specs
P/N: 182TTDBD6039 Key Specs
Item
GENERAL PURPOSE MOTOR 3 HP 9.5A
OEM
Marathon Motors
OEM #
182TTDBD6039
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC003A
Country of Origin
Mexico
Duty
Continuous
Frame
182T
Full Load Amps
9.5
HP
3
Hz
60
Ins. Class
F
Inverter Rated
No
Length Less Shaft
10-3/8 in
Manufacturers Warranty Length
1 yr
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1760
Nominal Efficiency
89.5 %
Number of Speeds
1
Overall Length
13-3/16 in
Phase
3
Shaft Diameter
1-1/8 in
Shaft Length
2-13/16 in
Standards
CSA (LR2025), UL (E49747)
Voltage
200
