OEM#: 048S34S2003New OEM Original Outright

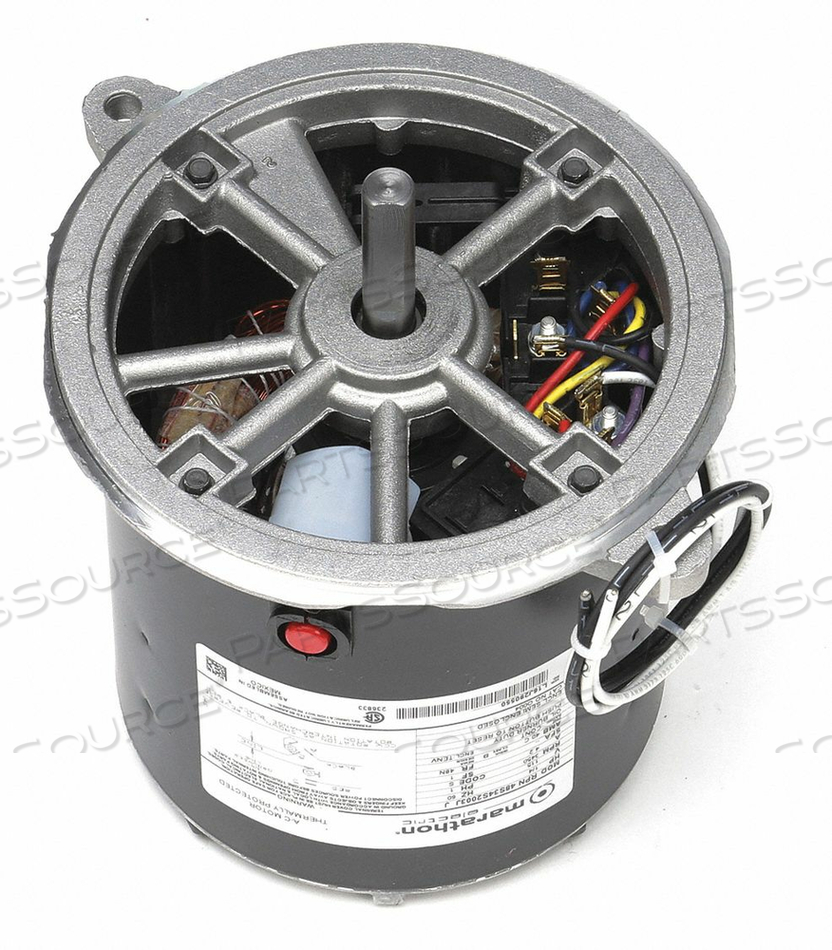

OIL BURNER MOTOR 1/4 HP 3450 RPM 115V by Marathon Motors

Your price:
$274.71 eachReady to ship
HomeMarathon Motors048s34s2003
OIL BURNER MOTOR 1/4 HP 3450 RPM 115V by Marathon Motors
OIL BURNER MOTOR 1/4 HP 3450 RPM 115V by Marathon Motors

OEM#: 048S34S2003
OIL BURNER MOTOR 1/4 HP 3450 RPM 115V by Marathon Motors

New OEM Original Outright
Your price:
$274.71 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 048S34S2003 Key Specs
Item
OIL BURNER MOTOR 1/4 HP 3450 RPM 115V
OEM
Marathon Motors
OEM #
048S34S2003
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temperature
40 Degrees C
Body Diameter
5-5/8 in
Country of Origin
Mexico
Frame
48NZ
Full Load Amps
4.2
HP
1/4 in
Hz
60
Ins. Class
B
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Sleeve
Motor Design
Split-Phase
Motor Enclosure Design
Totally Enclosed Nonventilated
Motor Flange Material
Aluminum
Motor Flange Type
Ventilated
Motor Mounting Type
Face
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Oil Burner
Motor Thermal Protection
Manual
Nameplate RPM
3450
Phase
1
Shaft Diameter
1/2 in
Shaft Length
2 in
Standards
UL (E6312), CSA (LR2025), CE Listed
Voltage
115
Voltage Compatibility
115, 115/208-230, 115/230, 120, 120/240
