OEM#: 48-4007

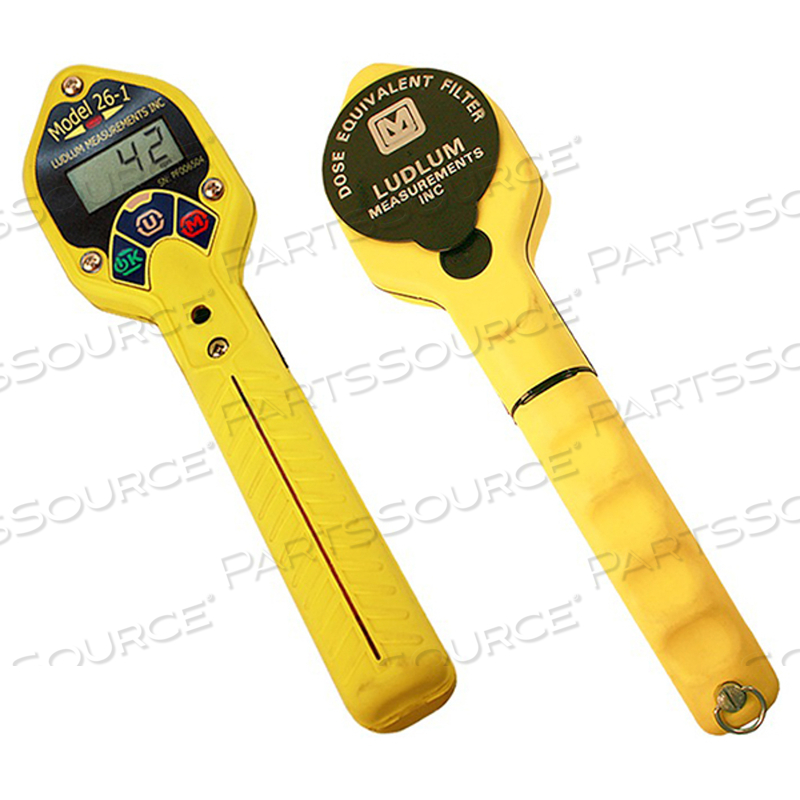

MODEL 26-1 SERIES INTEGRATED FRISKER WITH DOSE FILTER by Ludlum Measurements

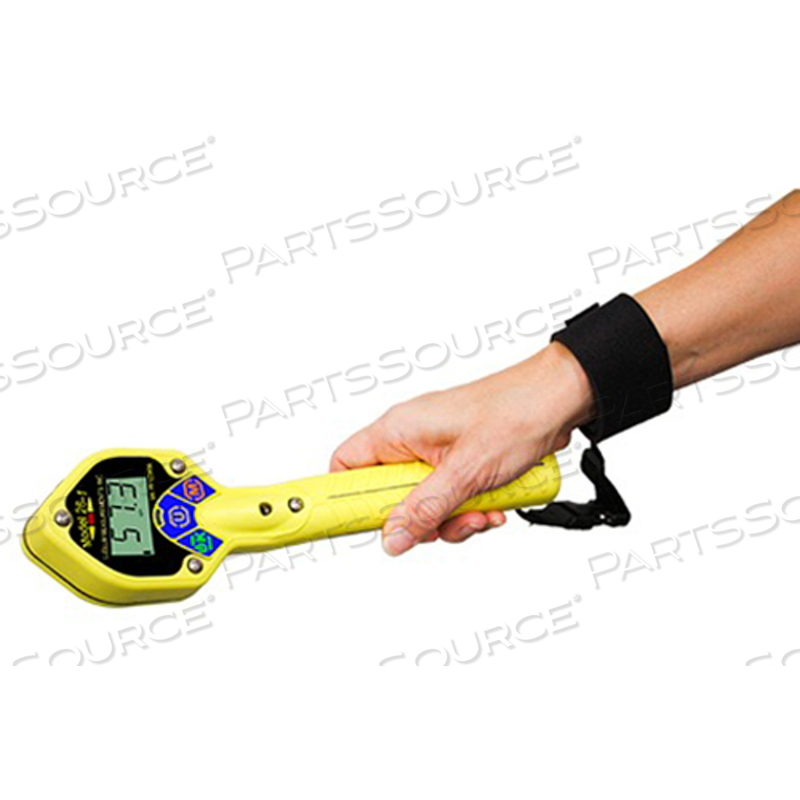

The Model 26-1 Integrated Frisker is designed to simplify the process of detecting radioactive contamination on people and objects. Unlike other meter and detector combinations that require two-handed operation, this instrument combines the meter electronics and detector in a single, easy-to-use tool. Its design incorporates a 15.51 cm2 (2.4 in2) GM pancake detector, an easy-to-read LCD screen, an ergonomic handle, and a simple three-button interface to allow one-handed operation. Three modes of operation are available — RATE, MAX, and COUNT — which can be selected by pressing the MODE button. RATE mode displays the current count, exposure, or activity rate. MAX mode captures the highest count, exposure, or activity rate detected; this is useful for finding a peak rate or for frisking when the display is not visible. COUNT mode allows the operator to perform a survey for a preset amount of time; depending on the chosen units, the count result can be a scaler count, a time-averaged rate, a time-averaged exposure or dose rate, or an integrated exposure or dose. Measurements can be displayed in units of cps, cpm, dpm, Bq, mR/h, or μSv/h. The user can switch between two sets of chosen units (primary and secondary) for RATE and MAX modes by pressing the UNITS button. Other features include an auto-ranging and backlit LCD screen, “click” audio (which can be silenced), and user-settable count rate and scaler alarms. The instrument body is made of high impact plastic and water-resistant construction allows the instrument to be used outdoors. A wrist strap and lanyard are included for keeping the instrument close and secure. The instrument is powered by two alkaline AA batteries with a battery life up to 1000 hours. Ambient Dose Equivalent Filter The GM pancake detector has a significant over-response to gamma energies between 20 - 150 keV, which produces dose measurement errors. Ludlum offers an ambient dose equivalent filter that flattens the detector’s energy response to within ± 20% referenced to 137Cs (662 keV) over the energy range of 20 keV to 1.2 MeV. The filter simply snaps on over the detector window when dose measurements are required, and is easily removed when not needed. The dose filter is included with the Model 26-1DOSE (PN 48-4007), or it is available separately as an option (PN 2002-1050).

• Integrated, Lightweight Ergonomic Design
• Includes Wrist Strap, Detector Cover & Lanyard
• High-Impact Plastic with Water-Resistant Rubber Seals

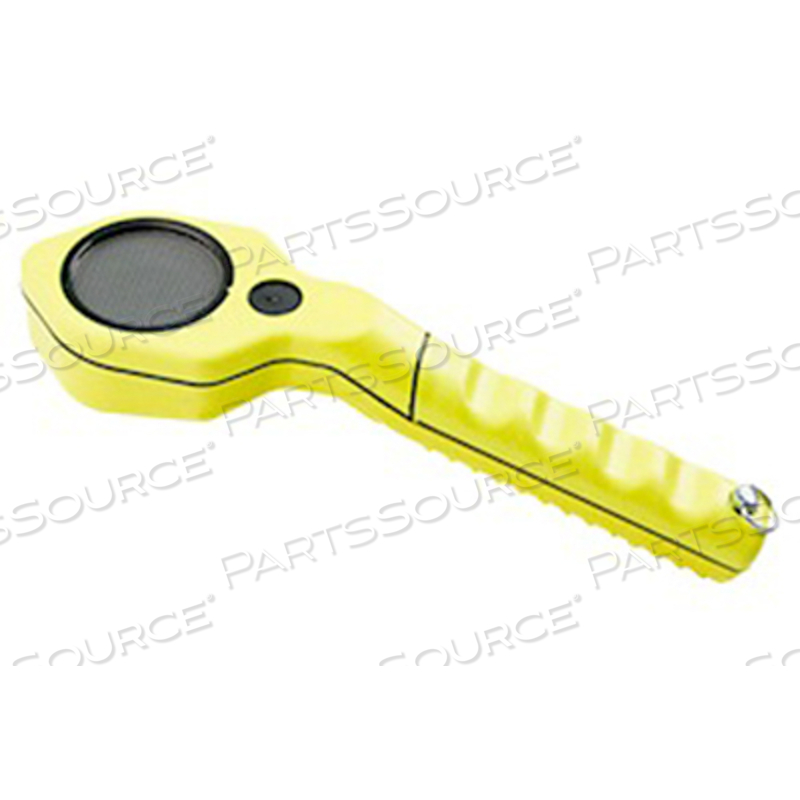

• Employs Standard 15.51 cm2 GM Pancake Detector
• Displays in mR/hr, µSv/h, dpm, Bq, cpm, or cps
• Dead-Time Correction (DTC) Allows Gamma Measurements Up to 500 mR/hr or Up to 1999 µSv/h
• Simple Three-Button Operation
• Count Rate, Exposure, Dose, and Counting Alarms
• Automatic Display Backlight
• Bright Red, Flashing Alarm LED

The Model 26-1 Integrated Frisker is designed to simplify the process of detecting radioactive contamination on people and objects. Unlike other meter and detector combinations that require two-handed operation, this instrument combines the meter electronics and detector in a single, easy-to-use tool. Its design incorporates a 15.51 cm2 (2.4 in2) GM pancake detector, an easy-to-read LCD screen, an ergonomic handle, and a simple three-button interface to allow one-handed operation. Three modes of operation are available — RATE, MAX, and COUNT — which can be selected by pressing the MODE button. RATE mode displays the current count, exposure, or activity rate. MAX mode captures the highest count, exposure, or activity rate detected; this is useful for finding a peak rate or for frisking when the display is not visible. COUNT mode allows the operator to perform a survey for a preset amount of time; depending on the chosen units, the count result can be a scaler count, a time-averaged rate, a time-averaged exposure or dose rate, or an integrated exposure or dose. Measurements can be displayed in units of cps, cpm, dpm, Bq, mR/h, or μSv/h. The user can switch between two sets of chosen units (primary and secondary) for RATE and MAX modes by pressing the UNITS button. Other features include an auto-ranging and backlit LCD screen, “click” audio (which can be silenced), and user-settable count rate and scaler alarms. The instrument body is made of high impact plastic and water-resistant construction allows the instrument to be used outdoors. A wrist strap and lanyard are included for keeping the instrument close and secure. The instrument is powered by two alkaline AA batteries with a battery life up to 1000 hours. Ambient Dose Equivalent Filter The GM pancake detector has a significant over-response to gamma energies between 20 - 150 keV, which produces dose measurement errors. Ludlum offers an ambient dose equivalent filter that flattens the detector’s energy response to within ± 20% referenced to 137Cs (662 keV) over the energy range of 20 keV to 1.2 MeV. The filter simply snaps on over the detector window when dose measurements are required, and is easily removed when not needed. The dose filter is included with the Model 26-1DOSE (PN 48-4007), or it is available separately as an option (PN 2002-1050).
